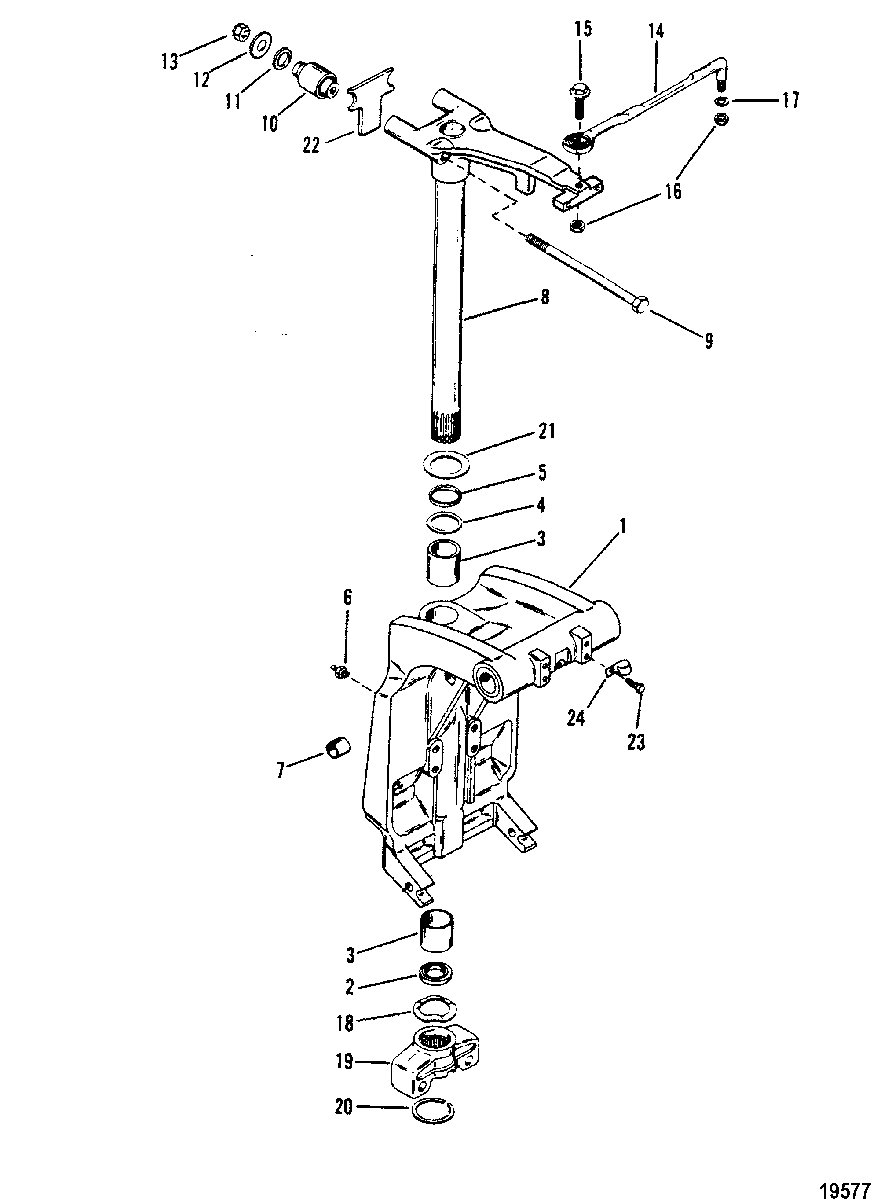

Swivel Bracket(Casting #1499-8710-6) для Mercury - V-175 0C239553 THRU 0D081999
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (BLACK)SWIVEL BRACKET ASSEMBLY (BLACK)
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (GRAY)SWIVEL BRACKET ASSEMBLY (GRAY)
-
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET-LOWER AND UPPERBUSHING, SWIVEL BRACKET-LOWER AND UPPER
-
425-33466 O-RING, UPPERO-RING, UPPER
-
523-67668 SPACER, UPPERSPACER, UPPER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
817-8M0132731 SWIVEL PIN AND STEERING ARM (BLACK)SWIVEL PIN AND STEERING ARM (BLACK)
-
817-8M0132731 SWIVEL PIN AND STEERING ARM (GRAY)SWIVEL PIN AND STEERING ARM (GRAY)
-
910-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
-
1077326 MOUNT, RUBBER-UPPER (LONG)MOUNT, RUBBER-UPPER (LONG)
-
1077326 MOUNT (X-LONG) (USE ON XR4/MAGNUM II)MOUNT (X-LONG) (USE ON XR4/MAGNUM II)
-
1112-66921 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-78688 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20), UPPER MOUNT BOLTNUT, (.437-20), UPPER MOUNT BOLT
-
1492876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
1510-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARMSCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
-
1611-8M0042636 NUT, (.375-24), STEERING LINK SCREWNUT, (.375-24), STEERING LINK SCREW
-
1712-34931 WASHER, (.406 x .734 x .063) SS, STEERING LINK TO STEERING ARMWASHER, (.406 x .734 x .063) SS, STEERING LINK TO STEERING ARM
-
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
19878182T01 BOTTOM YOKE (BLACK)BOTTOM YOKE (BLACK)
-
19878182T01 BOTTOM YOKE (GRAY)BOTTOM YOKE (GRAY)
-
2053-67684 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
2112-67670 WASHERWASHER
-
2288882 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
2310-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
-
2454-54457 J CLIPJ CLIP
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
