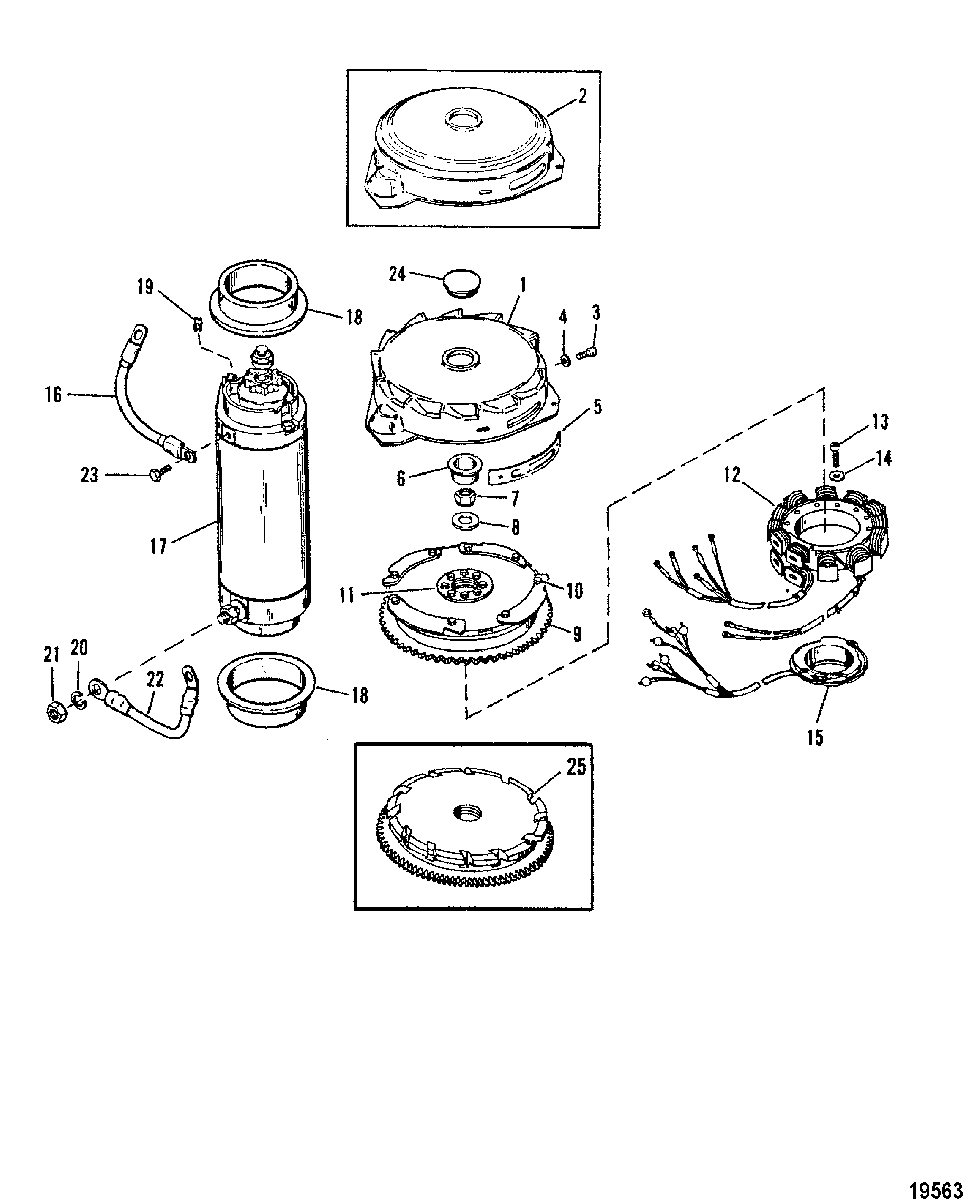

Flywheel/Starter Motor для Mercury - V-175 0C239553 THRU 0D081999
-
№АртикулНазвание
-
118896A1 COVER KIT, FLYWHEELCOVER KIT, FLYWHEEL
-
279918A1 COVER KIT (NON-LOUVERED)COVER KIT (NON-LOUVERED)
-
310-37572 SCREW, (.190-32 x .380), TIMING MARKERSCREW, (.190-32 x .380), TIMING MARKER
-
412-72761 WASHER, TIMING MARKER SCREWWASHER, TIMING MARKER SCREW
-
579022 MARKER, TIMINGMARKER, TIMING
-
619-45907 PLUG, (Yellow), FLYWHEELPLUG, (Yellow), FLYWHEEL
-
711-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
812-33001 WASHER, FLYWHEELWASHER, FLYWHEEL
-
9271-859238T16 FLYWHEEL (USE WITH REF. NO. 1)
(WITH SCREWS)FLYWHEEL (USE WITH REF. NO. 1)
(WITH SCREWS) -
9271-859238A9 FLYWHEEL (USE WITH REF. NO. 2)
(WITH SCREWS)FLYWHEEL (USE WITH REF. NO. 2)
(WITH SCREWS) -
1010-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATE
(WITH SCREWS)SCREW, (.250-28 x .625), FLYWHEEL PLATE
(WITH SCREWS) -
1110-68997 SCREW, (.3125-24 X .75), FLYWHEEL HUB
(WITH SCREWS)SCREW, (.3125-24 X .75), FLYWHEEL HUB
(WITH SCREWS) -
12398-9610A5 STATOR (40 AMP)
(USE WITH REF. NO. 1)STATOR (40 AMP)
(USE WITH REF. NO. 1) -
12398-5454A35 STATOR (16 AMP)
(USE WITH REF. NO. 2 & 9)STATOR (16 AMP)
(USE WITH REF. NO. 2 & 9) -
12398-9873A4 STATOR (16 AMP - SEE NOTE)
(USE WITH REF. NO. 2 & 25)(398-9873A4 STATOR IS INCLUDED WITH 271-817632A9 FLYWHEEL)STATOR (16 AMP - SEE NOTE)
(USE WITH REF. NO. 2 & 25)(398-9873A4 STATOR IS INCLUDED WITH 271-817632A9 FLYWHEEL) -
1310-90045 SCREW, (#10-32 x 1.375), STATOR
(USE WITH REF. NO. 1)SCREW, (#10-32 x 1.375), STATOR
(USE WITH REF. NO. 1) -
1310-90028 SCREW, STATOR
(USE WITH REF. NO. 2 & 9)SCREW, STATOR
(USE WITH REF. NO. 2 & 9) -
1310-817044 SCREW
(USE WITH REF. NO. 2 & 25)SCREW
(USE WITH REF. NO. 2 & 25) -
1413-26996 LOCKWASHER, (#10), STATOR SCREW
(USE WITH REF. NO. 1)LOCKWASHER, (#10), STATOR SCREW
(USE WITH REF. NO. 1) -
1413-26996 LOCKWASHER, (#10)
(USE WITH REF. NO. 2 & 25)LOCKWASHER, (#10)
(USE WITH REF. NO. 2 & 25) -
1596455A9 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1684-93388A1 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1750-893893 STARTER MOTORSTARTER MOTOR
-
1823-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
198M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
2013-26992 LOCKWASHER, (.250), STARTER MOTOR TERMINALLOCKWASHER, (.250), STARTER MOTOR TERMINAL
-
2111-20890 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
-
2284-93388A14 WIRE, (Black)WIRE, (Black)
-
2310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) SS, CABLE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) SS, CABLE TO STARTER MOTOR
-
2419-89219001 PLUGPLUG
-
25271-859238T16 FLYWHEEL (USE WITH REF. NO. 1)
(WITHOUT SCREWS)FLYWHEEL (USE WITH REF. NO. 1)
(WITHOUT SCREWS) -
25271-859238A9 FLYWHEEL (USE WITH REF. NO. 2)
(WITHOUT SCREWS)FLYWHEEL (USE WITH REF. NO. 2)
(WITHOUT SCREWS)
