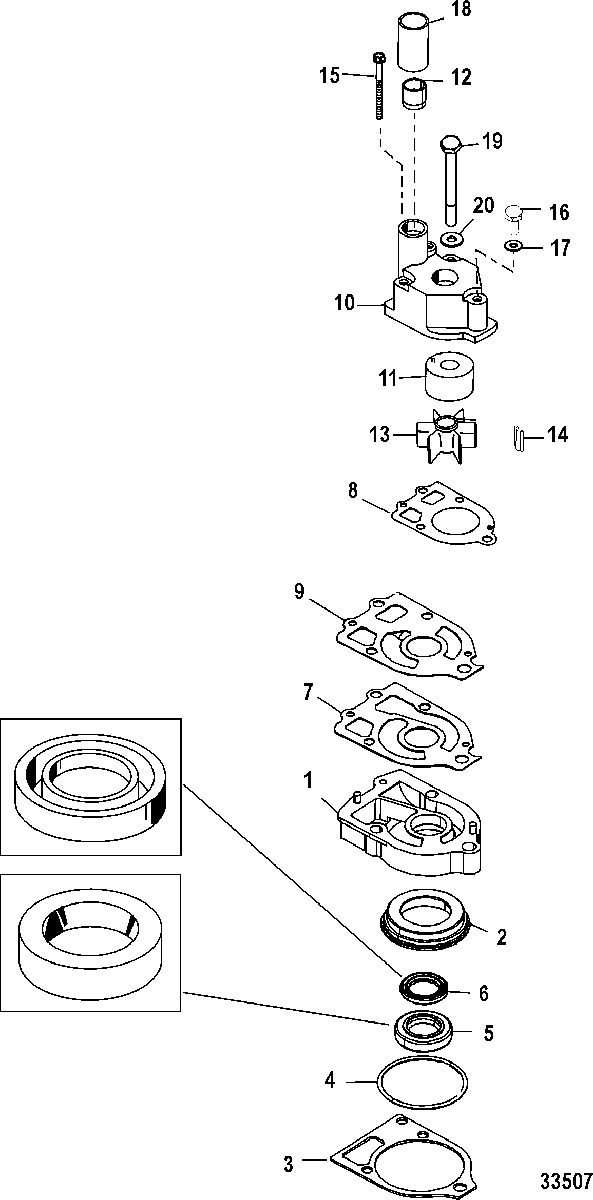

Water Pump Kit, Jet для Mercury - V-175 DFI (2.5L) 1B417702 & Up

  • №
    Артикул
    Название
  • -
    46-8M0077148 PUMP KIT, Water
    PUMP KIT, Water
  • 1
    46-8M0077147 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 2
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 3
    27-426311 GASKET
    GASKET
  • 4
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 5
    26-89238 SEAL, Oil
    SEAL, Oil
  • 6
    26-16977 SEAL, Oil
    SEAL, Oil
  • 7
    27-8M0090319 GASKET
    GASKET
  • 8
    27-858524 GASKET
    GASKET
  • 9
    324351 FACE PLATE
    FACE PLATE
  • 10
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 11
    48752T INSERT
    INSERT
  • 12
    26-38970 SEAL
    SEAL
  • 13
    47-89984T3 IMPELLER
    IMPELLER
  • 14
    28-8M0032834 KEY
    KEY
  • 15
    10-96411 SCREW, (#14-8 x 2.25)
    SCREW, (#14-8 x 2.25)
  • 16
    10-19924275 SCREW, (.312-18 x 2.75)
    SCREW, (.312-18 x 2.75)
  • 17
    12-36001 WASHER
    WASHER
  • 18
    23-29804T SLEEVE
    SLEEVE
  • 19
    10-35049 SCREW, (.250-20 x 2.75)
    SCREW, (.250-20 x 2.75)
  • 20
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 21
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    Mounting hardware
    WASHER, (.453 x .812 x .105) Stainless Steel
    Mounting hardware
  • 22
    11-34933 NUT, (.437-20) Stainless Steel
    Mounting hardware
    NUT, (.437-20) Stainless Steel
    Mounting hardware
