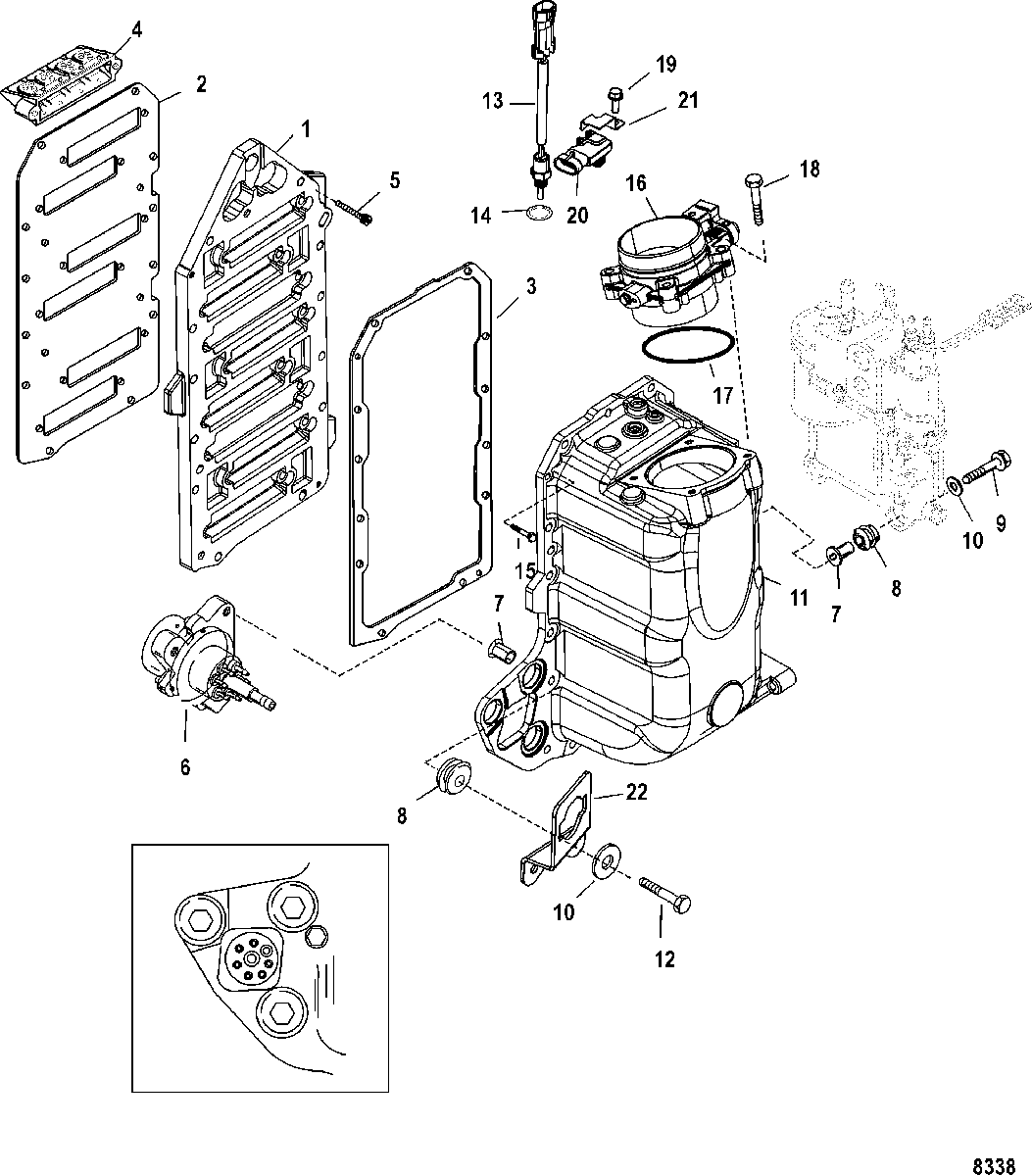

Air Handler Components для Mercury - V-175 DFI (2.5L) 1B417702 & Up

  • №
    Артикул
    Название
  • -
    855633T33 AIR HANDLER ASSEMBLY
    AIR HANDLER ASSEMBLY
  • 1
    855420A1 ADAPTOR PLATE KIT
    ADAPTOR PLATE KIT
  • 2
    27-146973 GASKET
    GASKET
  • 3
    27-8500581 GASKET
    GASKET
  • 4
    855952T3 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 5
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 6
    8M0128080 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 7
    23-855364 BUSHING
    BUSHING
  • 8
    25-855362001 GROMMET
    GROMMET
  • 9
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 11
    850248A2 PLENUM KIT, Air
    PLENUM KIT, Air
  • 12
    10-81893430 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 13
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 14
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 15
    10-883942 SCREW, (M4 x 16)
    SCREW, (M4 x 16)
  • 16
    855422A1 THROTTLE BODY KIT
    THROTTLE BODY KIT
  • 17
    25-855423 O-RING
    O-RING
  • 18
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 19
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 20
    854445 SENSOR, MAP
    SENSOR, MAP
  • 21
    884522 BRACKET, MAP Sensor
    BRACKET, MAP Sensor
  • 22
    892296 BRACKET
    BRACKET
  • -
    879808T07 POWERHEAD ASSEMBLY
    135/150/Jet 110
    POWERHEAD ASSEMBLY
    135/150/Jet 110
  • -
    879809T07 POWERHEAD ASSEMBLY
    175
    POWERHEAD ASSEMBLY
    175
