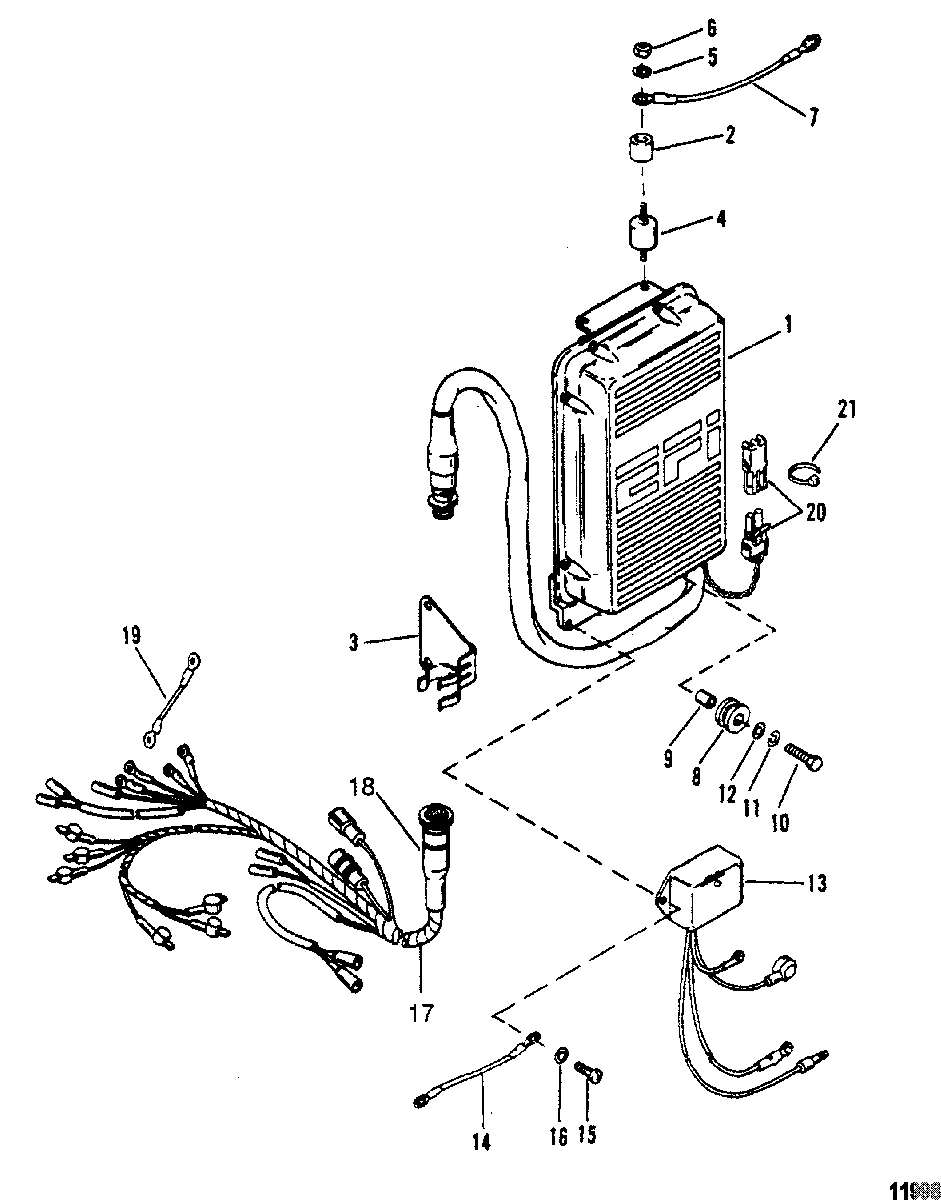

Electronic Control Unit Assembly для Mercury - V-150XRI (EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
1824003T04 ECU, Engine Control Unit (150)ECU, Engine Control Unit (150)
-
1824003T02 ECU, Engine Control Unit (175)ECU, Engine Control Unit (175)
-
1824003T01 ECU, Engine Control Unit (200)ECU, Engine Control Unit (200)
-
223-34948 SPACERSPACER
-
354-146951 CLIPCLIP
-
490435 MOUNT, Cowl Mounting BracketMOUNT, Cowl Mounting Bracket
-
512-21249 WASHERWASHER
-
611-8267089 NUT, (.250-28)NUT, (.250-28)
-
784-88807A19 CABLE ASSEMBLYCABLE ASSEMBLY
-
814637 GROMMETGROMMET
-
923-14636 BUSHINGBUSHING
-
1010-28667 SCREW, (.250-20 x 1.00) Stainless SteelSCREW, (.250-20 x 1.00) Stainless Steel
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1313202A2 MODULE ASSEMBLY, Water SensorMODULE ASSEMBLY, Water Sensor
-
1484-88807A18 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1510-37571 SCREW, (.190-32 x .500)SCREW, (.190-32 x .500)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1784-98866A14 HARNESS ASSEMBLY, Electronic Control Unit And InjectorsHARNESS ASSEMBLY, Electronic Control Unit And Injectors
-
18190491 COUPLE RINGCOUPLE RING
-
1984-87895A4 CABLE ASSEMBLY (150/175)CABLE ASSEMBLY (150/175)
-
20832948A1 CAVITY PLUGCAVITY PLUG
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
