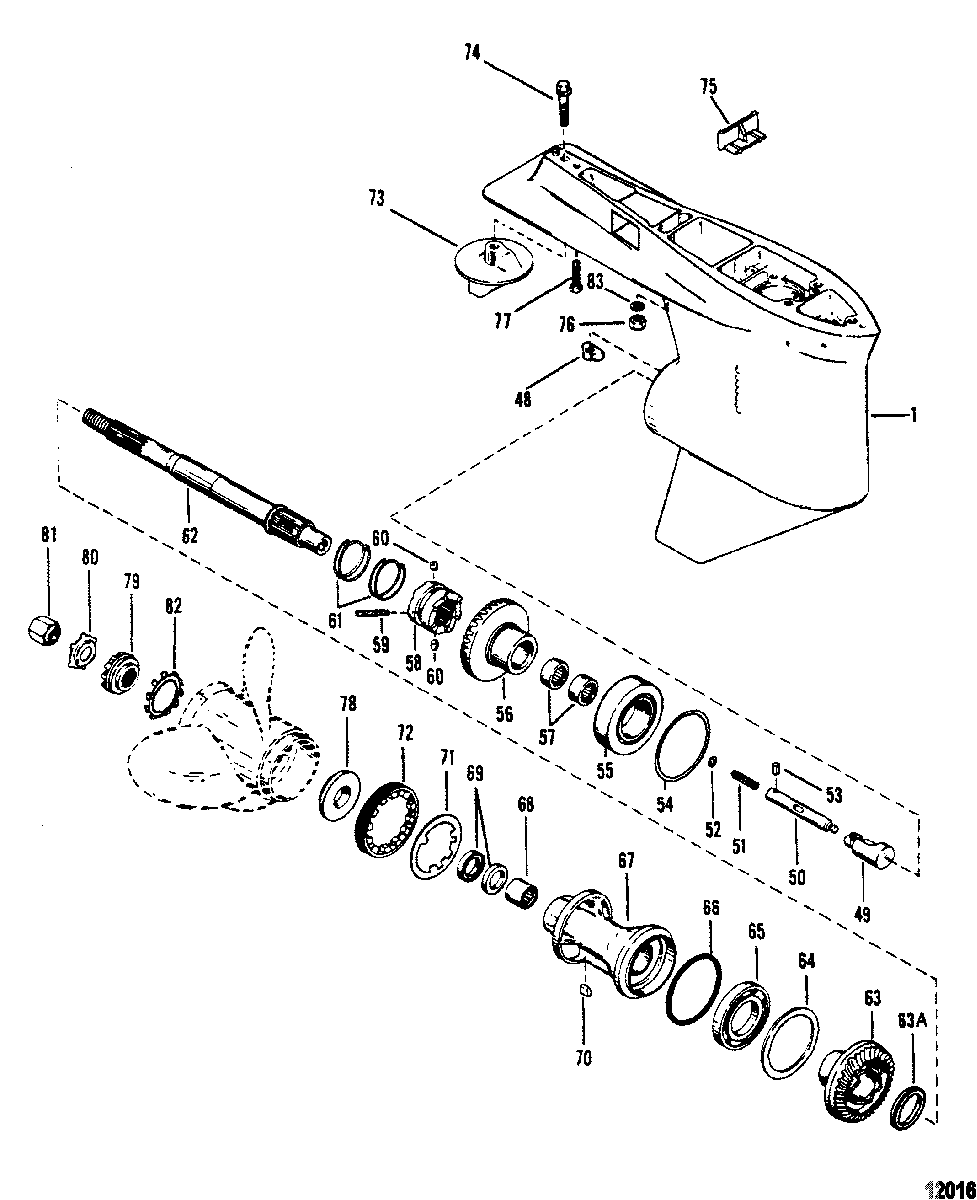

Gear Housing, Propshaft-1.87:1 Gear Ratio 4.75 Inch Dia для Mercury - V-150XRI (EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-
11647-9148T47 GEAR HOUSING ASSEMBLY, Basic Black
(Design I With Out Anodes)GEAR HOUSING ASSEMBLY, Basic Black
(Design I With Out Anodes) -
11647-9148T47 GEAR HOUSING ASSEMBLY, Basic Gray
(Design I With Out Anodes)GEAR HOUSING ASSEMBLY, Basic Gray
(Design I With Out Anodes) -
11647-9148T49 GEAR HOUSING ASSEMBLY, Basic Tracker
(Design I With Out Anodes)GEAR HOUSING ASSEMBLY, Basic Tracker
(Design I With Out Anodes) -
11647-9148T47 GEAR HOUSING ASSEMBLY, Basic Black
(Design II With Anodes)GEAR HOUSING ASSEMBLY, Basic Black
(Design II With Anodes) -
11647-9148T47 GEAR HOUSING ASSEMBLY, Basic Gray
(Design II With Anodes)GEAR HOUSING ASSEMBLY, Basic Gray
(Design II With Anodes) -
11647-9148T49 GEAR HOUSING ASSEMBLY, Basic Tracker
(Design II With Anodes)GEAR HOUSING ASSEMBLY, Basic Tracker
(Design II With Anodes) -
48789562 SHIFT CAMSHIFT CAM
-
4989594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
5079911A1 RODROD
-
5124-79910 SPRINGSPRING
-
5212-78910 WASHERWASHER
-
5317-8M0084245 PINPIN
-
5415-47397A1 SHIM SETSHIM SET
-
5531-78172A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
5643-44104T2 GEAR ASSEMBLY, Forward (Includes Reverse Gear)
SN# G052417 & BelowGEAR ASSEMBLY, Forward (Includes Reverse Gear)
SN# G052417 & Below -
5643-44104A8 GEAR SET (Does Not Include Reverse Gear)
SN# G052418 & UpGEAR SET (Does Not Include Reverse Gear)
SN# G052418 & Up -
5731-549281 BEARING, RollerBEARING, Roller
-
5852-8M0100493 CLUTCHCLUTCH
-
5917-8M0084243 PIN, CrossPIN, Cross
-
6017-78909 PIN, DetentPIN, Detent
-
6124-78962 SPRINGSPRING
-
6244-94148 PROPELLER SHAFTPROPELLER SHAFT
-
6343-824986A2 GEAR ASSEMBLY, Reverse
SN# G052418 & UpGEAR ASSEMBLY, Reverse
SN# G052418 & Up -
63A23-824108 SPACERSPACER
-
64681001 RING, ThrustRING, Thrust
-
6530-88957T BEARING, BallBEARING, Ball
-
6625-31534 O-RINGO-RING
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-26-89238A2 SEAL KITSEAL KIT
-
6743567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-30956T BEARING, NeedleBEARING, Needle
-
6926-76868 SEALSEAL
-
7028-30281 KEYKEY
-
7114-79447 TAB WASHERTAB WASHER
-
728M2000347 RETAINERRETAINER
-
7397-31640Q4 TRIM TAB (Use With Gear Housing With Out Anodes)TRIM TAB (Use With Gear Housing With Out Anodes)
-
7331640T07 TRIM TAB (Use With Gear Housing With Anodes)TRIM TAB (Use With Gear Housing With Anodes)
-
7410-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
758M0039169 FILLER BLOCKFILLER BLOCK
-
7611-34933 NUT, (.437-20) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)NUT, (.437-20) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7710-65210 SCREW, (.375-16 x 1.00)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)SCREW, (.375-16 x 1.00)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7812-835467Q01 THRUST HUB
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)THRUST HUB
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7912-31211Q03 WASHER, Splined
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)WASHER, Splined
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8014-816629Q TAB WASHER
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)TAB WASHER
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8111-52707Q1 PROP NUT KIT, (.750-16)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)PROP NUT KIT, (.750-16)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8213-423511 LOCKWASHER, Toothed
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)LOCKWASHER, Toothed
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8312-45176 WASHER, (.453 x .812 x .105) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)WASHER, (.453 x .812 x .105) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
-26-89238A2 SEAL KITSEAL KIT
