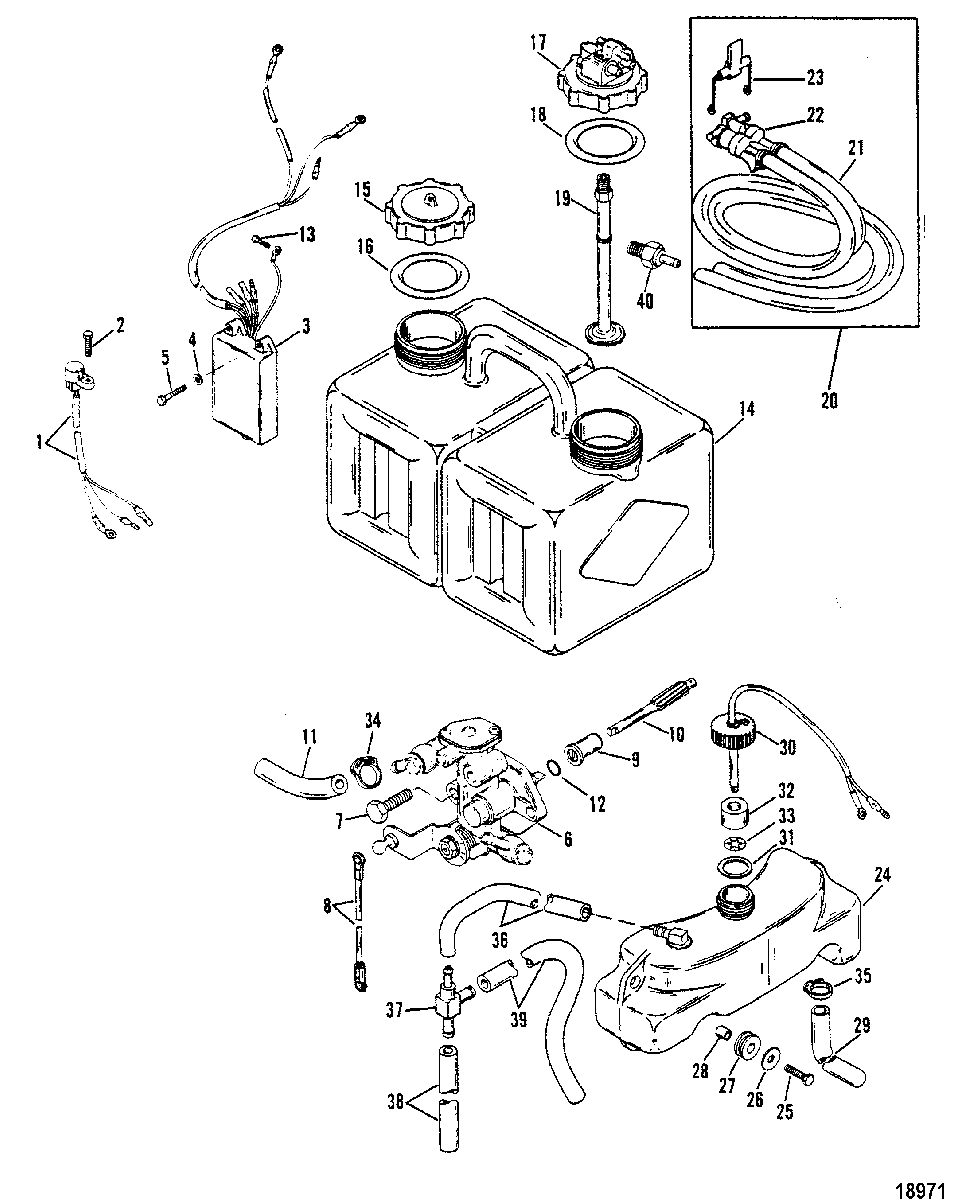

Oil Injection Components для Mercury - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625), SENSOR ATTACHINGSCREW, (#10-16 x .625), SENSOR ATTACHING
-
341470A26 WARNING MODULE ASSEMBLYWARNING MODULE ASSEMBLY
-
412-38833 WASHER, WARNING MODULE SCREWWASHER, WARNING MODULE SCREW
-
510-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
6815698T OIL PUMPOIL PUMP
-
710-32228 SCREW, (#10-32 x .625), OIL PUMP TO CRANKCASESCREW, (#10-32 x .625), OIL PUMP TO CRANKCASE
-
710-41507 SCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASESCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASE
-
8193856 LINK, THROTTLE LEVER TO OIL PUMPLINK, THROTTLE LEVER TO OIL PUMP
-
923-41429A2 BEARING ASSEMBLY, DRIVE GEARBEARING ASSEMBLY, DRIVE GEAR
-
1043-14563 DRIVEN GEARDRIVEN GEAR
-
1132-82381335 TUBING, OIL PUMP TO TEETUBING, OIL PUMP TO TEE
-
1225-11379 O-RING, OIL PUMPO-RING, OIL PUMP
-
1310-42813 SCREW, WARNING MODULE LEADSCREW, WARNING MODULE LEAD
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLY, OIL TANKCAP ASSEMBLY, OIL TANK
-
1625-11332 O-RING, OIL PUMPO-RING, OIL PUMP
-
17816190A4 ADAPTOR HOUSING ASSEMBLYADAPTOR HOUSING ASSEMBLY
-
1825-11332 O-RING, CAPO-RING, CAP
-
1932-99802 TUBE, OIL PICK-UPTUBE, OIL PICK-UP
-
20NLA No Longer Available, Quick Disconnect Kit (Order parts separately)No Longer Available, Quick Disconnect Kit (Order parts separately)
-
2132-99439 HOSE, (114.00 Inches), OILHOSE, (114.00 Inches), OIL
-
2212540A3 HOUSINGHOUSING
-
2312242A1 LATCHLATCH
-
24994436 OIL RESERVOIROIL RESERVOIR
-
2510-690201 SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHINGSCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
-
2612-42118 WASHER, OIL RESERVOIR SCREWWASHER, OIL RESERVOIR SCREW
-
2725-42117 GROMMET, OIL RESERVOIR SCREWGROMMET, OIL RESERVOIR SCREW
-
2823-42116 BUSHING, OIL RESERVOIR SCREWBUSHING, OIL RESERVOIR SCREW
-
2932-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
-
3036-43300A9 CAP ASSEMBLY, OIL RESERVOIRCAP ASSEMBLY, OIL RESERVOIR
-
3127-43307T GASKET, RESERVOIR CAPGASKET, RESERVOIR CAP
-
3299022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3311-99265 PUSHNUTPUSHNUT
-
3454-415821 CLAMP, OIL HOSE (SMALL)CLAMP, OIL HOSE (SMALL)
-
3554-415823 CLAMP, OIL HOSE (LARGE)CLAMP, OIL HOSE (LARGE)
-
3632-8M0108355 FUEL LINE, (57.00 Inches Bulk), OILFUEL LINE, (57.00 Inches Bulk), OIL
-
3722-42425 TEE, OIL TUBINGTEE, OIL TUBING
-
3832-9072925 HOSE, OIL (6-3/4")HOSE, OIL (6-3/4")
-
3932-8M0108355 FUEL LINE, (57.00 Inches Bulk)FUEL LINE, (57.00 Inches Bulk)
-
4021-8781051 FITTING, CHECK VALVE (CRANKCASE)FITTING, CHECK VALVE (CRANKCASE)
