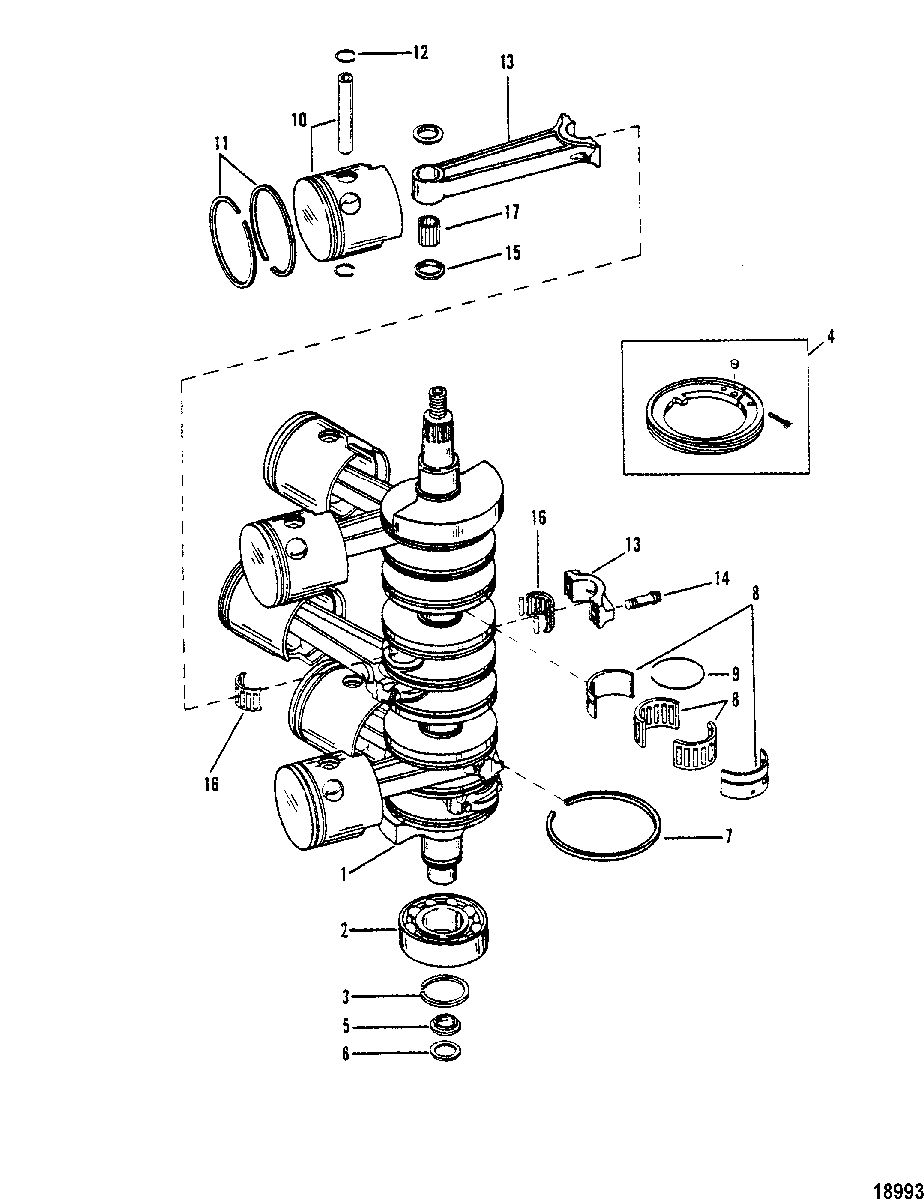

Crankshaft, Pistons and Connecting Rods для Mercury - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
1455-8745T5 CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)
-
230-67923T BEARING, Ball, CRANKSHAFT (LOWER)BEARING, Ball, CRANKSHAFT (LOWER)
-
353-67446 RING, BALL BEARINGRING, BALL BEARING
-
443-99727A1 DRIVE GEARDRIVE GEAR
-
554196A6 CARRIER ASSEMBLY, SEALCARRIER ASSEMBLY, SEAL
-
665800 PACKING, CARRIERPACKING, CARRIER
-
739-67377T RING, SEALING - CRANKSHAFT (.124 THICK)RING, SEALING - CRANKSHAFT (.124 THICK)
-
739-78633 RING, SEALING - CRANKSHAFT (.139 THICK)RING, SEALING - CRANKSHAFT (.139 THICK)
-
831-93495T ROLLER BEARING, CRANKSHAFTROLLER BEARING, CRANKSHAFT
-
953-67444 RETAINING RING, BEARINGRETAINING RING, BEARING
-
10765-7441T36 PISTON (STARBOARD) - STANDARDPISTON (STARBOARD) - STANDARD
-
10765-7443A12 PISTON (STARBOARD) - .015 OVERSIZEPISTON (STARBOARD) - .015 OVERSIZE
-
10765-7445A12 PISTON (STARBOARD) - .030 OVERSIZEPISTON (STARBOARD) - .030 OVERSIZE
-
10765-7442T36 PISTON (PORT) - STANDARDPISTON (PORT) - STANDARD
-
10765-7444A12 PISTON (PORT) - .015 OVERSIZEPISTON (PORT) - .015 OVERSIZE
-
10765-7446T12 PISTON (PORT) - .030 OVERSIZEPISTON (PORT) - .030 OVERSIZE
-
1139-93481A12 PISTON RING (STANDARD)PISTON RING (STANDARD)
-
1139-78918A4 PISTON RING (.015 Oversize)PISTON RING (.015 Oversize)
-
1139-85636A4 PISTON RING (.030 OVERSIZE)PISTON RING (.030 OVERSIZE)
-
1253-857196 RING, Lock, PISTONRING, Lock, PISTON
-
13636-8119A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-93886 SCREW, (.3125-28 X .875), CONNECTING RODSCREW, (.3125-28 X .875), CONNECTING ROD
-
1512-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
1631-8M0045428 ROLLER BEARING ASSEMBLYROLLER BEARING ASSEMBLY
-
1729-67483 NEEDLE BEARING, PISTON ENDNEEDLE BEARING, PISTON END
-
-27-90484A88 GASKET SETGASKET SET
