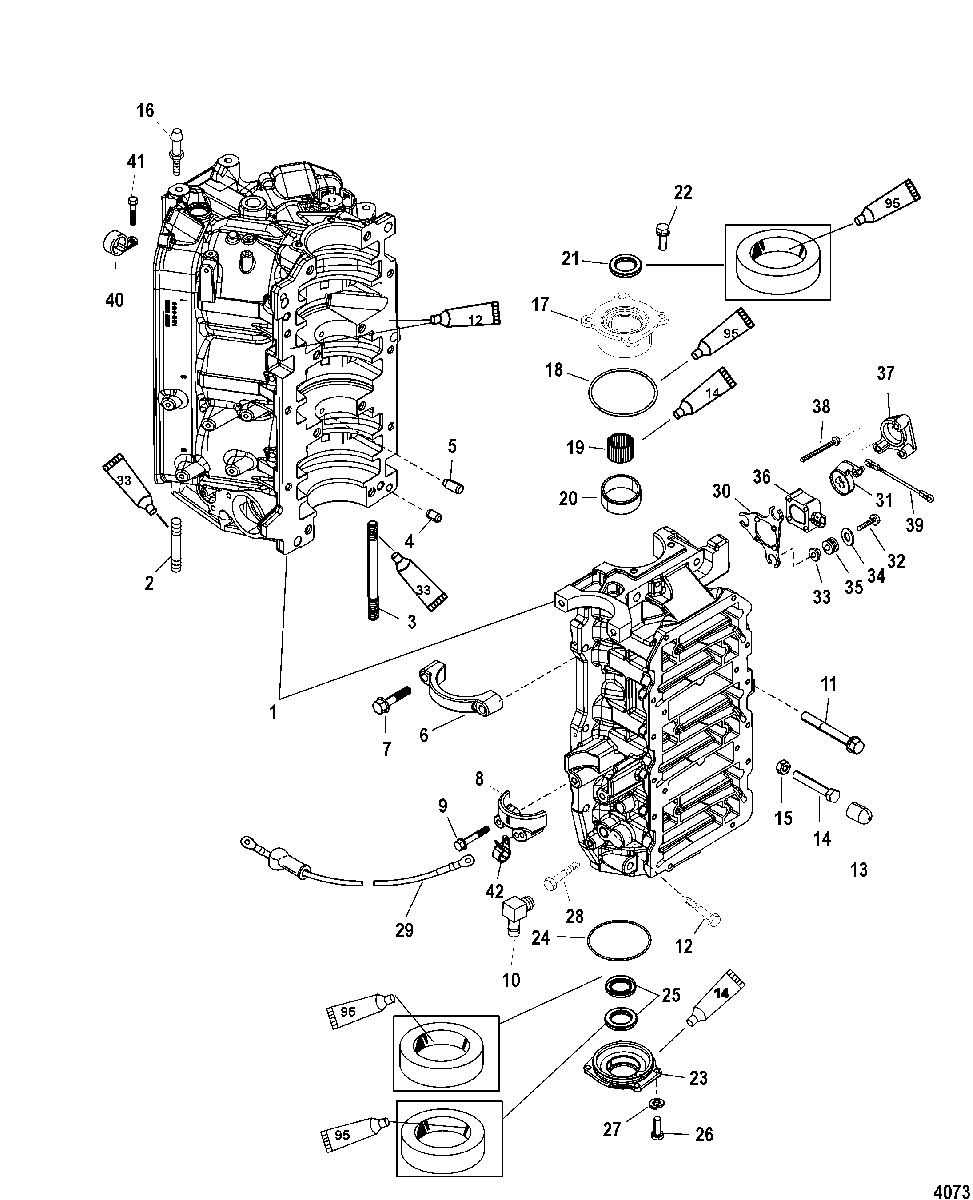

Cylinder Block and End Caps для Mercury - V-150 EFI (2.5L) 1B227000 & Up

  • №
    Артикул
    Название
  • 1
    884-858961A21 CYLINDER BLOCK ASSEMBLY
    (150)
    CYLINDER BLOCK ASSEMBLY
    (150)
  • 1
    884-858961A23 CYLINDER BLOCK ASSEMBLY
    (200)
    CYLINDER BLOCK ASSEMBLY
    (200)
  • 2
    16-8M0034455 STUD, (1.750 Inches)
    STUD, (1.750 Inches)
  • 3
    16-670654 STUD, (.375-16/.375-24 x 5.620)
    (.375 x 5.62)
    STUD, (.375-16/.375-24 x 5.620)
    (.375 x 5.62)
  • 3
    16-8M0034454 STUD, (.375-16/.375-24 x 6.870)
    (.375 x 6.87)
    STUD, (.375-16/.375-24 x 6.870)
    (.375 x 6.87)
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    17-8M0036405 PIN (Bearing Race)
    PIN (Bearing Race)
  • 6
    8M0111325 BRACKET
    BRACKET
  • 7
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 8
    76867 COVER (Bottom)
    COVER (Bottom)
  • 9
    10-828214 SCREW, (.312-18 x 2.00) Hex Flange
    SCREW, (.312-18 x 2.00) Hex Flange
  • 10
    22-887801 FITTING, Elbow 90 Degree (.0625-27)
    FITTING, Elbow 90 Degree (.0625-27)
  • 11
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 12
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 13
    26852 CAP, Nylon
    CAP, Nylon
  • 14
    10-856832 SCREW, (.250-20 x 1.750)
    SCREW, (.250-20 x 1.750)
  • 15
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 16
    8215832 PIN, Special (1.5 Inches)
    PIN, Special (1.5 Inches)
  • 17
    1159-832760T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 18
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 19
    31-16756A4 BEARING KIT
    BEARING KIT
  • 20
    NSS NOT SOLD SEPARATE, Bearing Race
    NOT SOLD SEPARATE, Bearing Race
  • 21
    26-41953 SEAL
    SEAL
  • 22
    10-881190 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 23
    1156-7809T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 24
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 25
    26-41953 SEAL
    SEAL
  • 26
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 27
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 28
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 29
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 30
    8538821 BRACKET, Throttle Position Indicator Mount
    BRACKET, Throttle Position Indicator Mount
  • 31
    8519371 LEVER, Throttle Position Indicator
    LEVER, Throttle Position Indicator
  • 32
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 33
    23-856954 BUSHING
    BUSHING
  • 34
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 35
    25-834985 GROMMET
    GROMMET
  • 36
    8M6005165 INDICATOR, Throttle Position
    INDICATOR, Throttle Position
  • 37
    8582261 COVER
    COVER
  • 38
    10-8508281 SCREW, (#10-32 x 2.00)
    SCREW, (#10-32 x 2.00)
  • 39
    8M0084738 LINK ASSEMBLY
    SN# 1B417701 & Below
    LINK ASSEMBLY
    SN# 1B417701 & Below
  • 39
    8M0084738 LINK ASSEMBLY
    LINK ASSEMBLY
  • 40
    54-28700 CLAMP
    SN# 1B417702 & Up
    CLAMP
    SN# 1B417702 & Up
  • 41
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 42
    54-859172 CLAMP
    CLAMP
  • -
    27-8M0046715 GASKET SET
    GASKET SET
  • -
    883511T04 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    883600T04 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
