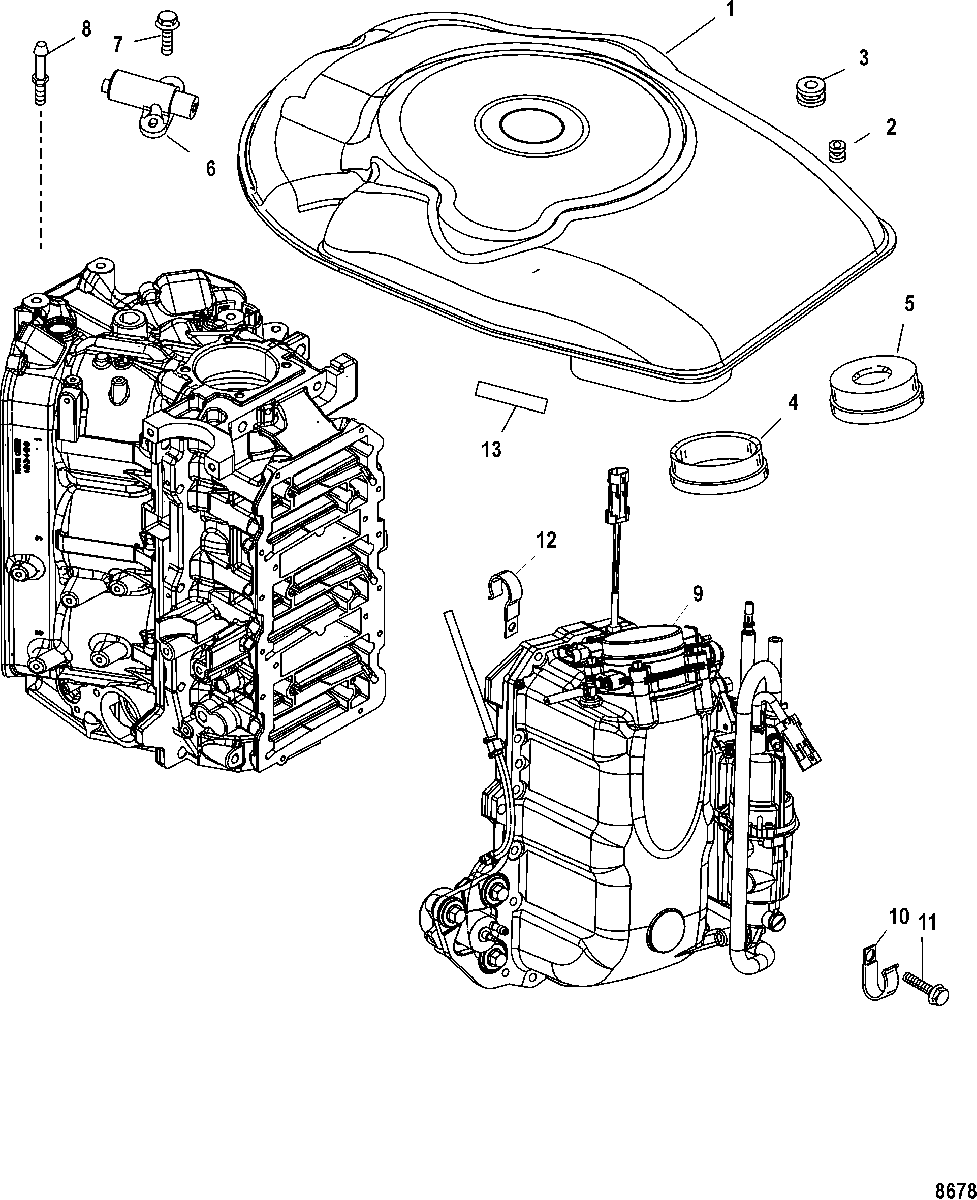

Air Handler для Mercury - V-150 EFI (2.5L) 1B227000 & Up

  • №
    Артикул
    Название
  • 1
    880194T05 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    25-840525 GROMMET
    GROMMET
  • 3
    25-20116 GROMMET
    GROMMET
  • 4
    25-855613 GROMMET
    (200)
    GROMMET
    (200)
  • 5
    25-882840 GROMMET
    (150)
    GROMMET
    (150)
  • 6
    8M0082988 SENSOR
    SENSOR
  • 7
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 8
    8215832 PIN, Special (1.5 Inches)
    PIN, Special (1.5 Inches)
  • 9
    896552T02 AIR HANDLER ASSEMBLY
    AIR HANDLER ASSEMBLY
  • 10
    54-883080 J CLIP
    J CLIP
  • 11
    10-817504 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 12
    54-55098 J CLIP
    J CLIP
  • 13
    37-881865 DECAL, Caution-Start in Gear
    (Start In Gear)
    DECAL, Caution-Start in Gear
    (Start In Gear)
  • -
    883511T04 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    883600T04 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
