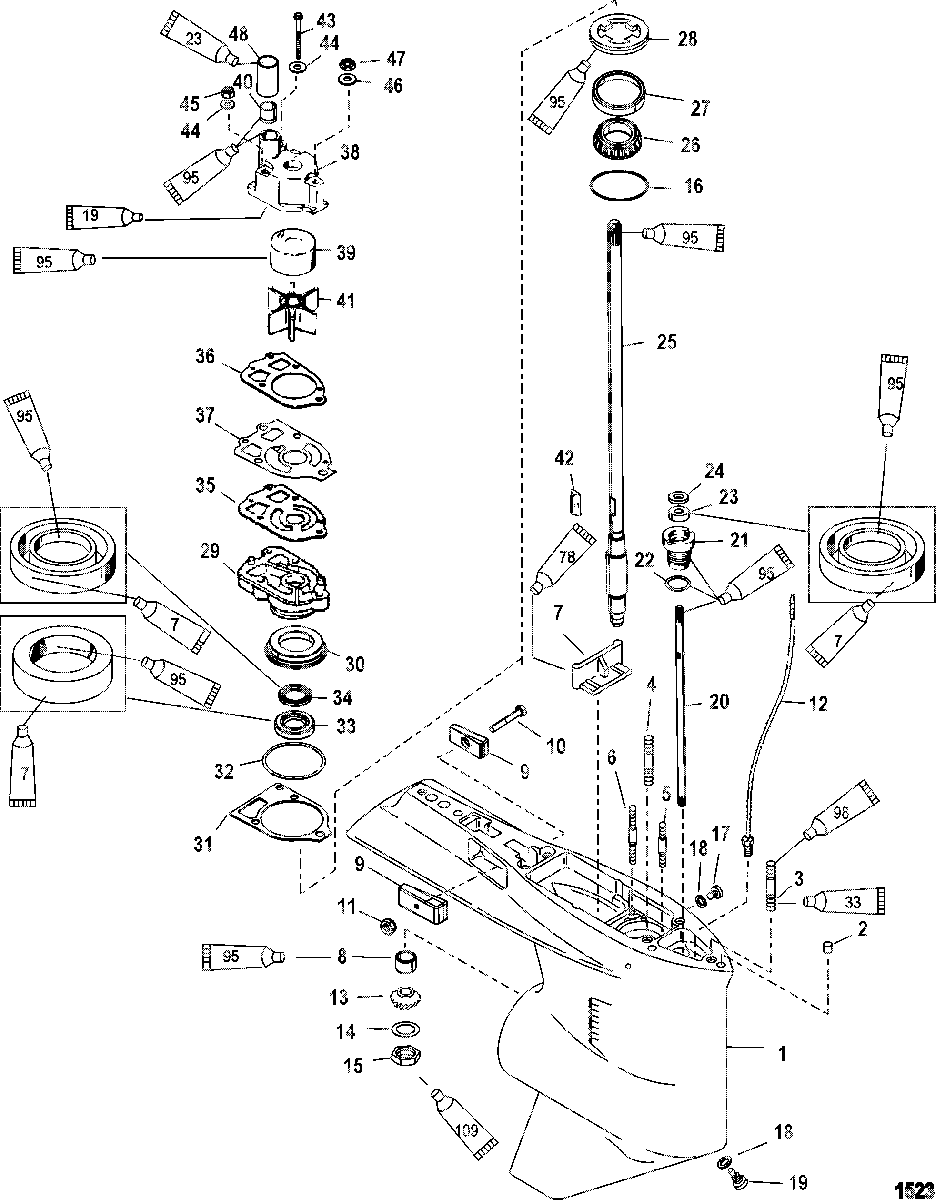

Gear Housing(Driveshaft)(Standard/Counter Rotation) для Mercury - V-150 DFI (2.5L) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • -
    1647-9148T84 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (Long-Standard-1.87:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (Long-Standard-1.87:1)
  • -
    1647-9148T85 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Standard-1.87:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Standard-1.87:1)
  • -
    1647-9148T81 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (Long-Standard-2:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (Long-Standard-2:1)
  • -
    1647-9148T82 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Standard-2:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Standard-2:1)
  • -
    1647-9148T86 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Counter Rotation-1.87:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Counter Rotation-1.87:1)
  • -
    1647-9148T83 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Counter Rotation-2:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long-Counter Rotation-2:1)
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 3
    16-786382 STUD, (.437-14/.437-20 x 3.120)
    (LONG)
    STUD, (.437-14/.437-20 x 3.120)
    (LONG)
  • 3
    16-8M0034464 STUD, (.438 x 3.82 Inches)
    (X-LONG)
    STUD, (.438 x 3.82 Inches)
    (X-LONG)
  • 4
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 5
    16-8M0034463 STUD, (.312-18/.324-24 x 3.380)
    STUD, (.312-18/.324-24 x 3.380)
  • 6
    16-306671 STUD, (.250-20/.250-28 x 3.125)
    STUD, (.250-20/.250-28 x 3.125)
  • 7
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 8
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 9
    97-826134Q ANODE
    ANODE
  • 10
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 11
    11-401386 NUT, (M6)
    NUT, (M6)
  • 12
    22-85822A10 CONNECTOR ASSEMBLY
    CONNECTOR ASSEMBLY
  • 13
    NSS NOT SOLD SEPARATE, Pinion Gear
    (1.87:1 - 15 Teeth)(150)(Part of 43-828174A2 or 43-828701A1)
    NOT SOLD SEPARATE, Pinion Gear
    (1.87:1 - 15 Teeth)(150)(Part of 43-828174A2 or 43-828701A1)
  • 13
    43-44101T3 GEAR, Pinion 2:1 - 14 Teeth
    (2:1 - 14 Teeth)(135)(Also part of 43-828176A2 or 43-828703A1)
    GEAR, Pinion 2:1 - 14 Teeth
    (2:1 - 14 Teeth)(135)(Also part of 43-828176A2 or 43-828703A1)
  • 14
    12-92721 WASHER
    WASHER
  • 15
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 16
    15-8M0063267 SHIM SET
    SHIM SET
  • 17
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 18
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 19
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 20
    789022 SHIFT SHAFT
    SHIFT SHAFT
  • 21
    23-77631A2 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 22
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 23
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 24
    12-77674 WASHER
    WASHER
  • 25
    45-897624T DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 25
    45-897625T DRIVESHAFT
    (X-LONG)
    DRIVESHAFT
    (X-LONG)
  • 26
    31-36387A1 BEARING, Roller
    BEARING, Roller
  • 27
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 28
    8245191 RETAINER
    RETAINER
  • 29
    46-8M0077147 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 30
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 31
    27-426311 GASKET
    GASKET
  • 32
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 33
    26-89238 SEAL, Oil
    SEAL, Oil
  • 34
    26-16977 SEAL, Oil
    SEAL, Oil
  • 35
    27-8M0090319 GASKET
    GASKET
  • 36
    27-858524 GASKET
    GASKET
  • 37
    324351 FACE PLATE
    FACE PLATE
  • 38
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 39
    48752T INSERT
    INSERT
  • 40
    26-38970 SEAL
    SEAL
  • 41
    47-89984T3 IMPELLER
    IMPELLER
  • 42
    28-8M0032834 KEY
    KEY
  • 43
    10-96411 SCREW, (#14-8 x 2.25)
    SCREW, (#14-8 x 2.25)
  • 44
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 45
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 46
    12-36001 WASHER
    WASHER
  • 47
    11-13436 NUT
    NUT
  • 48
    23-29804T SLEEVE
    SLEEVE
  • -
    27-8M0046714 GASKET SET
    GASKET SET
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    46-96148A8 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
