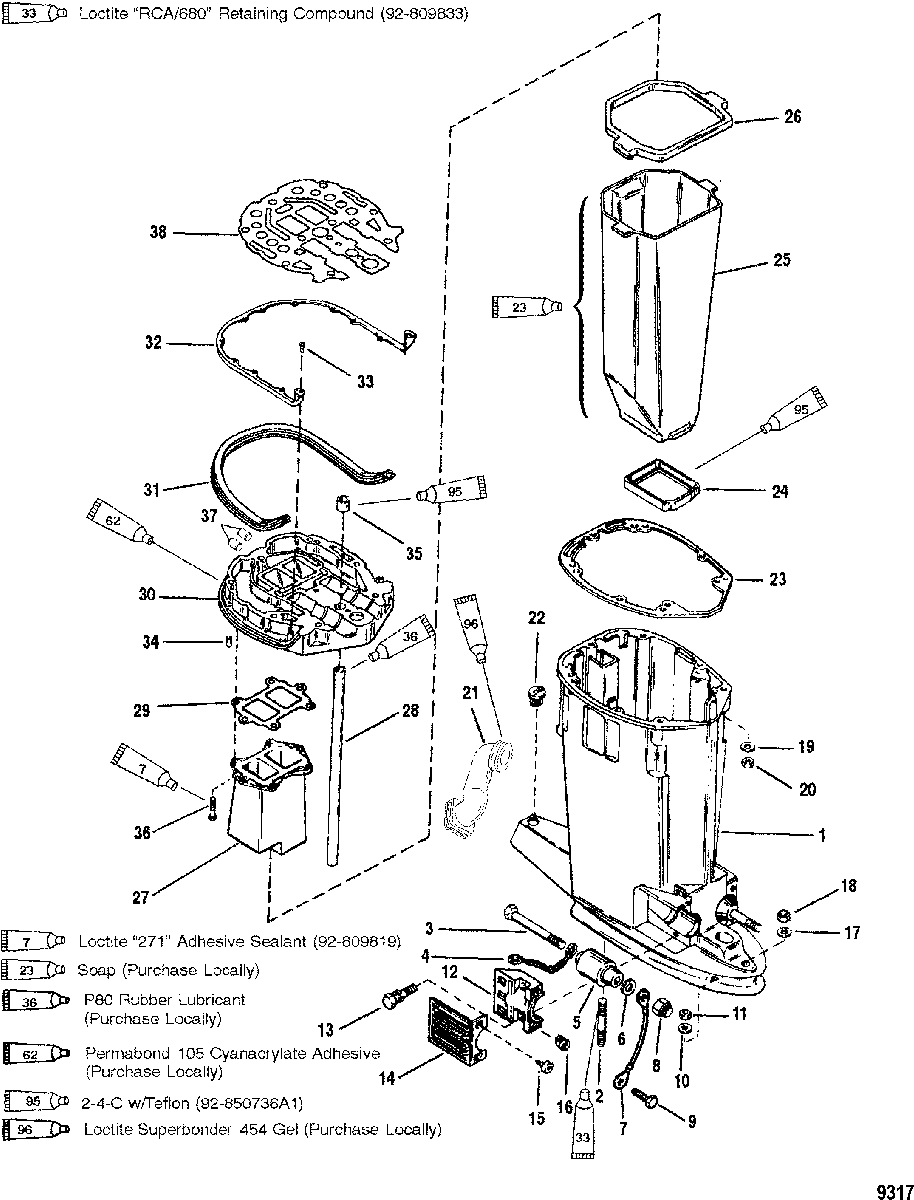

Driveshaft Housing and Exhaust Tube для Mercury - V-150 DFI (2.5L) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    1590-8343T10 HOUSING ASSEMBLY, Driveshaft - Black - Long
    (LONG) (BLACK)
    HOUSING ASSEMBLY, Driveshaft - Black - Long
    (LONG) (BLACK)
  • 1
    3503-813563T1 HOUSING, Driveshaft - Black - X-Long
    (X-LONG) (BLACK)
    HOUSING, Driveshaft - Black - X-Long
    (X-LONG) (BLACK)
  • 2
    16-56295 STUD, (.437 x 2.69)
    STUD, (.437 x 2.69)
  • 3
    10-898831 SCREW, (.500-20 x 6.00)
    SCREW, (.500-20 x 6.00)
  • 4
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 5
    77327 MOUNT
    MOUNT
  • 6
    12-49339 WASHER, (.8125)
    WASHER, (.8125)
  • 7
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 8
    11-898832 NUT, (.500-20)
    NUT, (.500-20)
  • 9
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 10
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 11
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 12
    54-8M0036782 CLAMP
    CLAMP
  • 13
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 14
    100-8M4500752 COVER, Black
    COVER, Black
  • 15
    10-88417 SCREW, (#12-24 x .620)
    SCREW, (#12-24 x .620)
  • 16
    11-35521 NUT
    NUT
  • 17
    12-48926 WASHER
    WASHER
  • 18
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 19
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 20
    11-69254 NUT
    NUT
  • 21
    8M0039081 BOOT, Idle Exhaust
    BOOT, Idle Exhaust
  • 22
    19-64649 PLUG
    PLUG
  • 23
    27-991734 GASKET
    GASKET
  • 24
    66350001 SEAL (LOWER)
    SEAL (LOWER)
  • 25
    18276T TUBE, Exhaust
    TUBE, Exhaust
  • 26
    8M0039076 SEAL (UPPER)
    SEAL (UPPER)
  • 27
    812834A2 EXTENSION, Exhaust
    (150)
    EXTENSION, Exhaust
    (150)
  • 27
    879288T71 EXTENSION, Exhaust
    (135)
    EXTENSION, Exhaust
    (135)
  • 28
    32-8M0042788 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 28
    32-8M0042790 TUBE
    (X-LONG)
    TUBE
    (X-LONG)
  • 29
    27-782461 GASKET
    (USE WHERE APPLICABLE)
    GASKET
    (USE WHERE APPLICABLE)
  • 30
    18233A20 PLATE ASSEMBLY
    PLATE ASSEMBLY
  • 31
    8M0043165 SEAL
    SEAL
  • 32
    68011 BRACKET
    BRACKET
  • 33
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 34
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 35
    26-38970 SEAL
    SEAL
  • 36
    10-90192 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 37
    22-390721 PLUG
    (USE WHERE APPLICABLE)
    PLUG
    (USE WHERE APPLICABLE)
  • 38
    27-183076 GASKET
    GASKET
  • -
    27-8M0046714 GASKET SET
    GASKET SET
