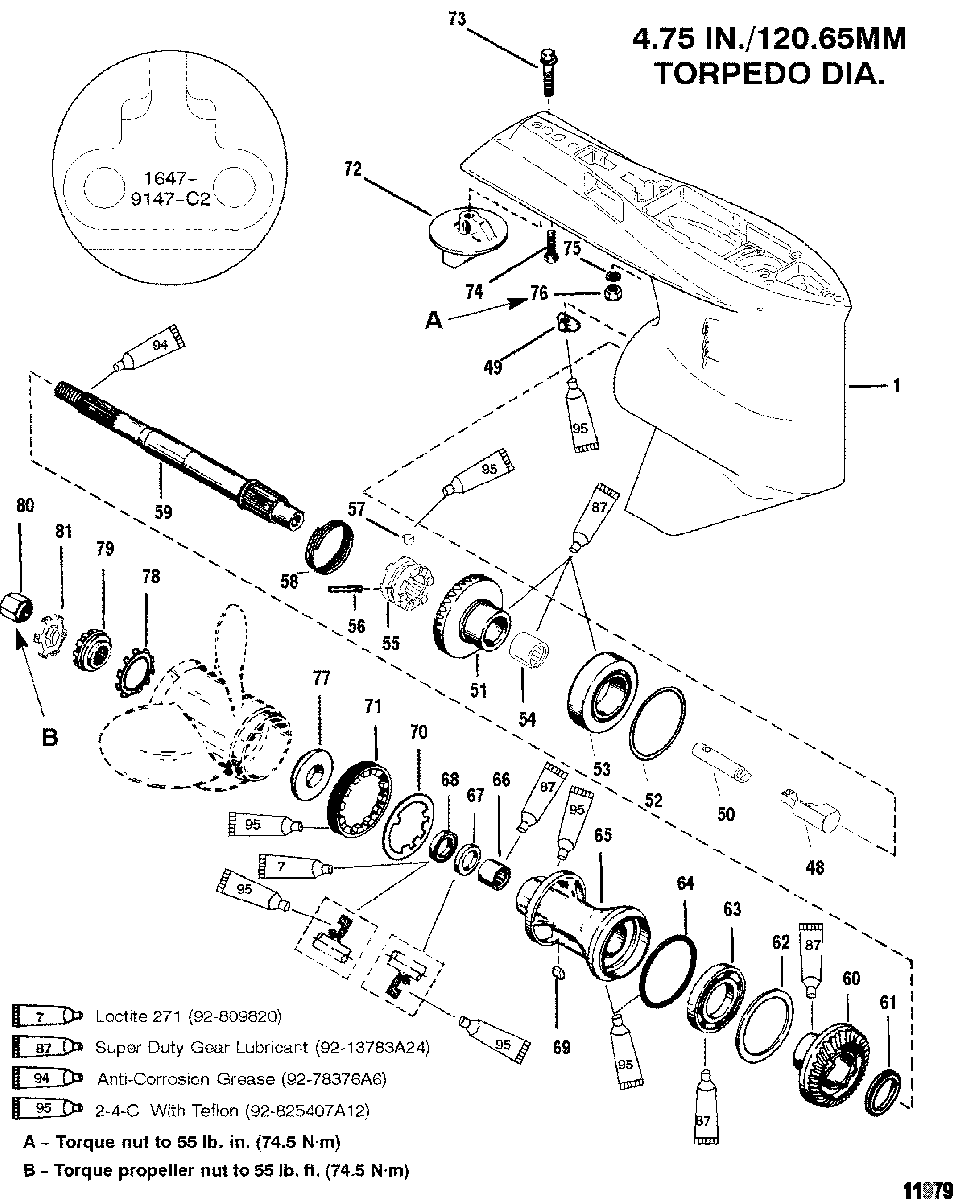

Gear Housing(Propshaft-Standard-S/N-0G438000 & Up) для Mercury - V-135 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY
    (Black) (Basic)
    GEAR HOUSING ASSEMBLY
    (Black) (Basic)
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY
    (Gray) (Basic)
    GEAR HOUSING ASSEMBLY
    (Gray) (Basic)
  • 48
    89594A1 FOLLOWER ASSEMBLY
    FOLLOWER ASSEMBLY
  • 49
    789562 SHIFT CAM
    SHIFT CAM
  • 50
    828287 ROD
    ROD
  • 51
    43-803615T2 GEAR SET
    (XR6/Magnum III/175/200) (1.87:1 - 15/28)
    GEAR SET
    (XR6/Magnum III/175/200) (1.87:1 - 15/28)
  • 51
    43-803612T2 GEAR ASSEMBLY, Forward
    (135/150) (2.0:1 - 14/28)
    GEAR ASSEMBLY, Forward
    (135/150) (2.0:1 - 14/28)
  • 52
    15-8M0063266 SHIM SET (.006-7-9-10-20)
    SHIM SET (.006-7-9-10-20)
  • 53
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 54
    31-30895T BEARING, Needle
    BEARING, Needle
  • 55
    52-859340T SLIDING CLUTCH
    SLIDING CLUTCH
  • 56
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 57
    17-828356 PIN, Detent
    PIN, Detent
  • 58
    24-30893 SPRING
    SPRING
  • 59
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 60
    43-828175A1 GEAR ASSEMBLY, Reverse - 15/28
    (XR6/Magnum III/175/200)
    GEAR ASSEMBLY, Reverse - 15/28
    (XR6/Magnum III/175/200)
  • 60
    43-828177A1 GEAR ASSEMBLY, Reverse - 14/28
    (135/150)
    GEAR ASSEMBLY, Reverse - 14/28
    (135/150)
  • 61
    23-824108 SPACER
    SPACER
  • 62
    681001 RING, Thrust
    RING, Thrust
  • 63
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 64
    25-31534 O-RING
    O-RING
  • 65
    43567T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 66
    31-30956T BEARING, Needle
    BEARING, Needle
  • 67
    26-14077 SEAL, Oil, Inside
    SEAL, Oil, Inside
  • 68
    26-76868 SEAL, Outside
    SEAL, Outside
  • 69
    28-30281 KEY
    KEY
  • 70
    14-79447 TAB WASHER
    TAB WASHER
  • 71
    8M2000347 RETAINER
    RETAINER
  • 72
    31640T07 TRIM TAB
    TRIM TAB
  • 72
    97-76214Q5 ANODE KIT
    (Tracker)
    ANODE KIT
    (Tracker)
  • 73
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 74
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 75
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    WASHER, (.453 x .812 x .105) Stainless Steel
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • 76
    11-34933 NUT, (.437-20) Stainless Steel
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    NUT, (.437-20) Stainless Steel
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • 77
    12-835467Q01 THRUST HUB
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    THRUST HUB
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • 78
    13-423511 LOCKWASHER, Toothed
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    LOCKWASHER, Toothed
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • 79
    12-31211Q03 WASHER, Splined
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    WASHER, Splined
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • 80
    11-52707Q1 PROP NUT KIT, (.750-16)
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    PROP NUT KIT, (.750-16)
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • 81
    14-816629Q TAB WASHER
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
    TAB WASHER
    (These Replacement Parts Are Not Included With Complete Gear Housing Replacement)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
