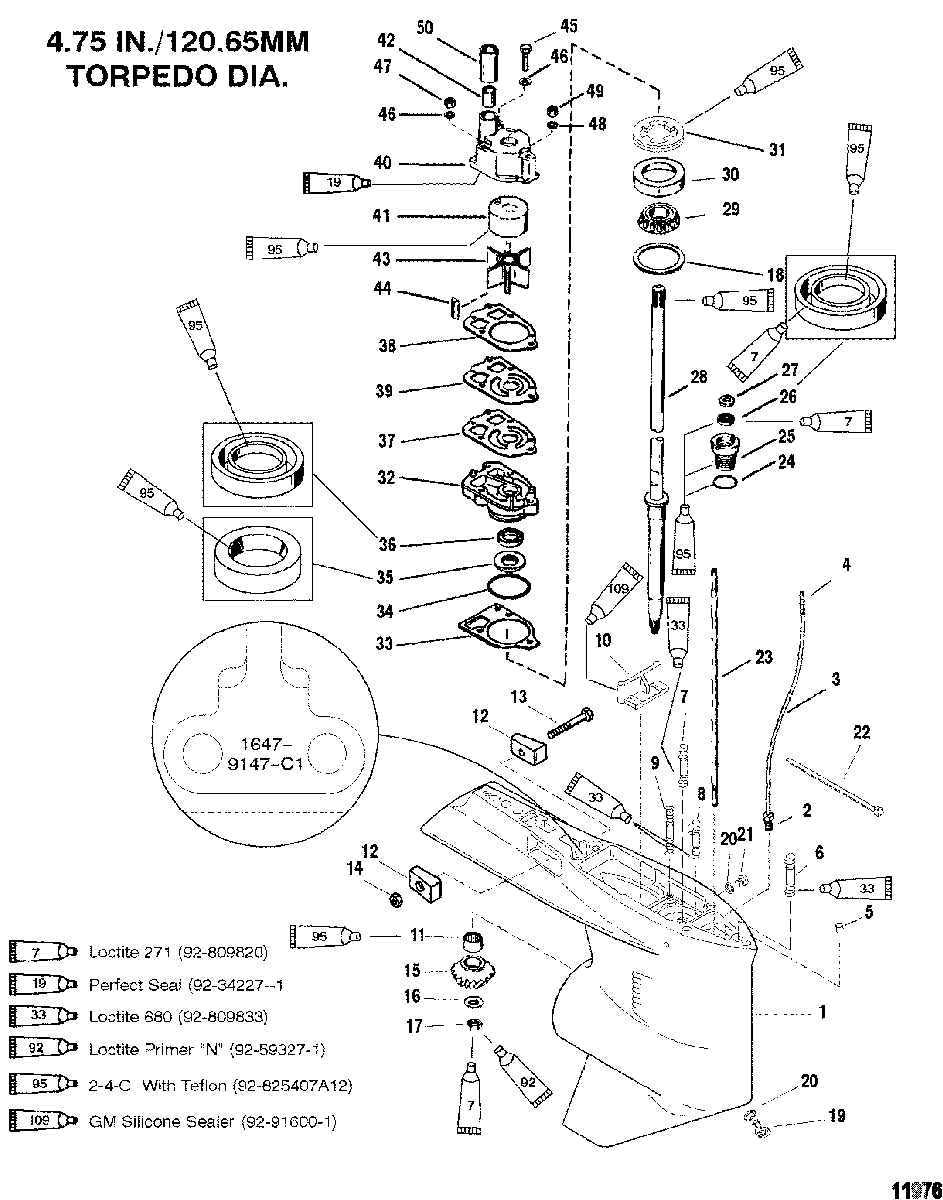

Gear Housing(Driveshaft-Counter-S/N-0G437999 & Below) для Mercury - V-135 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (Black) (Basic)
    GEAR HOUSING ASSEMBLY
    (Black) (Basic)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (Black) (Basic)
    GEAR HOUSING ASSEMBLY
    (Black) (Basic)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY
    CONNECTOR ASSEMBLY
  • 3
    NSS NOT SOLD SEPARATE, Tubing
    NOT SOLD SEPARATE, Tubing
  • 4
    NSS NOT SOLD SEPARATE, Connector
    NOT SOLD SEPARATE, Connector
  • 5
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 6
    16-8M0034464 STUD, (.438 x 3.82 Inches)
    STUD, (.438 x 3.82 Inches)
  • 7
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 8
    16-8M0034463 STUD, (.312 x 3.38)
    STUD, (.312 x 3.38)
  • 9
    16-306671 STUD, (.250-20/.250-28 x 3.125)
    STUD, (.250-20/.250-28 x 3.125)
  • 10
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 11
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 12
    97-826134Q ANODE
    ANODE
  • 13
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 14
    11-401386 NUT, (M6)
    NUT, (M6)
  • 15
    NSS NOT SOLD SEPARATE, Pinion Gear (Part Of 43-18572A 1)
    (2.0:1 Gear Ratio-14 Teeth)
    NOT SOLD SEPARATE, Pinion Gear (Part Of 43-18572A 1)
    (2.0:1 Gear Ratio-14 Teeth)
  • 15
    NSS NOT SOLD SEPARATE, Pinion Gear (Part Of 43-18475A 1)
    (1.87:1Gear Ratio-15 Teeth)
    NOT SOLD SEPARATE, Pinion Gear (Part Of 43-18475A 1)
    (1.87:1Gear Ratio-15 Teeth)
  • 16
    12-92721 WASHER
    WASHER
  • 17
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 18
    15-8M0063267 SHIM SET
    SHIM SET
  • 19
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 20
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 21
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 22
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 23
    789022 SHIFT SHAFT
    SHIFT SHAFT
  • 24
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 25
    23-77631A2 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 26
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 27
    12-77674 WASHER
    WASHER
  • 28
    45-897625T DRIVESHAFT
    DRIVESHAFT
  • 29
    31-36387A1 BEARING, Roller
    BEARING, Roller
  • 30
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 31
    8245191 RETAINER
    RETAINER
  • 32
    46-8M0077147 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 33
    27-426311 GASKET
    GASKET
  • 34
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 35
    26-89238 SEAL, Oil
    SEAL, Oil
  • 36
    26-16977 SEAL, Oil
    SEAL, Oil
  • 37
    27-8M0090319 GASKET
    GASKET
  • 38
    27-858524 GASKET
    GASKET
  • 39
    324351 FACE PLATE
    FACE PLATE
  • 40
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 41
    48752T INSERT
    INSERT
  • 42
    26-38970 SEAL
    SEAL
  • 43
    47-89984T3 IMPELLER
    IMPELLER
  • 44
    28-8M0032834 KEY
    KEY
  • 45
    10-96411 SCREW, (#14-8 x 2.25)
    SCREW, (#14-8 x 2.25)
  • 46
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 47
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 48
    12-36001 WASHER
    WASHER
  • 49
    11-13436 NUT
    NUT
  • 50
    23-29804T SLEEVE
    SLEEVE
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    46-96148A8 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
