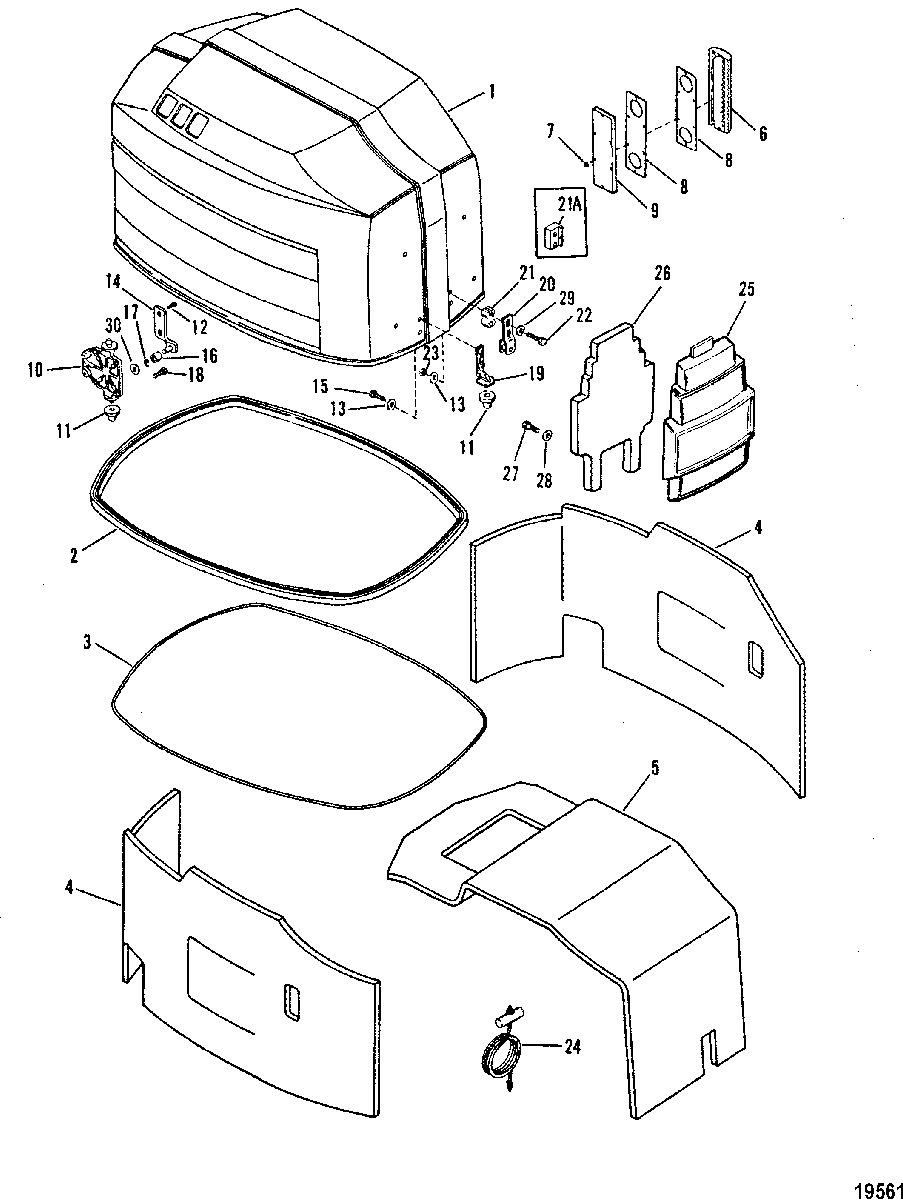

Top Cowl and Front Shield для Mercury - V-135 0C239553 THRU 0D081999
-
№АртикулНазвание
-
12196-9742T88 TOP COWL ASSEMBLY (BLACK)
(135/150/175/200)TOP COWL ASSEMBLY (BLACK)
(135/150/175/200) -
12196-9743T11 TOP COWL ASSEMBLY (GRAY)
(135/150/175/200)TOP COWL ASSEMBLY (GRAY)
(135/150/175/200) -
12196-9742T90 TOP COWL ASSEMBLY (BLACK)
(XR4)TOP COWL ASSEMBLY (BLACK)
(XR4) -
12196-9742A91 TOP COWL ASSEMBLY (GRAY)
(MAGNUM II)TOP COWL ASSEMBLY (GRAY)
(MAGNUM II) -
2812784 SEALSEAL
-
3815478 SEALSEAL
-
4814823 SOUND BLANKET (SIDE)
(USE WITHOUT DEFLECTOR)SOUND BLANKET (SIDE)
(USE WITHOUT DEFLECTOR) -
5814837 SOUND BLANKET
(USE WITHOUT DEFLECTOR)SOUND BLANKET
(USE WITHOUT DEFLECTOR) -
4/5814823A1 SOUND BLANKT KIT
(USE W/ DEFLECTOR)SOUND BLANKT KIT
(USE W/ DEFLECTOR) -
617196A1 SHIELD, AIR INLET
(XR4/MAGNUM II)SHIELD, AIR INLET
(XR4/MAGNUM II) -
711-11316 SPEED/NUT
(XR4/MAGNUM II)SPEED/NUT
(XR4/MAGNUM II) -
817238 SEAL, AIR INLET
(XR4/MAGNUM II)SEAL, AIR INLET
(XR4/MAGNUM II) -
917194 SHIELD, AIR INLET (PORT)
(XR4/MAGNUM II)SHIELD, AIR INLET (PORT)
(XR4/MAGNUM II) -
917195 SHIELD, AIR INLET (STBD)
(XR4/MAGNUM II)SHIELD, AIR INLET (STBD)
(XR4/MAGNUM II) -
10184741 BRACKET, REARBRACKET, REAR
-
1125-18506001 GROMMETGROMMET
-
1210-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1312-56720 WASHER, (.330 x .750 x .060)WASHER, (.330 x .750 x .060)
-
14813096A2 HOOKHOOK
-
1510-73286 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
16815263 ROLLERROLLER
-
1753-13194 RING, RetainingRING, Retaining
-
1810-816992 SCREWSCREW
-
19187021 LOCATORLOCATOR
-
20893763 BRACKETBRACKET
-
21813076A2 SPACERSPACER
-
21A816838 SPACERSPACER
-
2210-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
2210-69267 SCREW, (.312-18 x 1.750)SCREW, (.312-18 x 1.750)
-
2311-815848 NUT, (.312)NUT, (.312)
-
2447341A11 ROPE AND HANDLE KIT (FOR MANUAL STARTING)ROPE AND HANDLE KIT (FOR MANUAL STARTING)
-
2518755A1 FRONT SHIELD ASSEMBLY (BLACK)FRONT SHIELD ASSEMBLY (BLACK)
-
2518755A2 FRONT SHIELD ASSEMBLY (GRAY)FRONT SHIELD ASSEMBLY (GRAY)
-
26813562 SEAL (OLD DESIGN)SEAL (OLD DESIGN)
-
2710-77137 SCREW, (.190-16 X .62)SCREW, (.190-16 X .62)
-
2812-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2912-8M0042642 WASHER, (.323 x .563 x .063)WASHER, (.323 x .563 x .063)
-
3012-36001 WASHERWASHER
