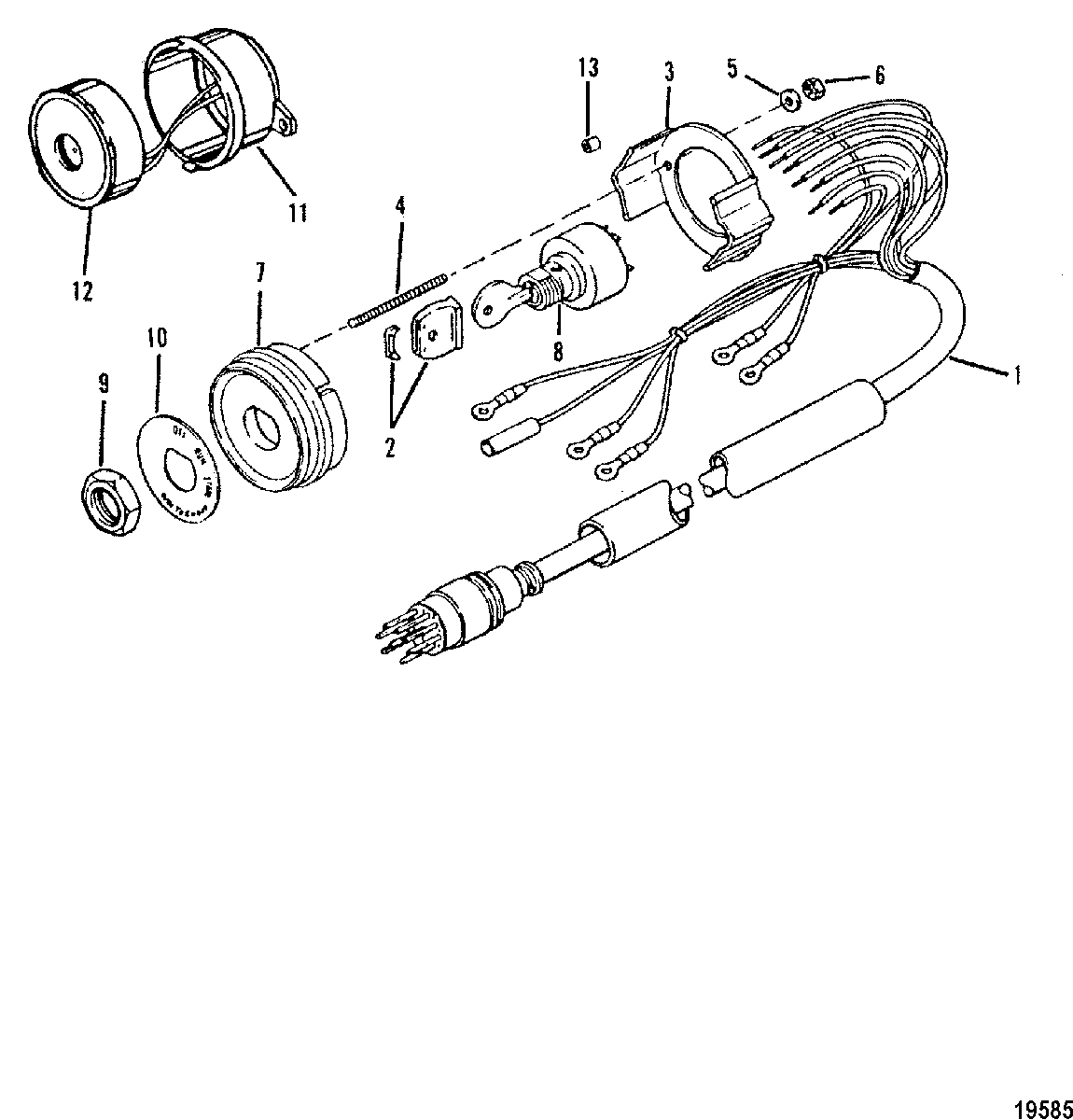

Key Switch Assembly для Mercury - V-135 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    84-816626A20 KEY SWITCH ASSEMBLY (20")
    KEY SWITCH ASSEMBLY (20")
  • 2
    90468A1 COVER ASSEMBLY, Key
    COVER ASSEMBLY, Key
  • 3
    76424 BRACKET
    BRACKET
  • 4
    16-55422 STUD, (#10-32 x 2.00)
    STUD, (#10-32 x 2.00)
  • 5
    12-24676 WASHER, (.200 x .440 x .032)
    WASHER, (.200 x .440 x .032)
  • 6
    11-68219 NUT, (#10-32)
    NUT, (#10-32)
  • 7
    816479A3 PLATE
    PLATE
  • 8
    87-88107A5 KEY SWITCH (SEE CHART FOR KEY)
    KEY SWITCH (SEE CHART FOR KEY)
  • 9
    11-879755 NUT, Special
    NUT, Special
  • 10
    38-90311 INSERT
    INSERT
  • 11
    68878A6 ALARM HORN AND WIRE ASSEMBLY
    ALARM HORN AND WIRE ASSEMBLY
  • 12
    68879 COVER
    COVER
  • 13
    23-8127111 SPACER, (.375)
    SPACER, (.375)
  • 13
    23-812711 SPACER, (.250)
    SPACER, (.250)
  • NS
    894911 KEY, Ignition (1A)
    KEY, Ignition (1A)
  • NS
    894917 KEY, Ignition (2A)
    KEY, Ignition (2A)
  • NS
    894912 KEY, Ignition (1B)
    KEY, Ignition (1B)
  • NS
    894918 KEY, Ignition (2B)
    KEY, Ignition (2B)
  • NS
    894913 KEY, Ignition (1C)
    KEY, Ignition (1C)
  • NS
    894919 KEY, Ignition (2C)
    KEY, Ignition (2C)
  • NS
    894914 KEY, Ignition (1D)
    KEY, Ignition (1D)
  • NS
    8949110 KEY, Ignition (2D)
    KEY, Ignition (2D)
  • NS
    894915 KEY, Ignition (1E)
    KEY, Ignition (1E)
  • NS
    8949111 KEY, Ignition (2E)
    KEY, Ignition (2E)
  • NS
    894916 KEY, Ignition (1F)
    KEY, Ignition (1F)
  • NS
    8949112 KEY, Ignition (2F)
    KEY, Ignition (2F)
