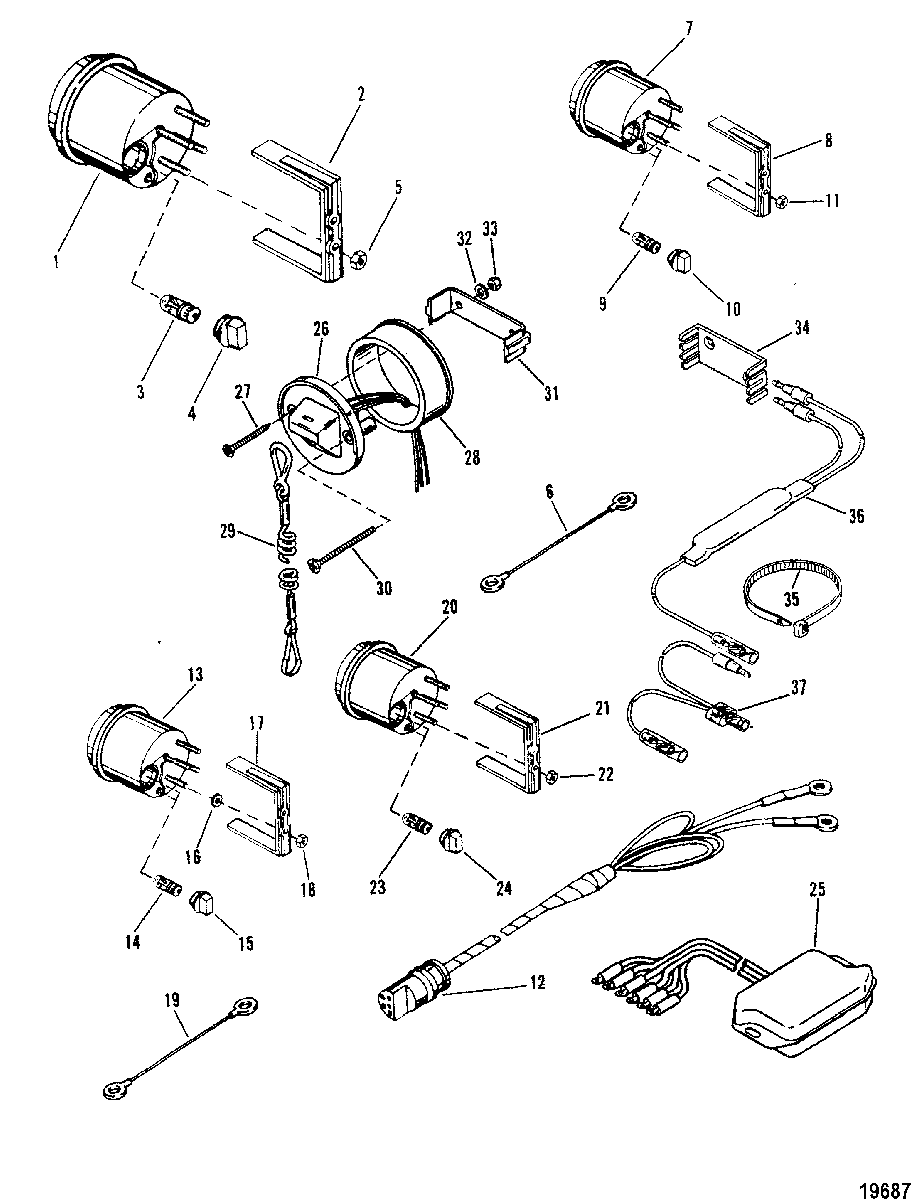

Instrumentation(Mercury and Mariner) для Mercury - V-135 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    79-895283Q43 TACHOMETER (6K)
    TACHOMETER (6K)
  • 2
    79101T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 3
    88-72729 LIGHT BULB
    LIGHT BULB
  • 4
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 5
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 6
    84-86322A7 CABLE ASSEMBLY, (1.50 Feet-Black), TRIM GAUGE
    CABLE ASSEMBLY, (1.50 Feet-Black), TRIM GAUGE
  • 6
    84-86323A5 CABLE ASSEMBLY, (1.50 Feet-Purple), TRIM GAUGE
    CABLE ASSEMBLY, (1.50 Feet-Purple), TRIM GAUGE
  • 7
    79-895292Q41 TRIM GAUGE
    TRIM GAUGE
  • 8
    79480 BRACKET, MOUNTING - TRIM GAUGE
    BRACKET, MOUNTING - TRIM GAUGE
  • 9
    88-72729 LIGHT BULB, TRIM GAUGE
    LIGHT BULB, TRIM GAUGE
  • 10
    88-79888 SOCKET, Light Bulb, TRIM GAUGE
    SOCKET, Light Bulb, TRIM GAUGE
  • 11
    11-26419 NUT, (#8-32), TRIM GAUGE TERMINAL
    NUT, (#8-32), TRIM GAUGE TERMINAL
  • 12
    84-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)
    HARNESS ASSEMBLY, Tachometer (5.00 Feet)
  • 13
    79-895287Q41 TEMPERATURE GAUGE
    TEMPERATURE GAUGE
  • 14
    88-72729 LIGHT BULB
    LIGHT BULB
  • 15
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 16
    12-26427 WASHER
    WASHER
  • 17
    79480 BRACKET
    BRACKET
  • 18
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 19
    84-86323A2 CABLE ASSEMBLY, (2.00 Feet - Purple)
    CABLE ASSEMBLY, (2.00 Feet - Purple)
  • 19
    84-61600A16 CABLE ASSEMBLY, (17.00 Inches-Black)
    CABLE ASSEMBLY, (17.00 Inches-Black)
  • 19
    84-88824A4 CABLE ASSEMBLY, (45.00 Inches-Tan)
    CABLE ASSEMBLY, (45.00 Inches-Tan)
  • 20
    79-895294Q41 SYNCHRONIZER GAUGE
    (Counter Rotation)
    SYNCHRONIZER GAUGE
    (Counter Rotation)
  • 21
    79480 BRACKET
    (Counter Rotation)
    BRACKET
    (Counter Rotation)
  • 22
    11-26419 NUT, (#8-32)
    (Counter Rotation)
    NUT, (#8-32)
    (Counter Rotation)
  • 23
    88-72729 LIGHT BULB
    (Counter Rotation)
    LIGHT BULB
    (Counter Rotation)
  • 24
    88-79888 SOCKET, Light Bulb
    (Counter Rotation)
    SOCKET, Light Bulb
    (Counter Rotation)
  • 25
    8M0053532 DRIVER, SYNCHRONIZER
    (Counter Rotation)
    DRIVER, SYNCHRONIZER
    (Counter Rotation)
  • 26
    87-19674A1 SWITCH ASSEMBLY, Lanyard
    (Counter Rotation)
    SWITCH ASSEMBLY, Lanyard
    (Counter Rotation)
  • 27
    10-18303 SCREW, (.190-16 x 1.750)
    (Counter Rotation)
    SCREW, (.190-16 x 1.750)
    (Counter Rotation)
  • 28
    813679 ADAPTER
    (Counter Rotation)
    ADAPTER
    (Counter Rotation)
  • 29
    8M0092850 LANYARD ASSEMBLY
    (Counter Rotation)
    LANYARD ASSEMBLY
    (Counter Rotation)
  • 30
    10-32866 SCREW, (#10-32 x 2.00)
    (Counter Rotation)
    SCREW, (#10-32 x 2.00)
    (Counter Rotation)
  • 31
    18321 CLAMP, Mounting
    (Counter Rotation)
    CLAMP, Mounting
    (Counter Rotation)
  • 32
    12-24676 WASHER, (.200 x .440 x .032)
    (Counter Rotation)
    WASHER, (.200 x .440 x .032)
    (Counter Rotation)
  • 33
    11-68219 NUT, (#10-32)
    (Counter Rotation)
    NUT, (#10-32)
    (Counter Rotation)
  • 34
    79146 RETAINER
    (Counter Rotation)
    RETAINER
    (Counter Rotation)
  • 35
    54-816311T STA STRAP
    (Counter Rotation)
    STA STRAP
    (Counter Rotation)
  • 36
    84-898289A72 DIODE ASSEMBLY
    (Counter Rotation)
    DIODE ASSEMBLY
    (Counter Rotation)
  • 37
    84-11149A2 CABLE ASSEMBLY, (6.00 Inches)
    (Counter Rotation)
    CABLE ASSEMBLY, (6.00 Inches)
    (Counter Rotation)
