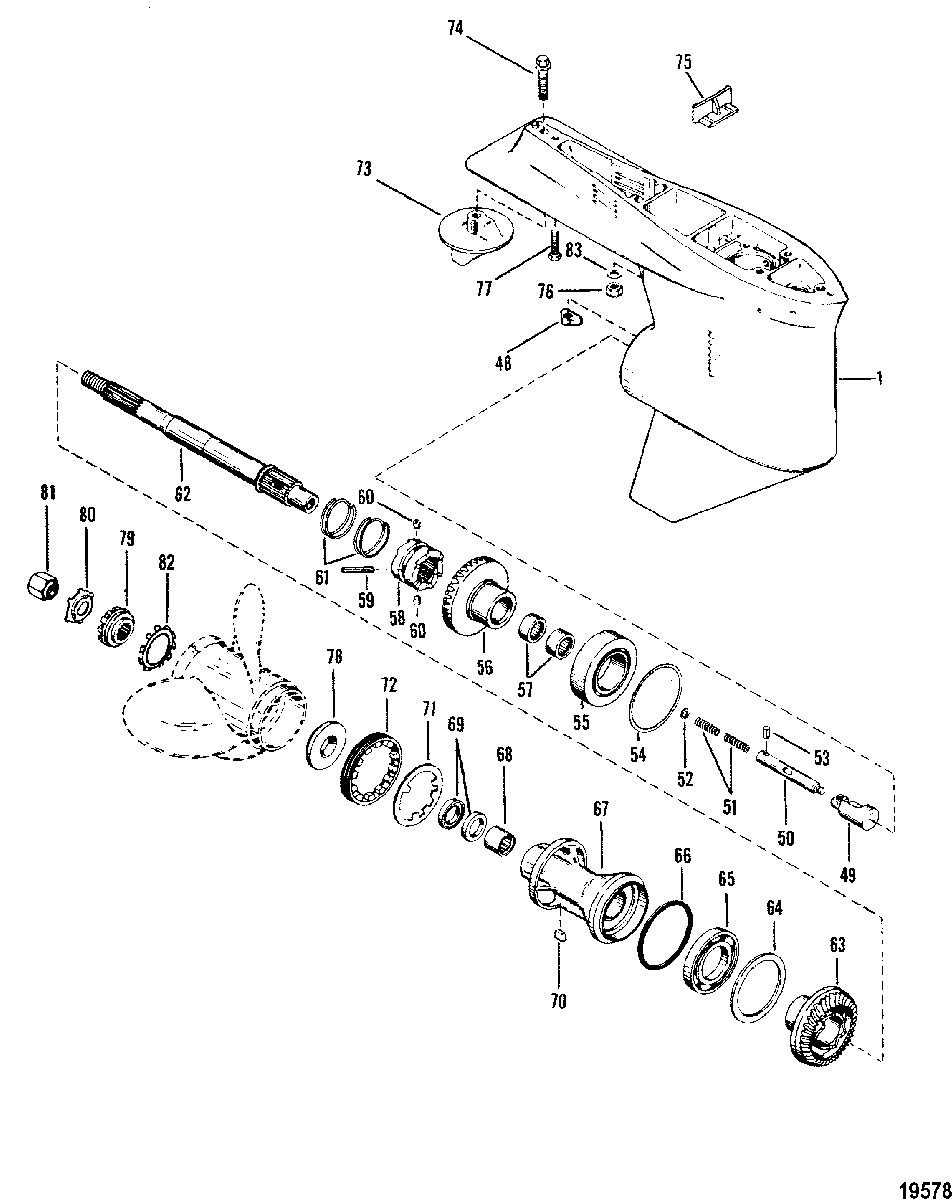

Gear Housing(Propeller Shaft) (Standard Rotation) для Mercury - V-135 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • -
    1647-9148T81 GEAR HOUSING (LONG) (BLACK)
    GEAR HOUSING (LONG) (BLACK)
  • -
    1647-9148T82 GEAR HOUSING (X-LONG) (BLACK)
    GEAR HOUSING (X-LONG) (BLACK)
  • -
    1647-9148T81 GEAR HOUSING (LONG) (GRAY)
    GEAR HOUSING (LONG) (GRAY)
  • -
    1647-9148T82 GEAR HOUSING (X-LONG) (GRAY)
    GEAR HOUSING (X-LONG) (GRAY)
  • -
    1647-9148A22 GEAR HOUSING (LONG)
    GEAR HOUSING (LONG)
  • -
    1647-9148A38 GEAR HOUSING (X-LONG)
    (MARINER 135)
    GEAR HOUSING (X-LONG)
    (MARINER 135)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY, BASIC (BLACK)
    GEAR HOUSING ASSEMBLY, BASIC (BLACK)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY, BASIC (GRAY)
    GEAR HOUSING ASSEMBLY, BASIC (GRAY)
  • 48
    789562 SHIFT CAM
    SHIFT CAM
  • 49
    89594A1 FOLLOWER, CAM
    FOLLOWER, CAM
  • 50
    79911A1 ROD, CLUTCH ACTUATOR
    ROD, CLUTCH ACTUATOR
  • 51
    24-79910 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 52
    12-78910 WASHER, COMPRESSION SPRING
    WASHER, COMPRESSION SPRING
  • 53
    17-8M0084245 PIN, SPRING LOCATOR
    PIN, SPRING LOCATOR
  • 54
    15-47397A1 SHIM SET, BEARING OUTER RACE (.002-3-5-10)
    SHIM SET, BEARING OUTER RACE (.002-3-5-10)
  • 55
    31-78172A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 56
    43-44102A2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 57
    31-73363T ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 58
    52-8M0100493 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 59
    17-8M0084243 PIN, Cross, RATCHET TO PROPELLER SHAFT
    PIN, Cross, RATCHET TO PROPELLER SHAFT
  • 60
    17-78909 PIN, Detent, RATCHET
    PIN, Detent, RATCHET
  • 61
    24-78962 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 62
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    N.S.S. Not Sold Seperate, Reverse Gear (PART OF 43-44102A2)
    Not Sold Seperate, Reverse Gear (PART OF 43-44102A2)
  • 64
    681001 RING, THRUST
    RING, THRUST
  • 65
    30-88957T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 66
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 67
    43567T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 68
    31-30956T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 69
    26-76868 SEAL, BEARING CARRIER
    SEAL, BEARING CARRIER
  • 70
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 71
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 72
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 73
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 74
    10-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
  • 75
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 76
    11-34933 NUT, (.437-20), DRIVE SHAFT HOUSING STUDS
    NUT, (.437-20), DRIVE SHAFT HOUSING STUDS
  • 77
    10-65210 SCREW, (.375-16 x 1.00), GEAR HOUSING (LONG)
    SCREW, (.375-16 x 1.00), GEAR HOUSING (LONG)
  • 77
    10-74727 SCREW, (.375-16 X 6.00), GEAR HOUSING (X-LONG)
    SCREW, (.375-16 X 6.00), GEAR HOUSING (X-LONG)
  • 78
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 79
    12-31211Q03 WASHER, Splined, PROPELLER NUT
    WASHER, Splined, PROPELLER NUT
  • 80
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 81
    11-52707Q1 NUT, Propeller
    NUT, Propeller
  • 82
    13-423511 LOCKWASHER, Toothed, PROPELLER SHAFT
    LOCKWASHER, Toothed, PROPELLER SHAFT
  • 83
    12-45176 WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
    WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-90484A88 GASKET SET
    GASKET SET
