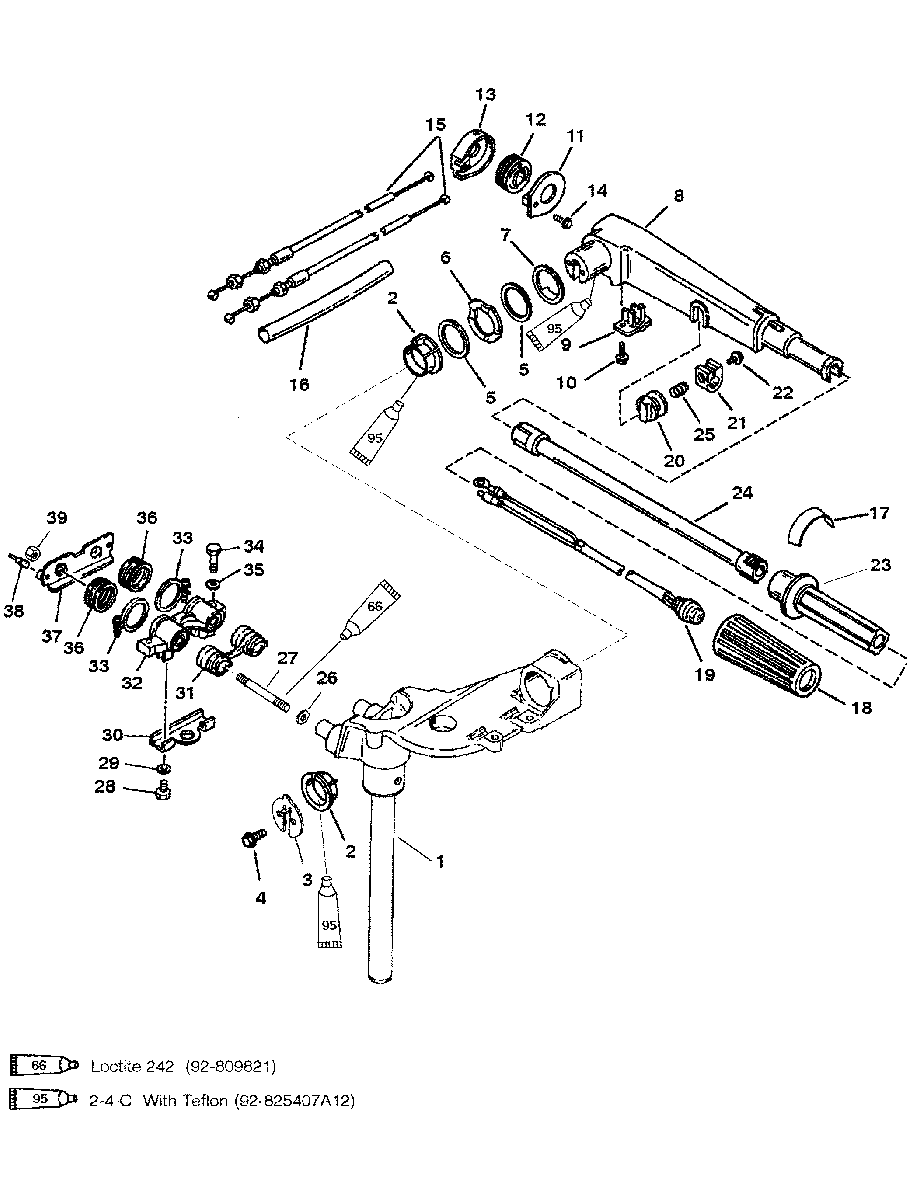

SWIVEL HEAD AND STEERING HANDLE для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909

  • №
    Артикул
    Название
  • 1
    825551A2 SWIVEL HEAD
    (BLACK)
    SWIVEL HEAD
    (BLACK)
  • 1
    825551A3 SWIVEL HEAD
    (GRAY)
    SWIVEL HEAD
    (GRAY)
  • 2
    23-823939 BUSHING
    BUSHING
  • 3
    826648 PLATE
    PLATE
  • 4
    10-40011107 SCREW (M5 X .8 X 16)
    SCREW (M5 X .8 X 16)
  • 5
    12-822145 WASHER
    WASHER
  • 6
    13-826792 WAVE WASHER
    WAVE WASHER
  • 7
    12-822146 WASHER
    WASHER
  • -
    821468T65 TILLER HANDLE-COMPLETE
    (BLACK) SIDE SHIFT
    TILLER HANDLE-COMPLETE
    (BLACK) SIDE SHIFT
  • -
    821468T11 TILLER HANDLE-COMPLETE
    (GRAY) SIDE SHIFT
    TILLER HANDLE-COMPLETE
    (GRAY) SIDE SHIFT
  • -
    821468T12 TILLER HANDLE-COMPLETE
    (BLACK) 9.9 HANDLE SHIFT
    TILLER HANDLE-COMPLETE
    (BLACK) 9.9 HANDLE SHIFT
  • -
    821468T13 TILLER HANDLE-COMPLETE
    (GRAY) 9.9 HANDLE SHIFT
    TILLER HANDLE-COMPLETE
    (GRAY) 9.9 HANDLE SHIFT
  • -
    821463T84 TILLER HANDLE-COMPLETE
    (BLACK) 8 BODENSEE HANDLE SHIFT
    TILLER HANDLE-COMPLETE
    (BLACK) 8 BODENSEE HANDLE SHIFT
  • -
    821463A85 TILLER HANDLE-COMPLETE
    (GRAY) 8 BODENSEE HANDLE SHIFT
    TILLER HANDLE-COMPLETE
    (GRAY) 8 BODENSEE HANDLE SHIFT
  • 8
    821468A66 STEERING HANDLE ARM
    (BLACK)
    STEERING HANDLE ARM
    (BLACK)
  • 8
    821468A66 STEERING HANDLE ARM
    (GRAY)
    STEERING HANDLE ARM
    (GRAY)
  • 9
    822441 RETAINER
    RETAINER
  • 10
    10-40011107 SCREW (M5 X .8 X 16)
    SCREW (M5 X .8 X 16)
  • 11
    822148A3 COVER KIT
    COVER KIT
  • 12
    822150 PULLEY
    PULLEY
  • 13
    NSS PULLEY CASE (PART OF REF. #11)
    PULLEY CASE (PART OF REF. #11)
  • 14
    10-878608 SCREW (10-16)
    SCREW (10-16)
  • 15
    43242T09 THROTTLE CABLE
    (SIDE SHIFT)
    THROTTLE CABLE
    (SIDE SHIFT)
  • 15
    43242T09 THROTTLE CABLE
    (HANDLE SHIFT)
    THROTTLE CABLE
    (HANDLE SHIFT)
  • 16
    85-9600910 SLEEVE
    SLEEVE
  • 17
    37-8242004 DECAL
    (SIDE SHIFT)
    DECAL
    (SIDE SHIFT)
  • 17
    37-8242002 DECAL
    (HANDLE SHIFT)
    DECAL
    (HANDLE SHIFT)
  • 18
    99589003 GRIP
    GRIP
  • 19
    87-8M0104613 STOP SWITCH
    STOP SWITCH
  • 20
    821972T THROTTLE FRICTION KNOB
    THROTTLE FRICTION KNOB
  • 21
    892995 THROTTLE FRICTION LOCK
    THROTTLE FRICTION LOCK
  • 22
    10-4000330 SCREW (M6 X 1 X 25)
    SCREW (M6 X 1 X 25)
  • 23
    821465 THROTTLE HANDLE
    (SIDE SHIFT)
    THROTTLE HANDLE
    (SIDE SHIFT)
  • 23
    822429 THROTTLE HANDLE
    (HANDLE SHIFT) (9.9)
    THROTTLE HANDLE
    (HANDLE SHIFT) (9.9)
  • 23
    831853 THROTTLE HANDLE
    (HANDLE SHIFT) (8 BODENSEE)
    THROTTLE HANDLE
    (HANDLE SHIFT) (8 BODENSEE)
  • 24
    821463T01 TILLER TUBE
    TILLER TUBE
  • 25
    24-96203 SPRING
    SPRING
  • 26
    12-4002317 WASHER
    WASHER
  • 27
    16-825552 STUD
    STUD
  • 28
    10-4000326 SCREW (M6 X 12)
    SCREW (M6 X 12)
  • 29
    12-29245 WASHER
    WASHER
  • 30
    825541 PLATE
    PLATE
  • 31
    26-825547 SEAL
    SEAL
  • 32
    825540 MOUNT
    MOUNT
  • 33
    825544 CLAMP
    CLAMP
  • 34
    10-4000354 SCREW (M8 X 30)
    SCREW (M8 X 30)
  • 35
    12-4002317 WASHER
    WASHER
  • 36
    26-825543 SEAL
    SEAL
  • 37
    825545 BRACKET
    BRACKET
  • 38
    825546 DAMPER
    DAMPER
  • 39
    11-401368 NUT
    NUT
  • -
    828133 STOP-THROTTLE HANDLE
    (SIDE SHIFT - 8 BODENSEE)
    STOP-THROTTLE HANDLE
    (SIDE SHIFT - 8 BODENSEE)
