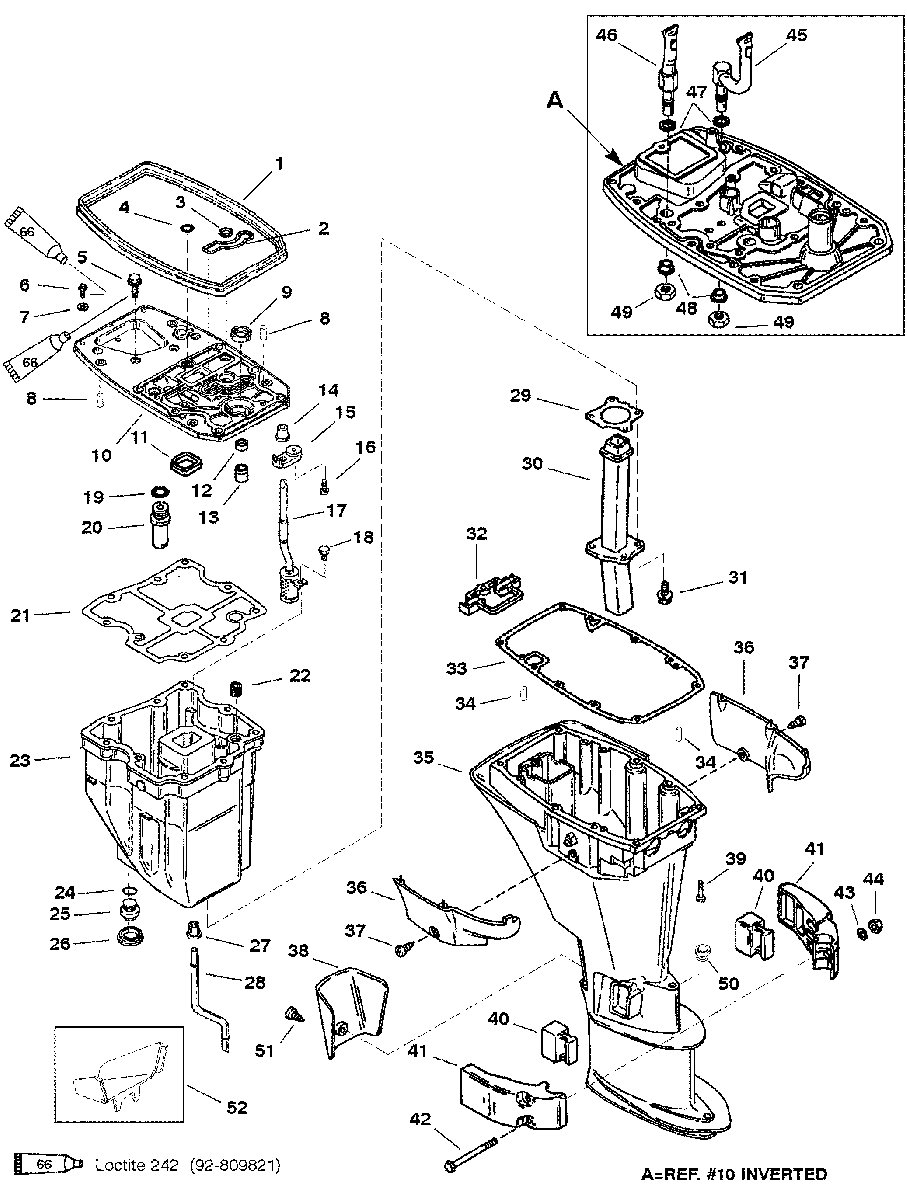

DRIVESHAFT HOUSING для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909
-
№АртикулНазвание
-
126-825807 SEAL-RUBBERSEAL-RUBBER
-
226-825806 SEALSEAL
-
326-825805 DAMPERDAMPER
-
425-825804 O-RINGO-RING
-
510-825773 BOLTBOLT
-
610-8M4503518 SCREW (M6 X 20)SCREW (M6 X 20)
-
712-29245 WASHERWASHER
-
817-82364M PIN-DOWELPIN-DOWEL
-
926-827406 SEAL-OILSEAL-OIL
-
10825574A2 EXHAUST GUIDEEXHAUST GUIDE
-
11825771 SEALSEAL
-
1226-85023 SEAL-OILSEAL-OIL
-
13827395 HOUSING-SEALHOUSING-SEAL
-
14825580 SEALSEAL
-
15825581 GUIDEGUIDE
-
1610-825582 SCREWSCREW
-
17825766 STRAINERSTRAINER
-
1810-825767 BOLTBOLT
-
1925-825579 O-RINGO-RING
-
20825578A1 RELIEF VALVERELIEF VALVE
-
2127-8257741 GASKET-OIL PANGASKET-OIL PAN
-
22825765 SEALSEAL
-
23825764 OIL PANOIL PAN
-
2425-825770 O-RINGO-RING
-
25825769 DRAIN PLUGDRAIN PLUG
-
26825768 DAMPERDAMPER
-
2726-827241 SEALSEAL
-
2832-825775 WATER TUBE
(SHORT)WATER TUBE
(SHORT) -
2832-826035 WATER TUBE
(LONG)WATER TUBE
(LONG) -
2927-8258281 GASKETGASKET
-
30825772T EXHAUST MANIFOLDEXHAUST MANIFOLD
-
3110-825773 BOLTBOLT
-
32825777 COVERCOVER
-
3327-8257781 GASKETGASKET
-
3417-82364M PIN-DOWELPIN-DOWEL
-
351500-825538F1 HOUSING ASSEMBLY
(SHORT) BLACKHOUSING ASSEMBLY
(SHORT) BLACK -
351500-825835F1 HOUSING ASSEMBLY
(LONG) BLACKHOUSING ASSEMBLY
(LONG) BLACK -
351500-825538F2 HOUSING ASSEMBLY
(SHORT) GRAYHOUSING ASSEMBLY
(SHORT) GRAY -
351500-825835F2 HOUSING ASSEMBLY
(LONG) GRAYHOUSING ASSEMBLY
(LONG) GRAY -
36825796F1 COVER
(PORT) BLACKCOVER
(PORT) BLACK -
36825797F1 COVER
(STARBOARD) BLACKCOVER
(STARBOARD) BLACK -
36825796F2 COVER
(PORT) GRAYCOVER
(PORT) GRAY -
36825797F2 COVER
(STARBOARD) GRAYCOVER
(STARBOARD) GRAY -
3710-4007841 SCREW (SELF-TAPPING)SCREW (SELF-TAPPING)
-
38825798F1 COVER-OIL DRAIN
(BLACK)COVER-OIL DRAIN
(BLACK) -
38825798F1 COVER-OIL DRAIN
(GRAY)COVER-OIL DRAIN
(GRAY) -
3910-830106 SCREW (M8 X 40)SCREW (M8 X 40)
-
408M0039074 MOUNTMOUNT
-
4142374F6 COVER-MOUNT
(BLACK)COVER-MOUNT
(BLACK) -
4142374F6 COVER-MOUNT
(GRAY)COVER-MOUNT
(GRAY) -
4210-4009238 SCREW-MOUNT COVERSCREW-MOUNT COVER
-
4313-400256 LOCKWASHERLOCKWASHER
-
4411-400212 NUT-COVER SCREWNUT-COVER SCREW
-
45826682 PIPEPIPE
-
46825575 PIPEPIPE
-
4712-84273M WASHERWASHER
-
48827336 BUSHINGBUSHING
-
4911-84282M NUTNUT
-
5026-827947 SEALSEAL
-
5110-40056105 SCREW (M5 X 10)SCREW (M5 X 10)
-
52828364 FUNNEL-OIL DRAINFUNNEL-OIL DRAIN
-
-27-825847A95 GASKET SETGASKET SET
