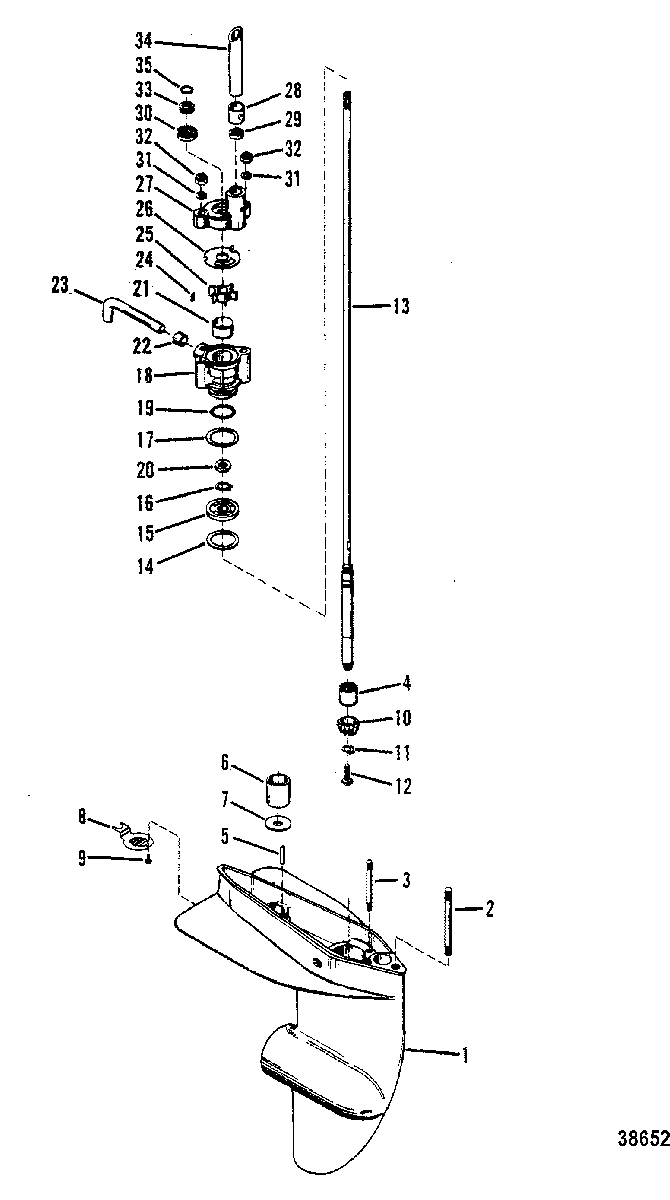

GEAR HOUSING(DRIVESHAFT) для Mercury - 9.8 5206550 & Up

  • №
    Артикул
    Название
  • -
    1630-7360A12 GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • -
    1630-7360A13 GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • -
    1630-7360A29 GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • -
    1630-7360A30 GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 1
    1630-7360A11 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-58138 STUD, GEAR HOUSING (3-7/16")
    STUD, GEAR HOUSING (3-7/16")
  • 3
    16-58136 STUD, WATER PUMP (2-3/4")
    STUD, WATER PUMP (2-3/4")
  • 4
    31-22756 BEARING, Roller
    BEARING, Roller
  • 5
    17-20032 PIN, Dowel
    PIN, Dowel
  • 6
    26-33613 SEAL, RUBBER
    SEAL, RUBBER
  • 7
    23-86215 BEARING, NYLON
    BEARING, NYLON
  • 8
    35-33425 SCREEN, INTAKE
    SCREEN, INTAKE
  • 9
    10-28642 SCREW, (#2 x 0.25), INTAKE SCREEN
    SCREW, (#2 x 0.25), INTAKE SCREEN
  • 10
    43-98696 GEAR, Pinion
    GEAR, Pinion
  • 11
    14-30377 TAB WASHER, PINION GEAR SCREW
    TAB WASHER, PINION GEAR SCREW
  • 12
    10-30376 SCREW, (#12-28 x .750), PINION GEAR TO DRIVE SHAFT
    SCREW, (#12-28 x .750), PINION GEAR TO DRIVE SHAFT
  • 13
    45-75034 DRIVESHAFT
    (SHORT) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    DRIVESHAFT
    (SHORT) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • 13
    45-75033 DRIVESHAFT
    (LONG) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    DRIVESHAFT
    (LONG) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • 13
    45-95873A1 DRIVESHAFT
    (SHORT) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    DRIVESHAFT
    (SHORT) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 13
    45-95874A1 DRIVESHAFT
    (LONG) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    DRIVESHAFT
    (LONG) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 14
    15-30527A1 SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
    SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
  • 15
    30-70944 BEARING, Ball, DRIVE SHAFT
    BEARING, Ball, DRIVE SHAFT
  • 16
    53-30523 RING, Retaining, BALL BEARING TO DRIVE SHAFT
    RING, Retaining, BALL BEARING TO DRIVE SHAFT
  • 17
    15-30527A1 SHIM ASSEMBLY, BALL BEARING (.002-2-5-10)
    SHIM ASSEMBLY, BALL BEARING (.002-2-5-10)
  • 18
    46-70941T01 HOUSING ASSEMBLY, Water Pump
    (USE WITH 47-89981 IMPELLER)
    HOUSING ASSEMBLY, Water Pump
    (USE WITH 47-89981 IMPELLER)
  • 18
    46-92970A1 HOUSING ASSEMBLY, Water Pump
    (USE WITH 47-89980 IMPELLER)
    HOUSING ASSEMBLY, Water Pump
    (USE WITH 47-89980 IMPELLER)
  • 19
    25-29439 O-RING
    O-RING
  • 20
    26-30900T SEAL, Oil
    (USE WITH 47-89981 IMPELLER)
    SEAL, Oil
    (USE WITH 47-89981 IMPELLER)
  • 20
    26-897153 SEAL, Oil
    (USE WITH 47-89980 IMPELLER)
    SEAL, Oil
    (USE WITH 47-89980 IMPELLER)
  • 21
    70977T INSERT
    INSERT
  • 22
    26-33613 SEAL, WATER INTAKE TUBE
    SEAL, WATER INTAKE TUBE
  • 23
    32-34293 TUBE, WATER INTAKE
    TUBE, WATER INTAKE
  • 24
    28-8M0032835 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 25
    47-89981 IMPELLER
    (MOLDED 47-89981 - .456 I.D.)
    IMPELLER
    (MOLDED 47-89981 - .456 I.D.)
  • 25
    47-89980 IMPELLER
    (MOLDED 47-89980 - .438 I.D.)
    IMPELLER
    (MOLDED 47-89980 - .438 I.D.)
  • 26
    46895 FACE PLATE, WATER PUMP
    FACE PLATE, WATER PUMP
  • 27
    93224A1 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • 28
    26-36558 SEAL, WATER PUMP COVER
    SEAL, WATER PUMP COVER
  • 29
    23-13127 BEARING, NYLON - WATER PUMP COVER
    BEARING, NYLON - WATER PUMP COVER
  • 30
    26-30913 SEAL, Oil, WATER PUMP COVER
    SEAL, Oil, WATER PUMP COVER
  • 31
    12-20533 WASHER, WATER PUMP STUDS
    WASHER, WATER PUMP STUDS
  • 32
    11-8267089 NUT, (.250-28), WATER PUMP STUDS
    NUT, (.250-28), WATER PUMP STUDS
  • 33
    25-30526 RING, RUBBER
    RING, RUBBER
  • 34
    23-31792T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 35
    25-62704 O-RING, (.362 x .103), DRIVE SHAFT
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    O-RING, (.362 x .103), DRIVE SHAFT
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • -
    27-89014A80 GASKET SET
    GASKET SET
  • -
    26-77066A1 SEAL KIT, Water Pump
    SEAL KIT, Water Pump
  • -
    46-70941A3 REPAIR KIT, Water Pump
    (Use with 47-89981 Impeller)
    REPAIR KIT, Water Pump
    (Use with 47-89981 Impeller)
  • -
    46-92970A5 REPAIR KIT, Water Pump
    (Use with 47-89980 Impeller)
    REPAIR KIT, Water Pump
    (Use with 47-89980 Impeller)
