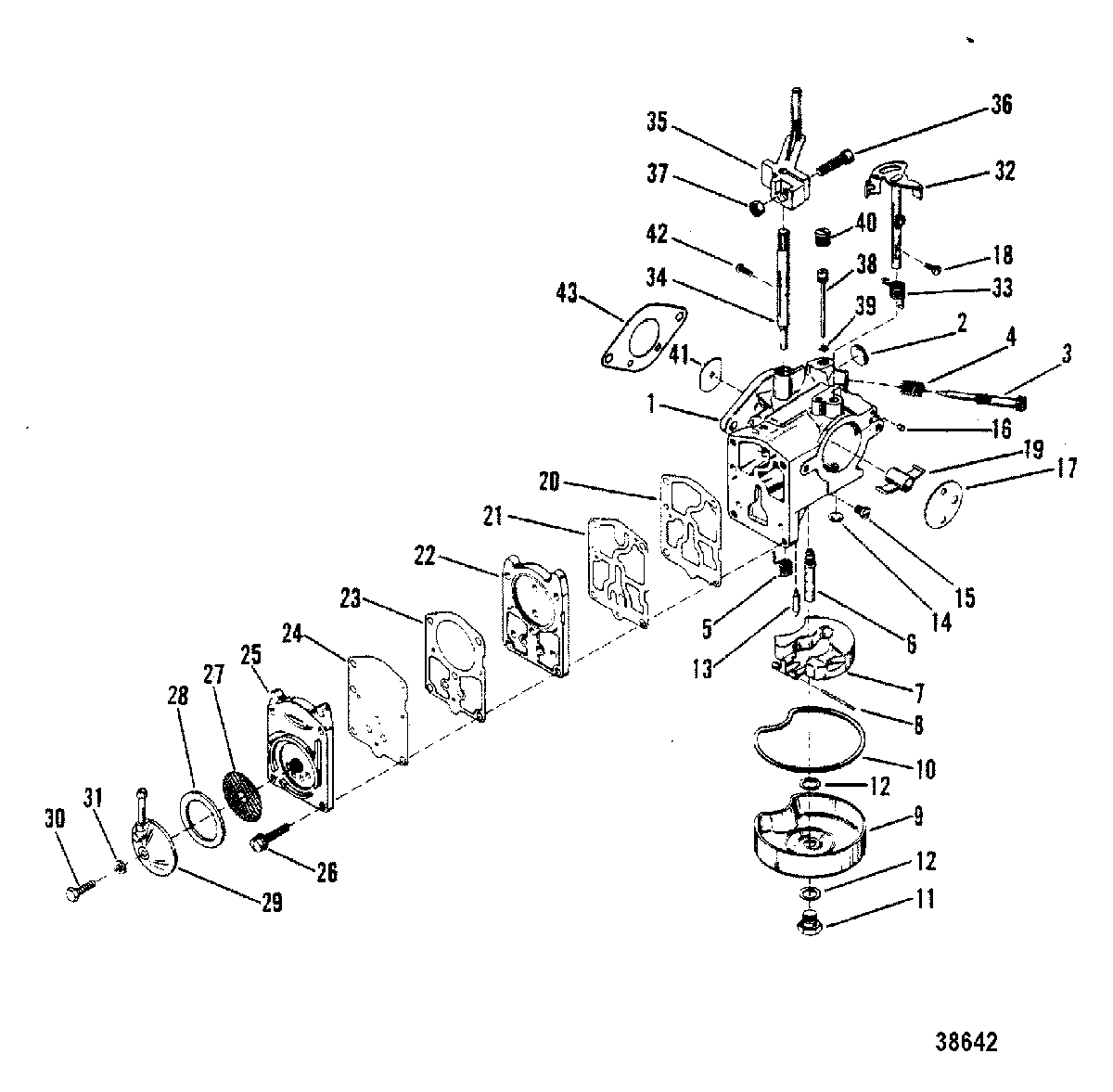

CARBURETOR(TILLOTSON STAMPED 1364-7902 or 1364-7909) для Mercury - 9.8 5206550 & Up
-
№АртикулНазвание
-
11364-8783A14 CARBURETOR ASSEMBLY, COMPLETE
(7.5)CARBURETOR ASSEMBLY, COMPLETE
(7.5) -
11364-8782A13 CARBURETOR ASSEMBLY, COMPLETE
(9.8)CARBURETOR ASSEMBLY, COMPLETE
(9.8) -
2NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)
-
3NSS NOT SOLD SEPARATE, ISCREW, DLE MIXTURENOT SOLD SEPARATE, ISCREW, DLE MIXTURE
-
4NSS NOT SOLD SEPARATE, SPRING, IDLE MIXTURE SCREWNOT SOLD SEPARATE, SPRING, IDLE MIXTURE SCREW
-
5NSS NOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFTNOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFT
-
6NSS NOT SOLD SEPARATE, MAIN NOZZLENOT SOLD SEPARATE, MAIN NOZZLE
-
71395-9293 FLOATFLOAT
-
8NSS NOT SOLD SEPARATE, PIN, FLOATNOT SOLD SEPARATE, PIN, FLOAT
-
91399-5127 BOWL, FuelBOWL, Fuel
-
10NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
111399-5128 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
12NSS NOT SOLD SEPARATE, GASKET, FUEL BOWL SCREWNOT SOLD SEPARATE, GASKET, FUEL BOWL SCREW
-
131399-6141 NEEDLE, InletNEEDLE, Inlet
-
14NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (SMALL)NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (SMALL)
-
151399-7570 JET, .040, MAIN FUEL
(7.5)JET, .040, MAIN FUEL
(7.5) -
151399-2407 JET, Main Fuel (.039)
(9.8)JET, Main Fuel (.039)
(9.8) -
16NSS NOT SOLD SEPARATE, PLUG, BODY CHANNELNOT SOLD SEPARATE, PLUG, BODY CHANNEL
-
171399-7274 SHUTTER, ChokeSHUTTER, Choke
-
18NSS NOT SOLD SEPARATE, SCREW, CHOKE SHUTTERNOT SOLD SEPARATE, SCREW, CHOKE SHUTTER
-
1969764 VENTURIVENTURI
-
20NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGMNOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM
-
21NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
221399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
23NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGMNOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM
-
24NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
251399-5131 BODY, STRAINERBODY, STRAINER
-
261395-808612 SCREW, STRAINER BODYSCREW, STRAINER BODY
-
271399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
281399-5207 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
2999941 COVER, STRAINER (INLET)COVER, STRAINER (INLET)
-
30NSS NOT SOLD SEPARATE, SCREW, STRAINER COVERNOT SOLD SEPARATE, SCREW, STRAINER COVER
-
31NSS NOT SOLD SEPARATE, GASKET, STRAINER COVER SCREWNOT SOLD SEPARATE, GASKET, STRAINER COVER SCREW
-
321399-7273 SHAFT, ChokeSHAFT, Choke
-
33NSS NOT SOLD SEPARATE, SPRING, RETURN - CHOKE SHAFTNOT SOLD SEPARATE, SPRING, RETURN - CHOKE SHAFT
-
341399-7571 SHAFT, ThrottleSHAFT, Throttle
-
3544425 LEVER, THROTTLELEVER, THROTTLE
-
3610-38055 SCREW, (.190-32 x .62), THROTTLE LEVERSCREW, (.190-32 x .62), THROTTLE LEVER
-
3711-87599 NUT, THROTTLE LEVER SCREWNUT, THROTTLE LEVER SCREW
-
38NSS NOT SOLD SEPARATE, IDLE TUBENOT SOLD SEPARATE, IDLE TUBE
-
39NSS NOT SOLD SEPARATE, GASKET, IDLE TUBENOT SOLD SEPARATE, GASKET, IDLE TUBE
-
4010-23178 SCREW, PLUG - IDLE TUBESCREW, PLUG - IDLE TUBE
-
411399-7572 SHUTTER, ThrottleSHUTTER, Throttle
-
42NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTERNOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER
-
4327-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
-1399-5135 GASKET SETGASKET SET
-
-1399-5137 DIAPHRAGM/GASKET KITDIAPHRAGM/GASKET KIT
-
-1399-879194026 REPAIR PARTS KIT
(9.8)REPAIR PARTS KIT
(9.8) -
-1399-879194026 REPAIR PARTS KIT
(7.5)REPAIR PARTS KIT
(7.5) -
-27-89014A80 GASKET SETGASKET SET
