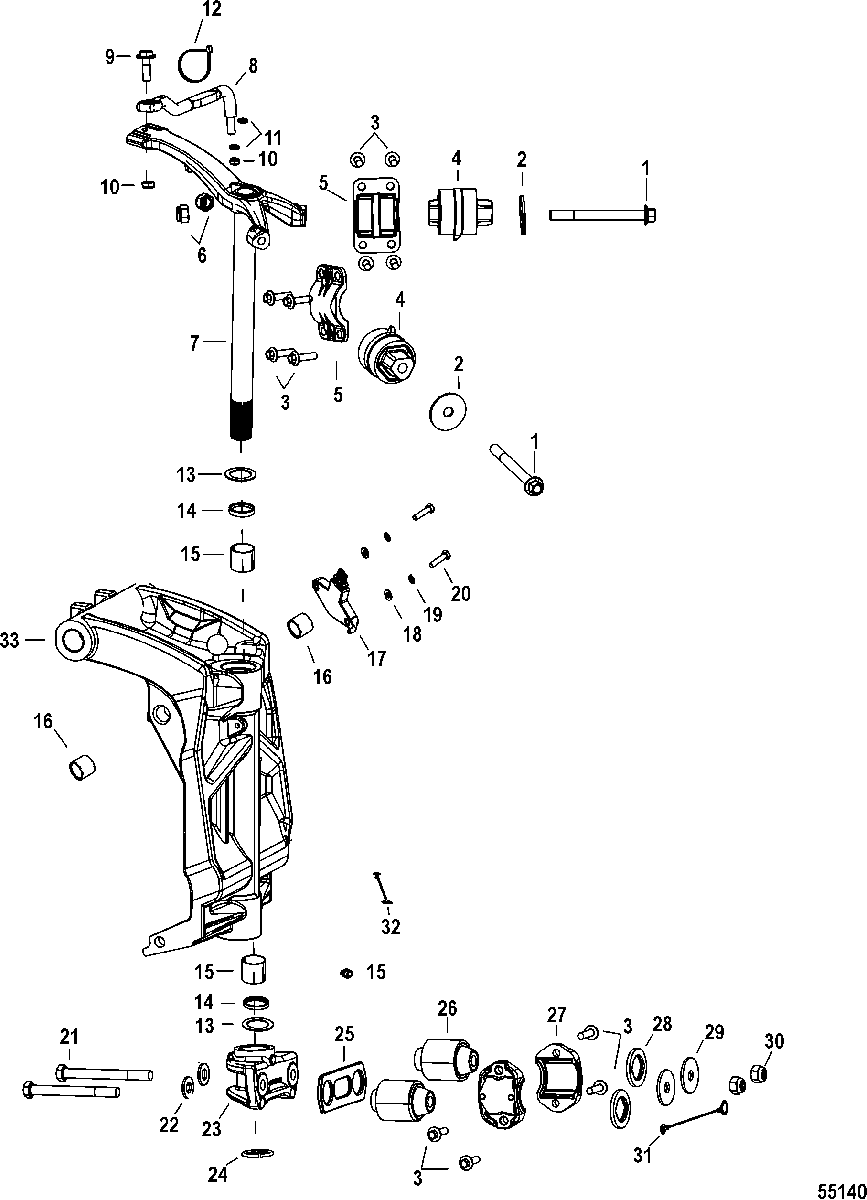

Swivel Bracket and Swivel Pin для Mercury - 90 EFI (4-STROKE) 2B095049 & Up

  • №
    Артикул
    Название
  • 1
    10-8M0088194 SCREW , (M12 X 120 Flg HEX HD)
    SCREW , (M12 X 120 Flg HEX HD)
  • 2
    12-8M0056839 WASHER - UPPER MOUNT SNUBBER
    WASHER - UPPER MOUNT SNUBBER
  • 3
    10-4010730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 4
    8M0056774 UPPER MOUNT ASSEMBLY
    UPPER MOUNT ASSEMBLY
  • 4
    8M0096243 MOUNTS - UPPER
    SeaPro
    MOUNTS - UPPER
    SeaPro
  • 5
    8M0056564 COVER - UPPER MOUNT
    COVER - UPPER MOUNT
  • 6
    11-8M0088290 NUT, (HEX M12 X 1.75)
    NUT, (HEX M12 X 1.75)
  • 7
    8M0091530 SWIVEL TUBE ASSEMBLY
    SWIVEL TUBE ASSEMBLY
  • 8
    92876A12 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 9
    10-849838 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 10
    11-8M0042636 NUT, (.375-24) Brass
    NUT, (.375-24) Brass
  • 11
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    12-816432 THRUST WASHER
    THRUST WASHER
  • 14
    26-8M0034870 SEAL, Swivel Tube
    SEAL, Swivel Tube
  • 15
    23-8M0141339 BUSHING, Swivel Tube Pivot
    BUSHING, Swivel Tube Pivot
  • 16
    23-821207 BUSHING
    BUSHING
  • 17
    8M0094923 SENSOR ASSEMBLY - TRIM
    SENSOR ASSEMBLY - TRIM
  • 18
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 21
    10-40003111 SCREW , (M12 x 120 HEX HD)
    SCREW , (M12 x 120 HEX HD)
  • 22
    12-895062 WASHER
    WASHER
  • 23
    8M0091533 YOKE - BOTTOM
    YOKE - BOTTOM
  • 24
    53-67684 RING, Retaining
    RING, Retaining
  • 25
    8M0084888 SNUBBER
    SNUBBER
  • 26
    8M0056573 LOWER MOUNT ASSEMBLY
    LOWER MOUNT ASSEMBLY
  • 27
    8M0056181 COVER - LOWER MOUNT
    COVER - LOWER MOUNT
  • 28
    12-8M0082052 WASHER - SNUBBER
    WASHER - SNUBBER
  • 29
    12-8M0075817 WASHER , (.50 X 1.75 X .125)
    WASHER , (.50 X 1.75 X .125)
  • 30
    11-897926 NUT, (M12), Nylon Insert
    NUT, (M12), Nylon Insert
  • 31
    88238A20 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 32
    8M0079640 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 33
    1400-8M0107419 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
