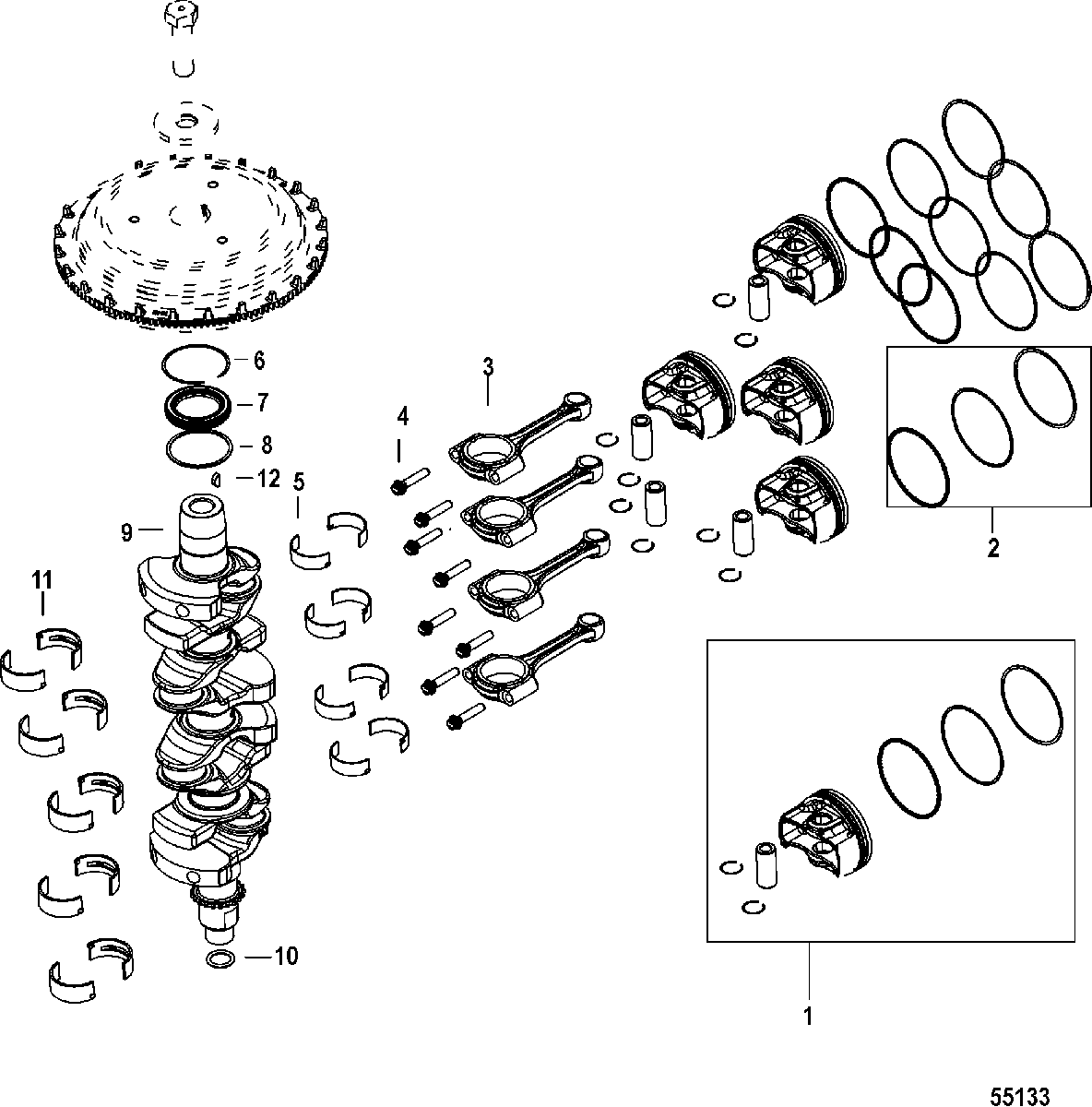

Crankshaft, Pistons and Connecting Rods для Mercury - 90 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
1700-8M0100259 PISTON ASSEMBLYPISTON ASSEMBLY
-
239-8M0090783 RING SET - PISTONRING SET - PISTON
-
3600-8M0107011 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
410-8M6002637 BOLT - CONNECTING RODBOLT - CONNECTING ROD
-
58M0090780 CONNECTING ROD BEARING - ORANGECONNECTING ROD BEARING - ORANGE
-
5600-8M0091376 CONNECTING ROD BEARING - WHITECONNECTING ROD BEARING - WHITE
-
5600-8M0091377 CONNECTING ROD BEARING - BLUECONNECTING ROD BEARING - BLUE
-
653-8M0057585 RING - RETAININGRING - RETAINING
-
726-8M6002225 SEAL - TOP MAIN BEARINGSEAL - TOP MAIN BEARING
-
823-8M0057586 SPACER - SEALSPACER - SEAL
-
9400-8M0090777 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
1025-8M0034912 O-RING, M3.78 X 21.32O-RING, M3.78 X 21.32
-
11500-8M0090779 MAIN BEARING - ORANGEMAIN BEARING - ORANGE
-
11500-8M0090797 MAIN BEARING - WHITEMAIN BEARING - WHITE
-
11500-8M0091378 MAIN BEARING - BLUEMAIN BEARING - BLUE
-
11500-8M0091379 MAIN BEARING - GREENMAIN BEARING - GREEN
-
1228-91800 KEY, WoodruffKEY, Woodruff
