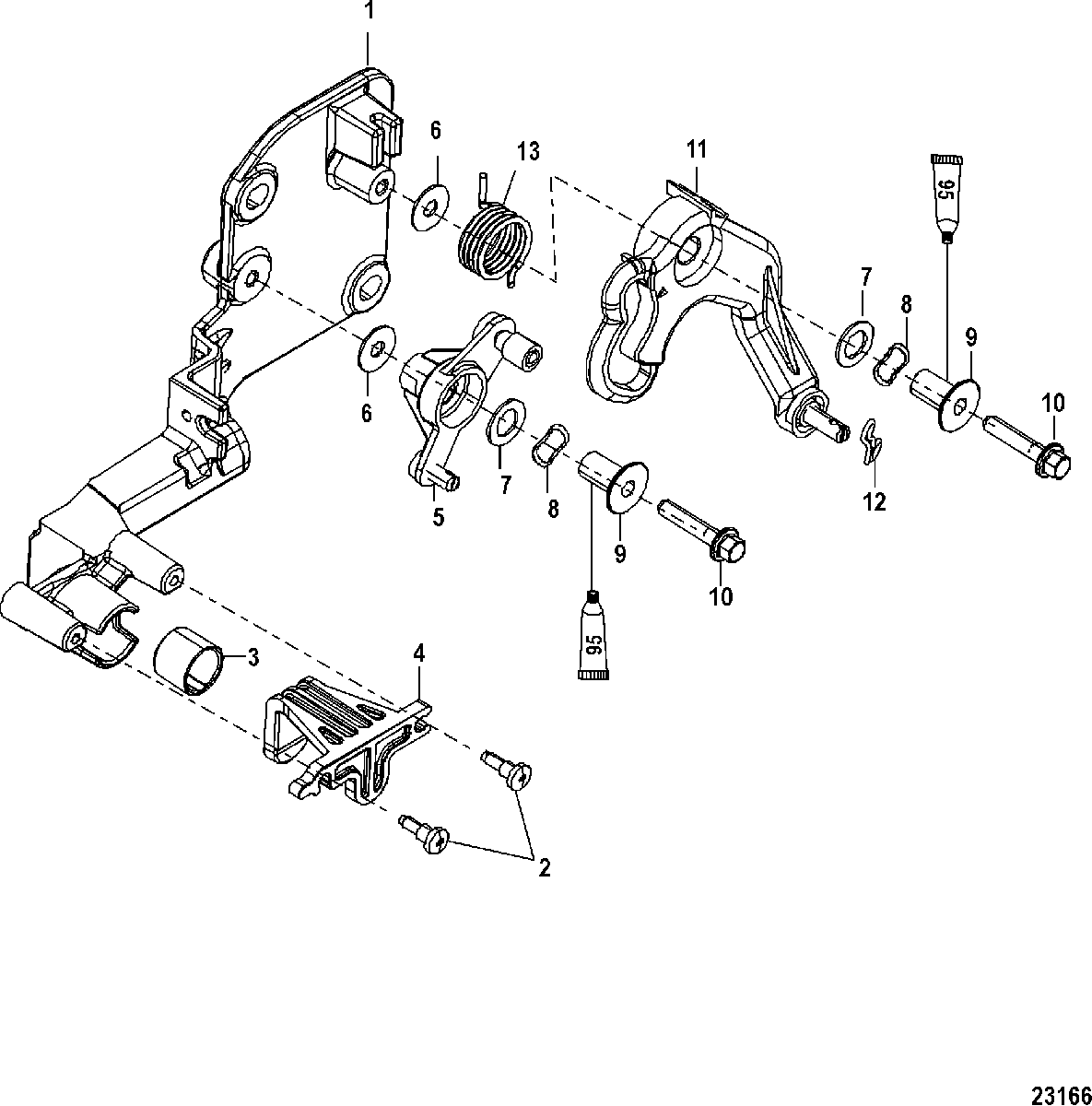

Throttle Bracket Assembly для Mercury - 90 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    897763T03 BRACKET ASSEMBLY, Throttle
    SN# 1B418905 & Below
    BRACKET ASSEMBLY, Throttle
    SN# 1B418905 & Below
  • 1
    897763T03 BRACKET ASSEMBLY, Throttle
    SN# 0P472784 & Below
    BRACKET ASSEMBLY, Throttle
    SN# 0P472784 & Below
  • 1
    897763T03 BRACKET ASSEMBLY, Throttle
    SN# 1B418906 & Up
    BRACKET ASSEMBLY, Throttle
    SN# 1B418906 & Up
  • 1
    897763T03 BRACKET ASSEMBLY, Throttle
    SN# 0P472785 & Up
    BRACKET ASSEMBLY, Throttle
    SN# 0P472785 & Up
  • 2
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 3
    824015 CUP, Barrel Retainer
    CUP, Barrel Retainer
  • 4
    898048T LATCH, Control Cable
    LATCH, Control Cable
  • 5
    897765T01 LEVER ASSEMBLY, Throttle Follower
    LEVER ASSEMBLY, Throttle Follower
  • 6
    12-897936 WASHER
    WASHER
  • 7
    12-897937 WASHER
    WASHER
  • 8
    13-898093 WASHER, Wave
    WASHER, Wave
  • 9
    23-897935 SPACER
    SPACER
  • 10
    10-8M0103808 SCREW, (M6 x 30 MM) Stainless Steel
    SCREW, (M6 x 30 MM) Stainless Steel
  • 11
    8M0008288 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 12
    8M0001157 PIN, Bow Tie Clip
    PIN, Bow Tie Clip
  • 13
    24-897535005 SPRING, Throttle Cam Return
    SPRING, Throttle Cam Return
