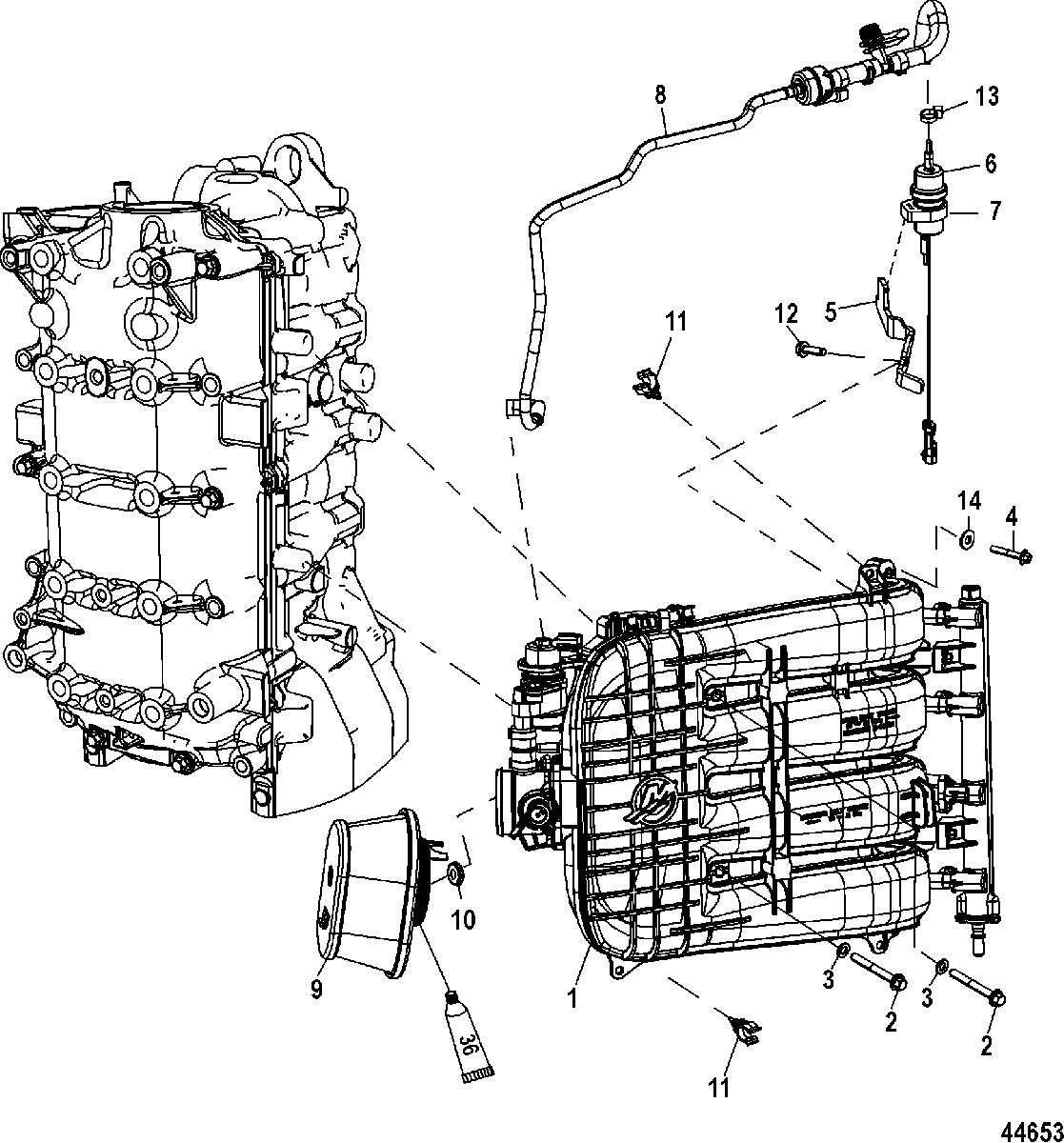

Integrated Air Fuel Module для Mercury - 90 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    892952T06 IAFM ASSEMBLY
    SN# 1B587015 & Below
    IAFM ASSEMBLY
    SN# 1B587015 & Below
  • 1
    892952T06 IAFM ASSEMBLY
    SN# 1B587016 & Up
    IAFM ASSEMBLY
    SN# 1B587016 & Up
  • -
    8M6002790 MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    10-88552550 SCREW, (M6 x 50 MM) Stainless Steel
    SCREW, (M6 x 50 MM) Stainless Steel
  • 3
    12-4002316 WASHER
    WASHER
  • 4
    10-8M0048051 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 5
    897646001 BRACKET, Vent Canister
    BRACKET, Vent Canister
  • 6
    884545A02 CANISTER ASSEMBLY, Vent
    CANISTER ASSEMBLY, Vent
  • 7
    25-897434 GROMMET
    GROMMET
  • 8
    8M0126307 PURGE VENT ASSEMBLY
    PURGE VENT ASSEMBLY
  • 9
    35-8M0082911 FILTER, Air
    FILTER, Air
  • 10
    8M0032134 RESTRICTOR PLATE
    75/80EU SN# 1B521878 & Below
    RESTRICTOR PLATE
    75/80EU SN# 1B521878 & Below
  • 10
    8M0032134 RESTRICTOR PLATE
    75/80EU SN# 1B521879 & Up
    RESTRICTOR PLATE
    75/80EU SN# 1B521879 & Up
  • 11
    54-897559 CLIP
    CLIP
  • 12
    10-897445501 SCREW, (M6 x 20 MM)
    SCREW, (M6 x 20 MM)
  • 13
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 14
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
