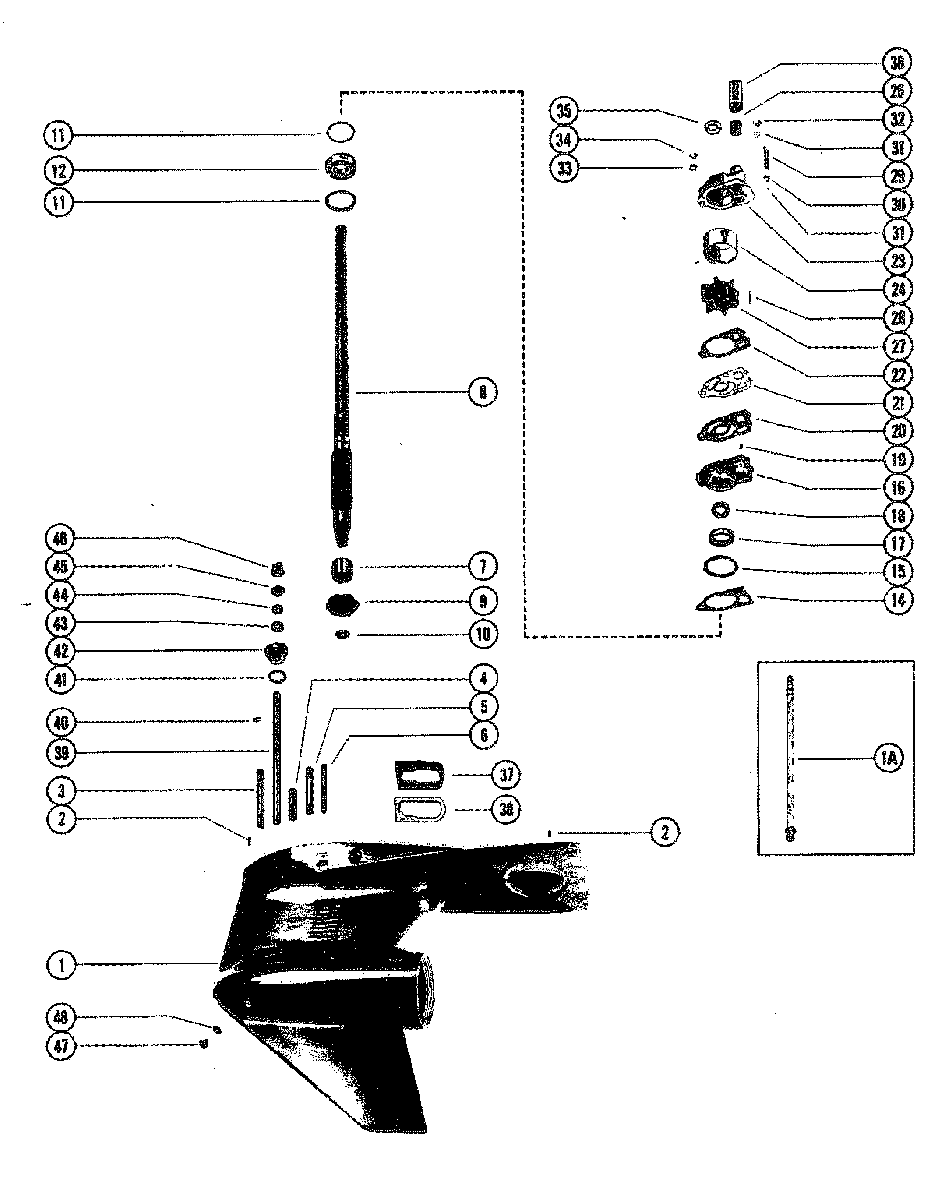

GEAR HOUSING (DRIVE SHAFT) для Mercury - 90 (6 CYL.) 8071020 AND UP
-
№АртикулНазвание
-
--1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11655-7333T23 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
1A22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETERCONNECTOR ASSEMBLY, SPEEDOMETER
-
217-8M0084726 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
316-57921 STUD, GEAR HOUSING (4")STUD, GEAR HOUSING (4")
-
416-8M0133358 STUD, GEAR HOUSING (2-1/16)STUD, GEAR HOUSING (2-1/16)
-
516-8M0034463 STUD, WATER PUMP (3-3/8")STUD, WATER PUMP (3-3/8")
-
616-69501 STUD, WATER PUMP (3-1/8")STUD, WATER PUMP (3-1/8")
-
731-32898T ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
845-42646 DRIVE SHAFTDRIVE SHAFT
-
943-68548T3 PINION GEAR, DRIVE SHAFTPINION GEAR, DRIVE SHAFT
Производитель Mercury-Mercruiser -
1011-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1123-70412 SPACER, BALL BEARINGSPACER, BALL BEARING
-
1115-57007A1 SHIM, BALL BEARINGSHIM, BALL BEARING
-
1231-69220T ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
1427-856704 GASKET, WATER PUMPGASKET, WATER PUMP
-
1525-33145 "O" RING, WATER PUMP"O" RING, WATER PUMP
-
1646-96146A5 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1726-94038 OIL SEAL, WATER PUMPOIL SEAL, WATER PUMP
-
1826-16977 OIL SEAL, WATER PUMPOIL SEAL, WATER PUMP
-
1917-8M0084627 DOWEL PIN, WATER PUMPDOWEL PIN, WATER PUMP
-
2027-8M0090319 GASKET, LOWER - WATER PUMP TO FACE PLATEGASKET, LOWER - WATER PUMP TO FACE PLATE
-
21324351 FACE PLATEFACE PLATE
-
2227-858524 GASKET, UPPER - FACE PLATE TO WATER PUMPGASKET, UPPER - FACE PLATE TO WATER PUMP
-
2346-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2448752T INSERT, WATER PUMPINSERT, WATER PUMP
-
2626-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2828-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2910-30720 SCREW, WATER PUMP (1/4-20 - HEX HEAD)SCREW, WATER PUMP (1/4-20 - HEX HEAD)
-
2910-96411 SCREW, WATER PUMP (14-8 - HEX WASHER HEAD)SCREW, WATER PUMP (14-8 - HEX WASHER HEAD)
-
3013-26992 LOCKWASHER, WATER PUMP SCREWLOCKWASHER, WATER PUMP SCREW
-
3112-29245 WASHER, WATER PUMP SCREW AND STUDWASHER, WATER PUMP SCREW AND STUD
-
3211-35888 NUT, WATER PUMP SCREWNUT, WATER PUMP SCREW
-
3312-36001 WASHER, WATER PUMP STUDWASHER, WATER PUMP STUD
-
3411-82670911 ,NUT, WATER PUMP STUD,NUT, WATER PUMP STUD
-
3525-30271 RING, RUBBER - DRIVE SHAFTRING, RUBBER - DRIVE SHAFT
-
3623-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3737641001 SEAL, EXHAUSTSEAL, EXHAUST
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4053-29641 "E" RING, RETAINING - SHIFT SHAFT"E" RING, RETAINING - SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSJING ASSEMBLY, SHIFT SHAFTBUSJING ASSEMBLY, SHIFT SHAFT
-
4326-8164641 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4412-77674 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER
NOT USED WITH FULL POWER TRIMSPACER, LOWER
NOT USED WITH FULL POWER TRIM -
4643308T1 CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIMCAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4722-8M0058389 PLUG, DRAIN (MAGNETIC)PLUG, DRAIN (MAGNETIC)
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
-46-96148A8 WATER PUMP KITWATER PUMP KIT
-
-26-55682A1 SEAL KITSEAL KIT
-
-53168A1 HEAVY DUTY WATER PUMP KITHEAVY DUTY WATER PUMP KIT
-
-27-85653A87 GASKET SETGASKET SET
