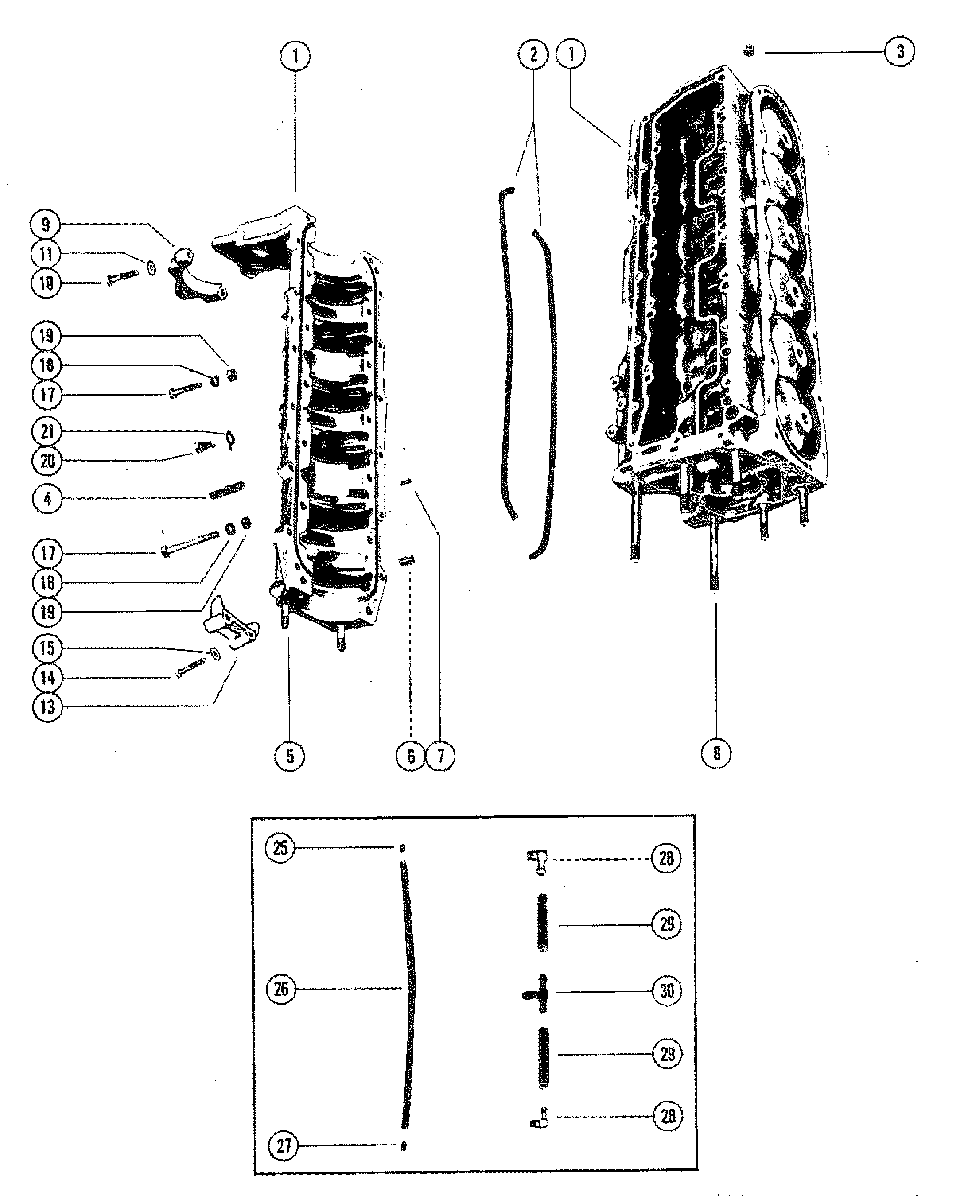

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 90 (6 CYL.) 8071020 AND UP

  • №
    Артикул
    Название
  • 1
    852-8311A4 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
  • 1
    852-8311A4 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 2
    27-53862 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    66517 RESTRICTION, CRANKCASE BLEED
    RESTRICTION, CRANKCASE BLEED
  • 4
    16-64936 STUD, CARBURETOR (1-3/16")
    STUD, CARBURETOR (1-3/16")
  • 5
    16-64281 STUD, CRANKCASE TO EXTENSION PLATE (1-7/8")
    STUD, CRANKCASE TO EXTENSION PLATE (1-7/8")
  • 6
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 7
    17-63779 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 8
    16-64282 STUD, CYLINDER BLOCK TO PLATE (4")
    STUD, CYLINDER BLOCK TO PLATE (4")
  • 9
    86473 COVER, STARTER MOTOR - TOP
    COVER, STARTER MOTOR - TOP
  • 10
    10-73279 SCREW, TOP COVER (1-7/8")
    SCREW, TOP COVER (1-7/8")
  • 11
    13-26993 LOCKWASHER, TOP COVER SCREWS
    LOCKWASHER, TOP COVER SCREWS
  • 13
    76867 COVER, STARTER MOTOR - BOTTOM
    COVER, STARTER MOTOR - BOTTOM
  • 14
    10-73279 SCREW, BOTTOM COVER (1-7/8")
    SCREW, BOTTOM COVER (1-7/8")
  • 15
    13-26993 LOCKWASHER, BOTTOM COVER SCREW
    LOCKWASHER, BOTTOM COVER SCREW
  • 17
    10-57841 SCREW, CRANKCASE TO CYLINDER BLOCK (2-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2-3/4")
  • 17
    10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
  • 17
    10-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
  • 17
    10-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
  • 18
    12-22753 WASHER, CRANKCASE SCREWS
    WASHER, CRANKCASE SCREWS
  • 19
    11-29250 NUT, CRANKCASE SCREWS (LOWER)
    NUT, CRANKCASE SCREWS (LOWER)
  • 20
    10-20359 SCREW, CENTER MAIN BEARING LOCKING
    SCREW, CENTER MAIN BEARING LOCKING
  • 21
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 25
    21-42866 CHECK VALVE, BLEED HOSE - UPPER
    CHECK VALVE, BLEED HOSE - UPPER
  • 26
    32-9938779 HOSE, BLEED (22")
    HOSE, BLEED (22")
  • 27
    21-428671 CHECK VALVE, BLEED HOSE - LOWER
    CHECK VALVE, BLEED HOSE - LOWER
  • 28
    22-996642 ELBOW, BALANCE HOSE
    ELBOW, BALANCE HOSE
  • 29
    32-8M0108355 HOSE, BALANCE - MAIN BEARING (6-1/4")
    HOSE, BALANCE - MAIN BEARING (6-1/4")
  • 30
    22-8585531 TEE, BALANCE HOSE
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
    TEE, BALANCE HOSE
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
  • 30
    22-97231 TEE, BLEED BASE
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    TEE, BLEED BASE
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • -
    27-85653A87 GASKET SET
    GASKET SET
