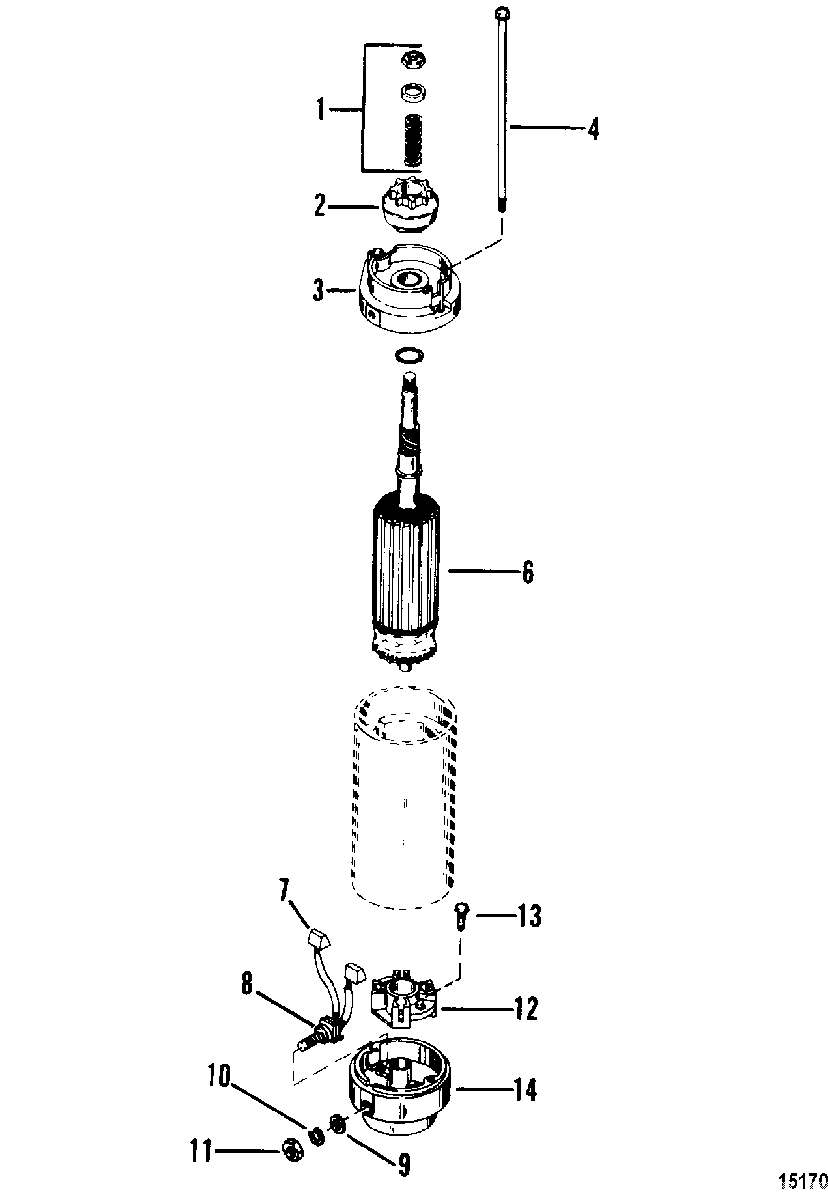

STARTER MOTOR ASSEMBLY для Mercury - 90 (6 CYL.) 6436123 & Up

  • №
    Артикул
    Название
  • -
    50-898265010 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    90644 DRIVE KIT
    DRIVE KIT
  • 2
    685753 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 3
    75660 PLATE, DRIVE END
    PLATE, DRIVE END
  • 4
    10-74968 BOLT, THRU
    BOLT, THRU
  • 6
    74964 ARMATURE
    ARMATURE
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    23-57387 BUSHING, INSULATING
    BUSHING, INSULATING
  • 9
    12-38013 WASHER, INPUT STUD
    WASHER, INPUT STUD
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel, INPUT STUD
    LOCKWASHER, (.250) Stainless Steel, INPUT STUD
  • 11
    11-20890 NUT, (.250-20), INPUT STUD
    NUT, (.250-20), INPUT STUD
  • 12
    898265014 HOLDER, BRUSH
    HOLDER, BRUSH
  • 13
    10-68586 SCREW, BRUSH AND HOLDER
    SCREW, BRUSH AND HOLDER
  • 14
    15386001 END CAP, COMMUTATOR
    END CAP, COMMUTATOR
