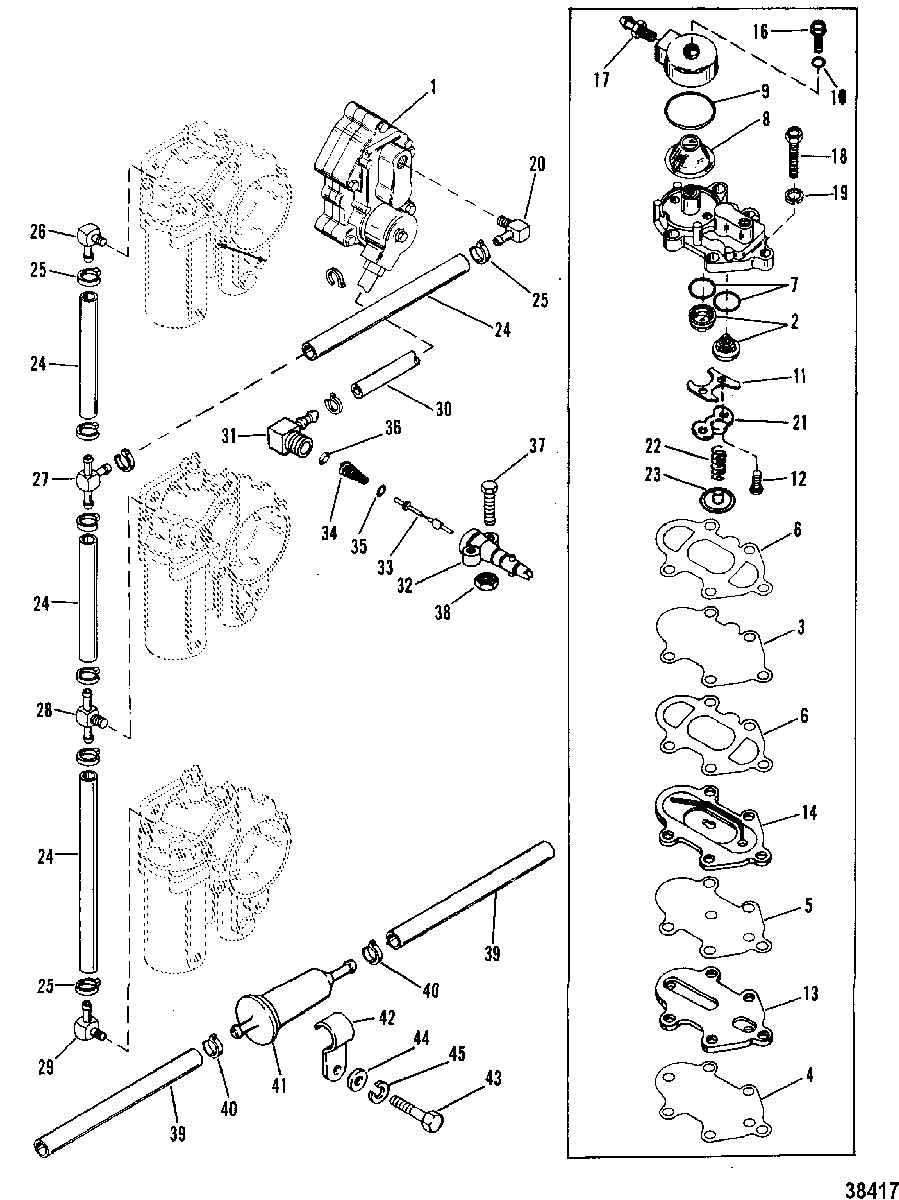

FUEL PUMP AND FUEL LINES(OLD STYLE FUEL PUMP) для Mercury - 90 (6 CYL.) 6436123 & Up

  • №
    Артикул
    Название
  • 1
    13527A1 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-8M0084277 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    89031A3 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, GASKET-FUEL PUMP
    NOT SOLD SEPARATE, GASKET-FUEL PUMP
  • 5
    NSS NOT SOLD SEPARATE, GASKET-PULSE CHAMBER
    NOT SOLD SEPARATE, GASKET-PULSE CHAMBER
  • 6
    NSS NOT SOLD SEPARATE, GASKET-FUEL PUMP
    NOT SOLD SEPARATE, GASKET-FUEL PUMP
  • 7
    NSS NOT SOLD SEPARATE, GASKET-CHECK VALVE TO HOUSING
    NOT SOLD SEPARATE, GASKET-CHECK VALVE TO HOUSING
  • 8
    35-59072 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 9
    25-35480 O-RING, (1.237 x .103), FUEL INLET COVER
    O-RING, (1.237 x .103), FUEL INLET COVER
  • 10
    25-38933 O-RING, COVER SCREW
    O-RING, COVER SCREW
  • 11
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 12
    10-43723 SCREW, (#6-32 x .500), RETAINER
    SCREW, (#6-32 x .500), RETAINER
  • 13
    86295 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 14
    879901 PULSE CHAMBER, FUEL PUMP
    PULSE CHAMBER, FUEL PUMP
  • 15
    35-91078A1 COVER ASSEMBLY, FUEL INLET
    COVER ASSEMBLY, FUEL INLET
  • 16
    10-89766 SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER
    SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER
  • 17
    22-64705 FITTING, INLET COVER
    FITTING, INLET COVER
  • 18
    10-41772 SCREW, FUEL PUMP (1-1/2")
    SCREW, FUEL PUMP (1-1/2")
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    22-19688 FITTING, FUEL OUTLET
    FITTING, FUEL OUTLET
  • 21
    86026 RETAINER, SPRING
    RETAINER, SPRING
  • 22
    24-86207 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 23
    86252 CAP, SPRING END
    CAP, SPRING END
  • 24
    32-8M0108355 LINE, (57.00 Inches Bulk) (W/O INLINE FILTER)
    LINE, (57.00 Inches Bulk) (W/O INLINE FILTER)
  • 25
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 26
    22-19688 FITTING, ELBOW - UPPER CARBURETOR
    FITTING, ELBOW - UPPER CARBURETOR
  • 27
    22-73318 TEE, Plastic, FUEL LINE
    TEE, Plastic, FUEL LINE
  • 28
    22-64706001 TEE, CENTER CARBURETOR
    TEE, CENTER CARBURETOR
  • 29
    22-19688 FITTING, LOWER CARBURETOR
    FITTING, LOWER CARBURETOR
  • 30
    32-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (18-1/2")
    LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (18-1/2")
  • 31
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 32
    30186 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 33
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 34
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 35
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 36
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 37
    10-36154 SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTON COWL
    SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTON COWL
  • 38
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 39
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 40
    54-68424 CLAMP, FUEL LINE -WITH INLINE FILTER
    CLAMP, FUEL LINE -WITH INLINE FILTER
  • 41
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • 42
    54-26404 CLAMP, FUEL FILTER -WITH INLINE FILTER
    CLAMP, FUEL FILTER -WITH INLINE FILTER
  • 43
    10-78291 SCREW, (.190-24 x .500), FUEL FILTER CLAMP -WITH INLINE FILTER
    SCREW, (.190-24 x .500), FUEL FILTER CLAMP -WITH INLINE FILTER
  • 44
    8M0084613 C WASHER
    C WASHER
  • 45
    13-26996 LOCKWASHER, (#10) Stainless Steel, CLAMP SCREW -WITH INLINE FILTER
    LOCKWASHER, (#10) Stainless Steel, CLAMP SCREW -WITH INLINE FILTER
