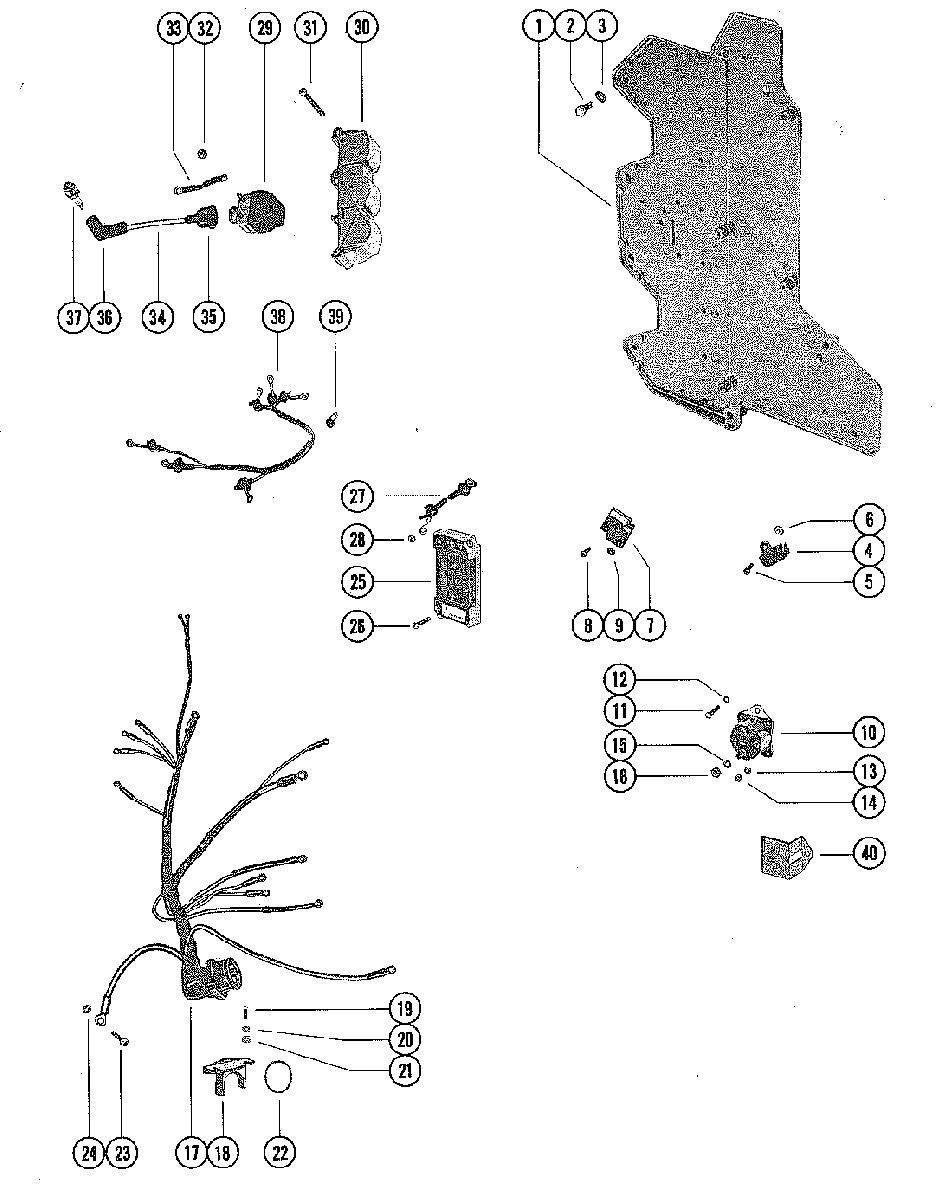

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercury - 90 (6 CYL.) 5299506 THRU 5594656

№

Артикул

Название
1

89748T PLATE, ELECTRICAL MOUNTING

PLATE, ELECTRICAL MOUNTING

0 ₽
2

10-86885 SCREW, PLATE TO CYLINDER BLOCK (1 1/2")

SCREW, PLATE TO CYLINDER BLOCK (1 1/2")

260 ₽
2

10-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")

SCREW, PLATE TO CYLINDER BLOCK (3/4")

90 ₽
2

10-28667 SCREW, PLATE TO CYLINDER BLOCK (1")

SCREW, PLATE TO CYLINDER BLOCK (1")

180 ₽
3

12-29245 WASHER, PLATE SCREW

WASHER, PLATE SCREW

120 ₽
4

87-33386A3 SWITCH ASSEMBLY, MERCURY

SWITCH ASSEMBLY, MERCURY

0 ₽
5

10-25764 SCREW, MERCURY SWITCH TO PLATE (5/8")

SCREW, MERCURY SWITCH TO PLATE (5/8")

270 ₽
6

11-45076 NUT, WIRE TO MERCURY SWITCH

NUT, WIRE TO MERCURY SWITCH

120 ₽
7

8M0058226 RECTIFIER ASSEMBLY

RECTIFIER ASSEMBLY

8 500 ₽
8

10-25764 SCREW, RECTIFIER TO IGNITION PLATE (5/8")

SCREW, RECTIFIER TO IGNITION PLATE (5/8")

270 ₽
9

11-45076 NUT, RECTIFIER TERMINALS

NUT, RECTIFIER TERMINALS

120 ₽
10

89-853654A1 SOLENOID, STARTER

SOLENOID, STARTER

4 900 ₽
11

10-38601 SCREW, STARTER SOLENOID TO PLATE (1/2")

SCREW, STARTER SOLENOID TO PLATE (1/2")

140 ₽
12

13-26992 LOCKWASHER, STARTER SOLENOID SCREW

LOCKWASHER, STARTER SOLENOID SCREW

70 ₽
13

13-26996 LOCKWASHER, SOLENOID TERMINALS (#10)

LOCKWASHER, SOLENOID TERMINALS (#10)

60 ₽
14

11-68219 NUT, SOLENOID TERMINALS (10-32)

NUT, SOLENOID TERMINALS (10-32)

50 ₽
15

13-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")

LOCKWASHER, SOLENOID TERMINALS (5/16")

140 ₽
16

11-68292 NUT, SOLENOID TERMINALS (5/16 - 18)

NUT, SOLENOID TERMINALS (5/16 - 18)

200 ₽
17

84-85532A1 WIRING HARNESS, INTERNAL

WIRING HARNESS, INTERNAL

22 360 ₽
18

54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL

CLAMP, WIRING HARNESS TO BOTTOM COWL

0 ₽
19

10-690201 SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")

SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")

180 ₽
20

13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW

LOCKWASHER, WIRING HARNESS CLAMP SCREW

60 ₽
21

12-30164 WASHER, WIRING HARNESS CLAMP SCREW

WASHER, WIRING HARNESS CLAMP SCREW

130 ₽
22

24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS

SPRING, GARTER - INTERNAL WIRING HARNESS

0 ₽
23

10-98256 SCREW, GROUND WIRE TO BOTTOM COWL

SCREW, GROUND WIRE TO BOTTOM COWL

90 ₽
24

13-26992 LOCKWASHER, GROUND WIRE SCREW

LOCKWASHER, GROUND WIRE SCREW

70 ₽
25

332-7778A12 SWITCH BOX ASSEMBLY

SWITCH BOX ASSEMBLY

23 800 ₽
26

10-26251 SCREW, SWITCH BOX TO IGNITION COIL (7/8")

SCREW, SWITCH BOX TO IGNITION COIL (7/8")

0 ₽
27

84-62310A3 CABLE ASS'Y
SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)

CABLE ASS'Y
SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)

0 ₽
28

11-45076 NUT, SWITCH BOX TERMINAL

NUT, SWITCH BOX TERMINAL

120 ₽
29

339-832757A4 COIL ASSEMBLY, IGNITION

COIL ASSEMBLY, IGNITION

7 450 ₽
30

43542 COVER, IGNITION COIL

COVER, IGNITION COIL

0 ₽
31

10-88856 SCREW, IGNITION COIL COVER (2")

SCREW, IGNITION COIL COVER (2")

0 ₽
32

11-45076 NUT, IGNITION COIL TERMINAL

NUT, IGNITION COIL TERMINAL

120 ₽
33

84-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)

CABLE ASSEMBLY, IGNITION COIL (BLACK)

0 ₽
34

84-813715A1 CABLE, HIGH TENSION

CABLE, HIGH TENSION

2 640 ₽
35

332-2854T01 BOOT, HIGH TENSION CABLE

BOOT, HIGH TENSION CABLE

230 ₽
36

85-63709A1 PROTECTOR, HIGH TENSION CABLE

PROTECTOR, HIGH TENSION CABLE

550 ₽
37

33-97180Q SPARK PLUG (CHAMPION #L76-V)

SPARK PLUG (CHAMPION #L76-V)

650 ₽
38

84-85537A2 HARNESS ASSEMBLY
COIL TO SWITCH BOX (#2,4 AND 6)

HARNESS ASSEMBLY
COIL TO SWITCH BOX (#2,4 AND 6)

6 720 ₽
38

84-85537A1 HARNESS ASSEMBLY
COIL TO SWITCH BOX (#1,3 AND 5)

HARNESS ASSEMBLY
COIL TO SWITCH BOX (#1,3 AND 5)

6 780 ₽
39

54-63153 CLIP, HARNESS TO COIL COVER

CLIP, HARNESS TO COIL COVER

70 ₽
40

85-78866 INSULATOR, STARTER SOLENOID

INSULATOR, STARTER SOLENOID

750 ₽
