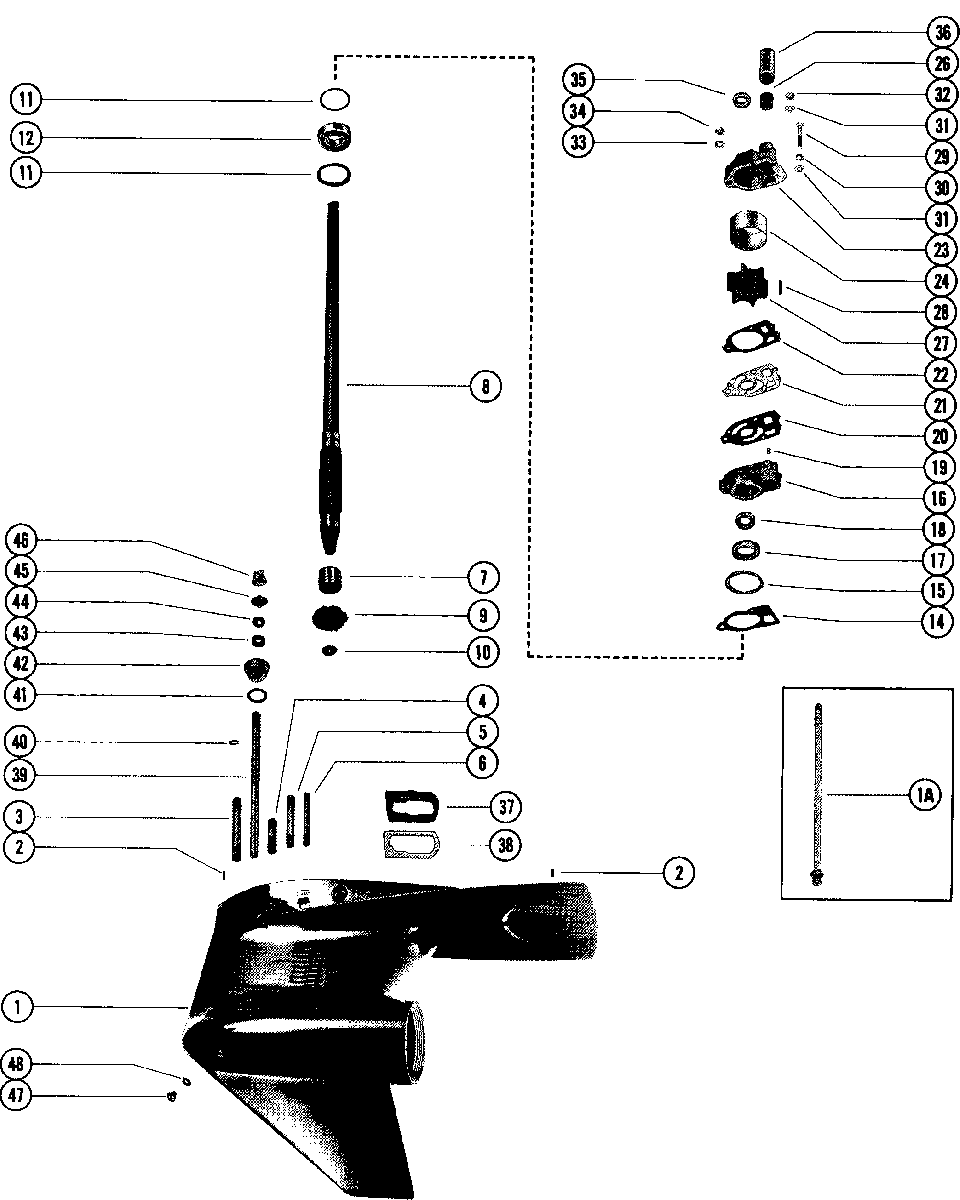

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 90 (6 CYL.) 5299506 THRU 5594656
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASS'Y, COMP.(SEE NOT BELOW)GEAR HOUSING ASS'Y, COMP.(SEE NOT BELOW)
-
11655-7333T23 GEAR HOUSING ASS'YGEAR HOUSING ASS'Y
-
1A22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETERCONNECTOR ASSEMBLY, SPEEDOMETER
-
217-8M0084726 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
316-57921 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (4") -
416-8M0133358 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16") -
516-8M0034463 STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8") -
616-306671 STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8") -
731-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
845-42646 DRIVE SHAFTDRIVE SHAFT
-
943-68548T3 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
Производитель Mercury-Mercruiser -
1011-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1123-70412 SPACER, BALL BEARING TO BASESPACER, BALL BEARING TO BASE
-
1115-57007A1 SHIM, BALL BEARING TO BASESHIM, BALL BEARING TO BASE
-
1231-69220T ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
1427-856704 GASKET, WATER PUMP BASEGASKET, WATER PUMP BASE
-
1525-33145 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1646-96146A5 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1726-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1826-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1917-8M0084627 DOWEL PIN
WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN
WATER PUMP BASE TO WATER PUMP BODY -
2027-8M0090319 GASKET
LOWER - WATER PUMP BASE TO FACE PLATEGASKET
LOWER - WATER PUMP BASE TO FACE PLATE -
21324351 PLATE
FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE
FACE - WATER PUMP BASE TO WATER PUMP BODY -
2227-858524 GASKET
UPPER - FACE PLATE TO WATER PUMP BODYGASKET
UPPER - FACE PLATE TO WATER PUMP BODY -
2346-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2448752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2626-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2828-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2910-30720 SCREW
WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW
WATER PUMP BODY TO GEAR HOUSING (2 1/4") -
3013-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3112-29245 WASHER
WATER PUMP BODY FASTENING SCREW AND STUDWASHER
WATER PUMP BODY FASTENING SCREW AND STUD -
3211-35888 NUT, WATER PUMP FASTENING SCREWNUT, WATER PUMP FASTENING SCREW
-
3312-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3525-30271 RING, RUBBER
CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER
CENTRIFUGAL SLINGER (DRIVE SHAFT) -
3623-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3737641001 SEAL, EXHAUST ELBOWSEAL, EXHAUST ELBOW
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4053-29641 "E" RING, RETAINING - SHIFT SHAFT"E" RING, RETAINING - SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-8164641 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4412-77674 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER - REVERSE LOCKING
NOT USED WITH FULL POWER TRIMSPACER, LOWER - REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
4643308T1 CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIMCAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4722-8M0058389 PLUG, DRAIN (MAGNETIC)PLUG, DRAIN (MAGNETIC)
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
-27-85653A87 GASKET SETGASKET SET
