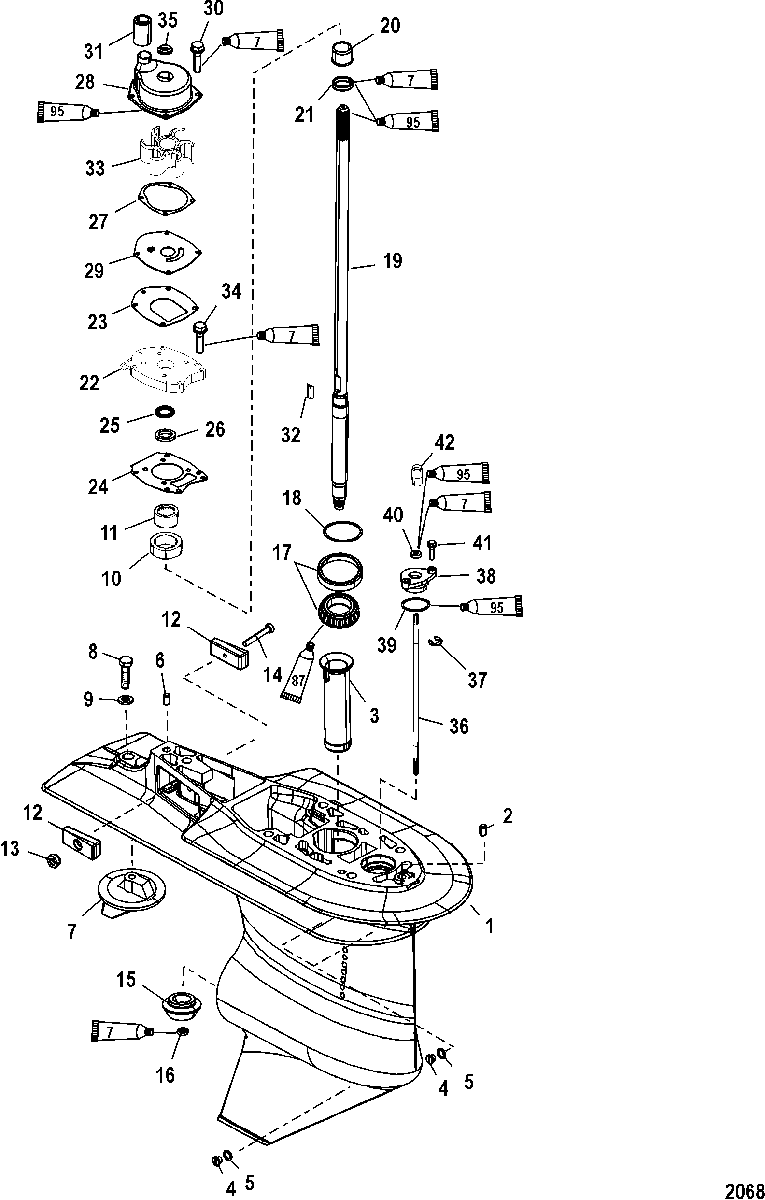

Gear Housing(Driveshaft)(2.33:1 Gear Ratio) для Mercury - 90 (4-STROKE) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 0
    1600-888845T03 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    (Long)
    GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    (Long)
  • 0
    1600-888845T04 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    (X-Long)
    GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    (X-Long)
  • 1
    1600-888845T GEAR HOUSING ASSEMBLY, Basic (Basic)
    GEAR HOUSING ASSEMBLY, Basic (Basic)
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) (Front)
    PIN, Dowel - With Hole (.375 x .625) (Front)
  • 3
    43046 TUBE, Oiler
    TUBE, Oiler
  • 4
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 5
    12-191833 SEAL
    SEAL
  • 6
    17-43044 PIN, Dowel - Without Hole (.375 x .625) (Rear)
    PIN, Dowel - Without Hole (.375 x .625) (Rear)
  • 7
    31640T07 TRIM TAB
    TRIM TAB
  • 8
    10-825427 SCREW, (.437-14 x 1.250) Stainless Steel
    SCREW, (.437-14 x 1.250) Stainless Steel
  • 9
    12-451761 WASHER, (.453 x .812 x .105) Black Oxide
    WASHER, (.453 x .812 x .105) Black Oxide
  • 10
    43040T1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, Needle Bearing
    NOT SOLD SEPARATE, Needle Bearing
  • 12
    97-826134Q ANODE
    ANODE
  • 13
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 15
    NSS NOT SOLD SEPARATE, Pinion Gear (12 TEETH)
    (Part of 43-882813A3)
    NOT SOLD SEPARATE, Pinion Gear (12 TEETH)
    (Part of 43-882813A3)
  • 16
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 17
    31-883047A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 18
    15-8M0063265 SHIM SET
    SHIM SET
  • 19
    45-858765T1 DRIVESHAFT ASSEMBLY
    (Long)
    DRIVESHAFT ASSEMBLY
    (Long)
  • 19
    45-878575T1 DRIVESHAFT ASSEMBLY
    (X-Long)
    DRIVESHAFT ASSEMBLY
    (X-Long)
  • 20
    42461A1 SLEEVE/RING KIT
    SLEEVE/RING KIT
  • 21
    NSS NOT SOLD SEPARATE, Seal Ring
    NOT SOLD SEPARATE, Seal Ring
  • 22
    46-8M0113262 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • 23
    27-430331 GASKET
    GASKET
  • 24
    27-430472 GASKET
    GASKET
  • 25
    26-43036 SEAL, Oil (Lower)
    SEAL, Oil (Lower)
  • 26
    26-43035 SEAL, Oil (Upper)
    SEAL, Oil (Upper)
  • 27
    27-8172771 GASKET
    GASKET
  • 28
    817275A2 HOUSING KIT, Upper Water Pump
    HOUSING KIT, Upper Water Pump
  • 29
    8172761 FACEPLATE
    FACEPLATE
  • 30
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 31
    430232 SEAL
    SEAL
  • 32
    28-8M0032833 KEY
    KEY
  • 33
    47-43026T2 IMPELLER
    IMPELLER
  • 34
    10-82684425 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 35
    26-816575A2 FACE SEAL
    FACE SEAL
  • 36
    884563A00 SHIFT SHAFT ASSEMBLY
    (Long)
    SHIFT SHAFT ASSEMBLY
    (Long)
  • 36
    884565A00 SHIFT SHAFT ASSEMBLY
    (X-Long)
    SHIFT SHAFT ASSEMBLY
    (X-Long)
  • 37
    53-29641 E RING
    E RING
  • 38
    23-43052A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 39
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 40
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 41
    10-82684425 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 42
    23-891637 BUSHING
    BUSHING
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    46-8M0113799 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    43-882813A3 GEAR KIT, Forward And Pinion 28 Teeth
    GEAR KIT, Forward And Pinion 28 Teeth
  • -
    31-803496T2 BEARING/SEAL KIT
    (Without Forward Bearing)
    BEARING/SEAL KIT
    (Without Forward Bearing)
