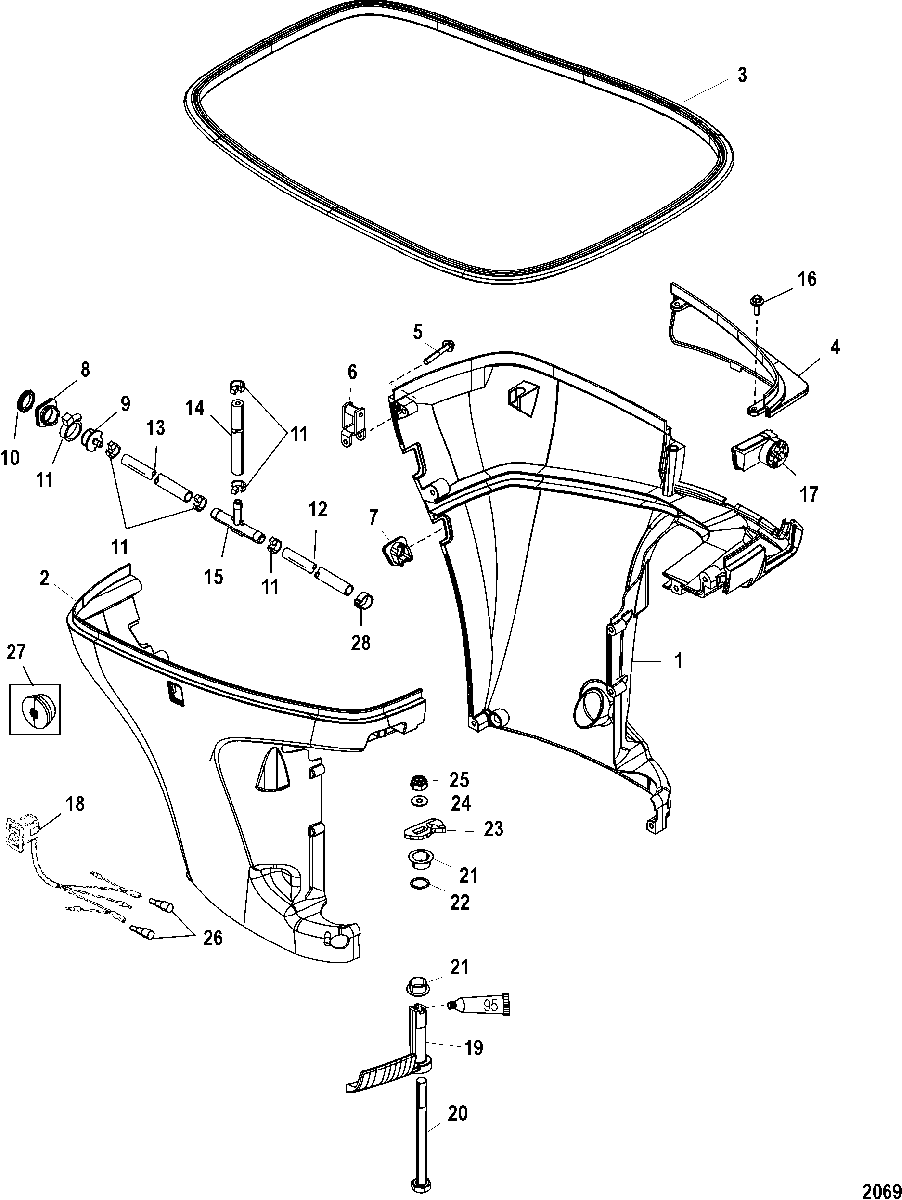

Bottom Cowl для Mercury - 90 (4-STROKE) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    100-878587A1 BOTTOM COWL ASSEMBLY
    (PORT)
    BOTTOM COWL ASSEMBLY
    (PORT)
  • 2
    100-8M0113913 BOTTOM COWL ASSEMBLY
    (STARBOARD)
    BOTTOM COWL ASSEMBLY
    (STARBOARD)
  • 2
    100-858743A3 BOTTOM COWL
    (STBD)(75 BODENSEE)
    BOTTOM COWL
    (STBD)(75 BODENSEE)
  • 3
    8M0109217 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 4
    878547T INSERT
    INSERT
  • 5
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 6
    831209 RETAINER
    RETAINER
  • 7
    858742 BOOT, Idle Exhaust
    BOOT, Idle Exhaust
  • 8
    8M0039078 GROMMET
    GROMMET
  • 9
    22-827948 FITTING
    FITTING
  • 10
    12-855576 WASHER
    WASHER
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5 IN.)
    HOSE, (57.00 Inches Bulk) (Cut to 5 IN.)
  • 13
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11 IN.)
    HOSE, (57.00 Inches Bulk) (Cut to 11 IN.)
  • 14
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 26 IN.)
    TUBING, (36.00 Inches Bulk) (Cut to 26 IN.)
  • 15
    22-817518 TEE
    TEE
  • 16
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 17
    25-889724 GROMMET
    GROMMET
  • 18
    87-8M0042301 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 19
    889740A02 FRONT HANDLE, Black
    CAST HANDLE
    FRONT HANDLE, Black
    CAST HANDLE
  • 19
    889740A02 HANDLE KIT, Cowl Latch
    PLASTIC HANDLE
    HANDLE KIT, Cowl Latch
    PLASTIC HANDLE
  • 20
    10-1993716 SCREW, (M6 x 16)
    PLASTIC HANDLE
    SCREW, (M6 x 16)
    PLASTIC HANDLE
  • 20
    10-824868 SCREW, (M6 x 75)
    CAST HANDLE
    SCREW, (M6 x 75)
    CAST HANDLE
  • 21
    23-33589 BUSHING
    BUSHING
  • 22
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 23
    8219423 PAWL, Front Handle
    PAWL, Front Handle
  • 24
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 25
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 26
    13541 PLUG, Male
    PLUG, Male
  • 27
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 28
    54-888441 CLAMP, Oetiker (12.8 mm)
    CLAMP, Oetiker (12.8 mm)
