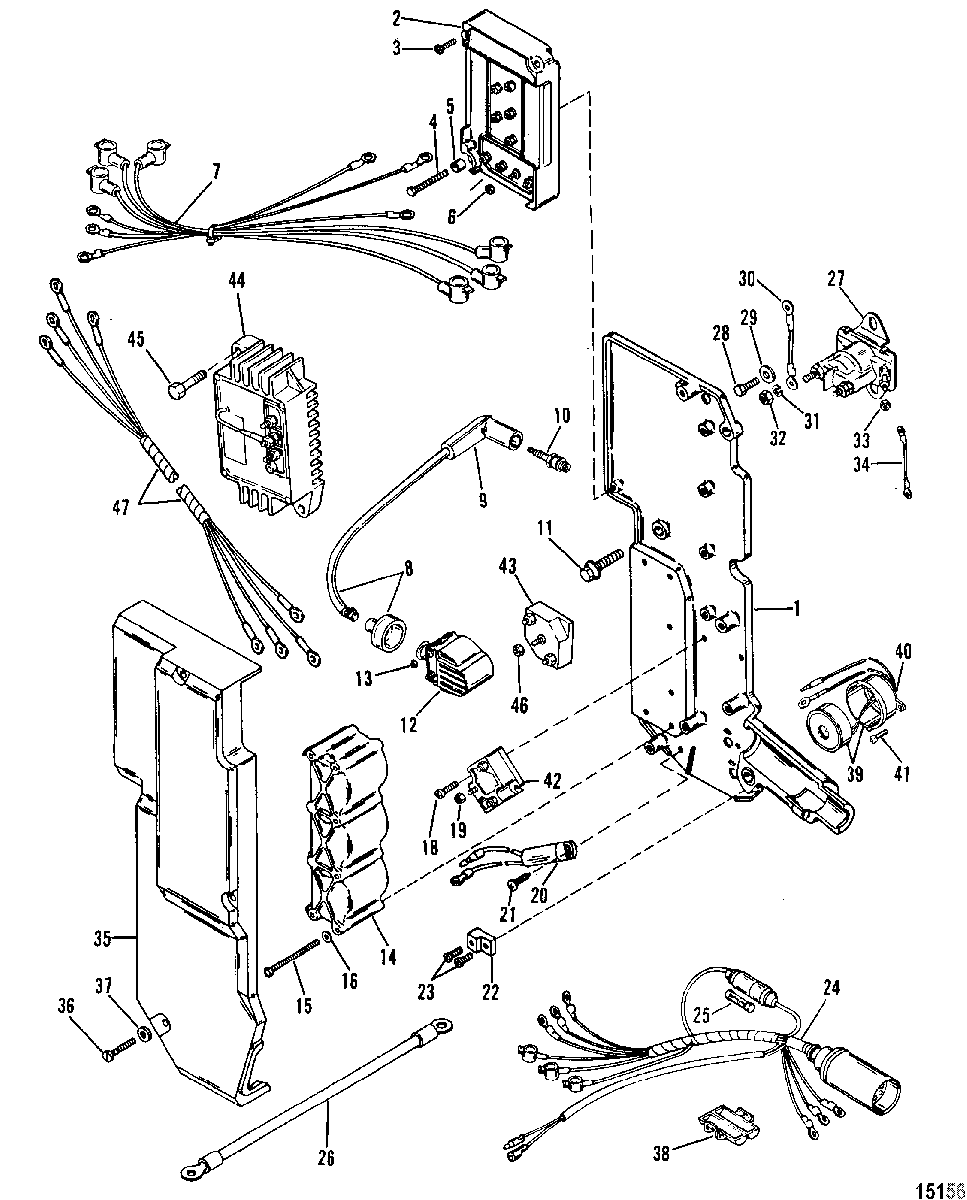

Electrical Components для Mercury - 90 (3 CYL.) 9506481 THRU 9589038

  • №
    Артикул
    Название
  • 1
    42968A23 PLATE, Ignition
    PLATE, Ignition
  • 2
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 3
    10-69079 SCREW, (#10-16 x .440), Switch Box
    SCREW, (#10-16 x .440), Switch Box
  • 4
    10-40007110 SCREW, (M5 x 30), Switch Box
    SCREW, (M5 x 30), Switch Box
  • 5
    23-94304 SPACER, Switch Box Screw
    SPACER, Switch Box Screw
  • 6
    11-45076 NUT, (#10-32) Brass, Switch Box Terminal
    NUT, (#10-32) Brass, Switch Box Terminal
  • 7
    84-41592A4 HARNESS ASSEMBLY, Primary
    HARNESS ASSEMBLY, Primary
  • 8
    84-813715A7 CABLE SET, Ignition, High Tension
    CABLE SET, Ignition, High Tension
  • 9
    85-63709A1 BOOT/TERMINAL KIT, Spark Plug
    BOOT/TERMINAL KIT, Spark Plug
  • 10
    33-97182Q SPARK PLUG
    SPARK PLUG
  • 10
    33-14103Q SPARK PLUG, Begium, Canada
    SPARK PLUG, Begium, Canada
  • 11
    10-82155025 SCREW, Ignition Plate
    SCREW, Ignition Plate
  • 12
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 13
    11-45076 NUT, (#10-32) Brass, Ignition Coil Terminal
    NUT, (#10-32) Brass, Ignition Coil Terminal
  • 14
    43542 COVER, Ignition Coil
    COVER, Ignition Coil
  • 15
    10-40007115 SCREW, (M5 x 55), Ignition Coil Cover
    SCREW, (M5 x 55), Ignition Coil Cover
  • 16
    12-89302 WASHER, (.203 x .406 x .040), Coil Cover Screw
    WASHER, (.203 x .406 x .040), Coil Cover Screw
  • 18
    10-40056107 SCREW, (M5 x 16), Rectifier
    SCREW, (M5 x 16), Rectifier
  • 19
    11-45076 NUT, (#10-32) Brass, Rectifier Terminal
    NUT, (#10-32) Brass, Rectifier Terminal
  • 20
    16731T01 MERCURY SWITCH ASSEMBLY
    MERCURY SWITCH ASSEMBLY
  • 21
    10-40056107 SCREW, (M5 x 16), Mercury Switch
    SCREW, (M5 x 16), Mercury Switch
  • 22
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 23
    10-48408 SCREW, (#10-16 x .500), Terminal Block
    SCREW, (#10-16 x .500), Terminal Block
  • 24
    84-41591A3 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 25
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 26
    84-88439A3 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 26
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 27
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 28
    10-40007106 SCREW, (M5 x 13), Starter Solenoid
    SCREW, (M5 x 13), Starter Solenoid
  • 29
    12-4002314 WASHER, Starter Solenoid Screw
    WASHER, Starter Solenoid Screw
  • 30
    84-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black, Solenoid Screw
    (Quantity Of Two On Oyster)
    CABLE ASSEMBLY, (3.50 Inches) Black, Solenoid Screw
    (Quantity Of Two On Oyster)
  • 31
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Starter Solenoid Terminal)
    LOCKWASHER, (.250) Stainless Steel
    (Starter Solenoid Terminal)
  • 32
    11-64015 NUT, (.250-20), Starter Solenoid Terminal
    NUT, (.250-20), Starter Solenoid Terminal
  • 33
    11-26419 NUT, (#8-32) Brass, Starter Solenoid Terminal
    NUT, (#8-32) Brass, Starter Solenoid Terminal
  • 34
    84-88808A18 WIRE ASSEMBLY, (3.00 Inches), Rectifier To Solenoid, Red
    WIRE ASSEMBLY, (3.00 Inches), Rectifier To Solenoid, Red
  • 35
    124174 COVER, Ignition
    COVER, Ignition
  • 36
    10-40007114 SCREW, (M5 x 50), Ignition Cover
    SCREW, (M5 x 50), Ignition Cover
  • 37
    12-89302 WASHER, (.203 x .406 x .040), Ignition Cover Screw
    WASHER, (.203 x .406 x .040), Ignition Cover Screw
  • 38
    134731 HOLDER, Fuse
    HOLDER, Fuse
  • 39
    68878A6 HORN ASSEMBLY, Buzzer Alarm, Electric Handle
    HORN ASSEMBLY, Buzzer Alarm, Electric Handle
  • 40
    68879 COVER, Electric Handle
    COVER, Electric Handle
  • 41
    10-40056107 SCREW, (M5 x 16), Electric Handle
    SCREW, (M5 x 16), Electric Handle
  • 42
    8M0058226 RECTIFIER, See Note Below
    RECTIFIER, See Note Below
  • 43
    17602A1 TERMINAL BLOCK, See Note Below
    TERMINAL BLOCK, See Note Below
  • 44
    815279A2 REGULATOR ASSEMBLY, Voltage, Use With Reference Number 43
    REGULATOR ASSEMBLY, Voltage, Use With Reference Number 43
  • 45
    10-4010630 SCREW, Use With Reference Number 43
    SCREW, Use With Reference Number 43
  • 46
    11-45076 NUT, (#10-32) Brass, Use With Reference Number 43
    NUT, (#10-32) Brass, Use With Reference Number 43
  • 47
    84-12201A2 HARNESS ASSEMBLY, Use With Reference Number 43
    HARNESS ASSEMBLY, Use With Reference Number 43
