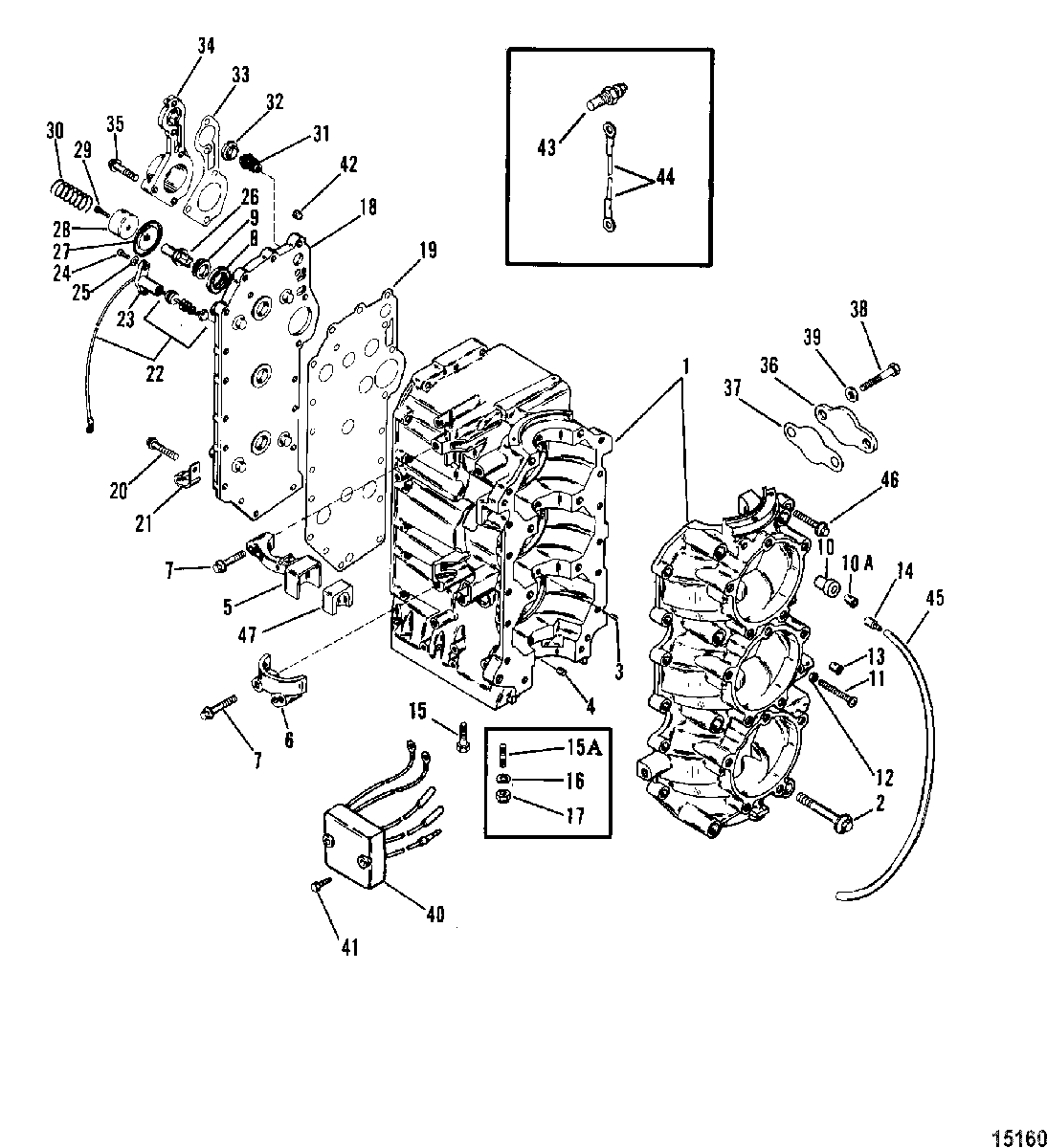

Cylinder Block and Crankcase для Mercury - 90 (3 CYL.) 9506481 THRU 9589038

  • №
    Артикул
    Название
  • 1
    876-8947T50 CYLINDER BLOCK, 80, Handle
    CYLINDER BLOCK, 80, Handle
  • 1
    876-8947T49 CYLINDER BLOCK, 70/75
    CYLINDER BLOCK, 70/75
  • 1
    876-8947T51 CYLINDER BLOCK, 90
    (Use With WME-10 Carburetor)
    CYLINDER BLOCK, 90
    (Use With WME-10 Carburetor)
  • 1
    876-8947T51 CYLINDER BLOCK, 90
    (Use With WME-15 Carburetor)
    CYLINDER BLOCK, 90
    (Use With WME-15 Carburetor)
  • 2
    10-4009680 SCREW, (M10 x 80), Crankcase To Cylinder Block
    SCREW, (M10 x 80), Crankcase To Cylinder Block
  • 3
    17-8M0036405 PIN, Bearing Race
    PIN, Bearing Race
  • 4
    17-43044 PIN, Dowel, Locating
    PIN, Dowel, Locating
  • 5
    428842 COVER, Starter, Top
    COVER, Starter, Top
  • 6
    76867 COVER, Starter, Bottom
    COVER, Starter, Bottom
  • 7
    10-81742750 SCREW, Starter Cover
    SCREW, Starter Cover
  • 8
    65848 CARRIER, Poppet Valve
    CARRIER, Poppet Valve
  • 9
    25-64872 GROMMET, Poppet Valve
    GROMMET, Poppet Valve
  • 10
    22-814204A1 BLEED SYSTEM KIT
    BLEED SYSTEM KIT
  • 10A
    21-42657A3 CHECK VALVE, Crankcase
    CHECK VALVE, Crankcase
  • 11
    10-814776 SCREW, Adjusting
    SCREW, Adjusting
  • 12
    11-400212 NUT, Jam, Adjusting Screw
    NUT, Jam, Adjusting Screw
  • 13
    42942 CAP, Adjusting Screw
    CAP, Adjusting Screw
  • 14
    21-426233 CHECK VALVE, Press-In
    CHECK VALVE, Press-In
  • 15
    16-821676A1 SCREW, Block, Screw Attachment
    SCREW, Block, Screw Attachment
  • 15A
    16-821676A1 STUD, Block, Stud Attachment
    STUD, Block, Stud Attachment
  • 16
    12-856774 WASHER, (.406 x .750 x .104), Block Stud, Stud Attachment
    WASHER, (.406 x .750 x .104), Block Stud, Stud Attachment
  • 17
    11-40140 NUT, (M10), Block Stud, Stud Attachment
    NUT, (M10), Block Stud, Stud Attachment
  • 18
    1034-9003A2 COVER, Cylinder Block
    COVER, Cylinder Block
  • 19
    27-430057 GASKET, Cylinder Block Cover
    GASKET, Cylinder Block Cover
  • 20
    10-82127335 SCREW, (M8 x 1.25 x 35) , Cylinder Block Cover
    SCREW, (M8 x 1.25 x 35) , Cylinder Block Cover
  • 21
    54-47483 J CLIP, Cylinder Block Cover Screw
    J CLIP, Cylinder Block Cover Screw
  • 22
    78799 SENDER, Temperature (19.50 Inch)
    SENDER, Temperature (19.50 Inch)
  • 23
    44290T RETAINER, Temperature Sender
    RETAINER, Temperature Sender
  • 24
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Retainer
    SCREW, (#10-16 x .625) Stainless Steel, Retainer
  • 25
    12-56681 WASHER, (.203 x .500 x .032), Retainer Screw
    WASHER, (.203 x .500 x .032), Retainer Screw
  • 26
    86596 POPPET VALVE
    POPPET VALVE
  • 27
    648771 DIAPHRAGM
    DIAPHRAGM
  • 28
    12-94182 WASHER
    WASHER
  • 29
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 30
    24-42996 SPRING, (Stainless Steel), Compression, Poppet Valve
    SPRING, (Stainless Steel), Compression, Poppet Valve
  • 31
    75692 THERMOSTAT (143)
    THERMOSTAT (143)
  • 32
    27-62386001 GASKET, Thermostat
    GASKET, Thermostat
  • 33
    27-430068 GASKET, Thermostat Cover
    GASKET, Thermostat Cover
  • 34
    8M0047619 COVER, Thermostat
    COVER, Thermostat
  • 35
    10-82127335 SCREW, (M8 x 1.25 x 35) , Thermostat Cover
    SCREW, (M8 x 1.25 x 35) , Thermostat Cover
  • 36
    12621 COVER, Oil Pad, Non Oil Injection
    COVER, Oil Pad, Non Oil Injection
  • 37
    27-126201 GASKET, Cover, Non Oil Injection
    GASKET, Cover, Non Oil Injection
  • 38
    10-40007106 SCREW, (M5 x 13), Cover, Non Oil Injection
    SCREW, (M5 x 13), Cover, Non Oil Injection
  • 39
    12-4002314 WASHER, Cover Screw, Non Oil Injection
    WASHER, Cover Screw, Non Oil Injection
  • 40
    14857A16 MODULE, Oil Warning
    MODULE, Oil Warning
  • 41
    10-4010630 SCREW, (M6 x 30) Stainless Steel, Oil Warning Module
    SCREW, (M6 x 30) Stainless Steel, Oil Warning Module
  • 42
    22-328022 PLUG, Pipe (.125-27), Black, Gray
    PLUG, Pipe (.125-27), Black, Gray
  • 43
    12415 SENDER, Temperature
    Oyster, Power Boat
    SENDER, Temperature
    Oyster, Power Boat
  • 44
    84-88824A6 CABLE ASSEMBLY, Temperature Sender
    Oyster, Power Boat
    CABLE ASSEMBLY, Temperature Sender
    Oyster, Power Boat
  • 45
    32-892024122 TUBING, (20.00 Feet Bulk), Bleed
    TUBING, (20.00 Feet Bulk), Bleed
  • 46
    10-82127335 SCREW, (M8 x 1.25 x 35) , Crankcase To Cylinder Block
    SCREW, (M8 x 1.25 x 35) , Crankcase To Cylinder Block
  • 47
    99162001 BOOT, Oil Tank
    BOOT, Oil Tank
  • -
    27-43004A99 GASKET SET
    GASKET SET
