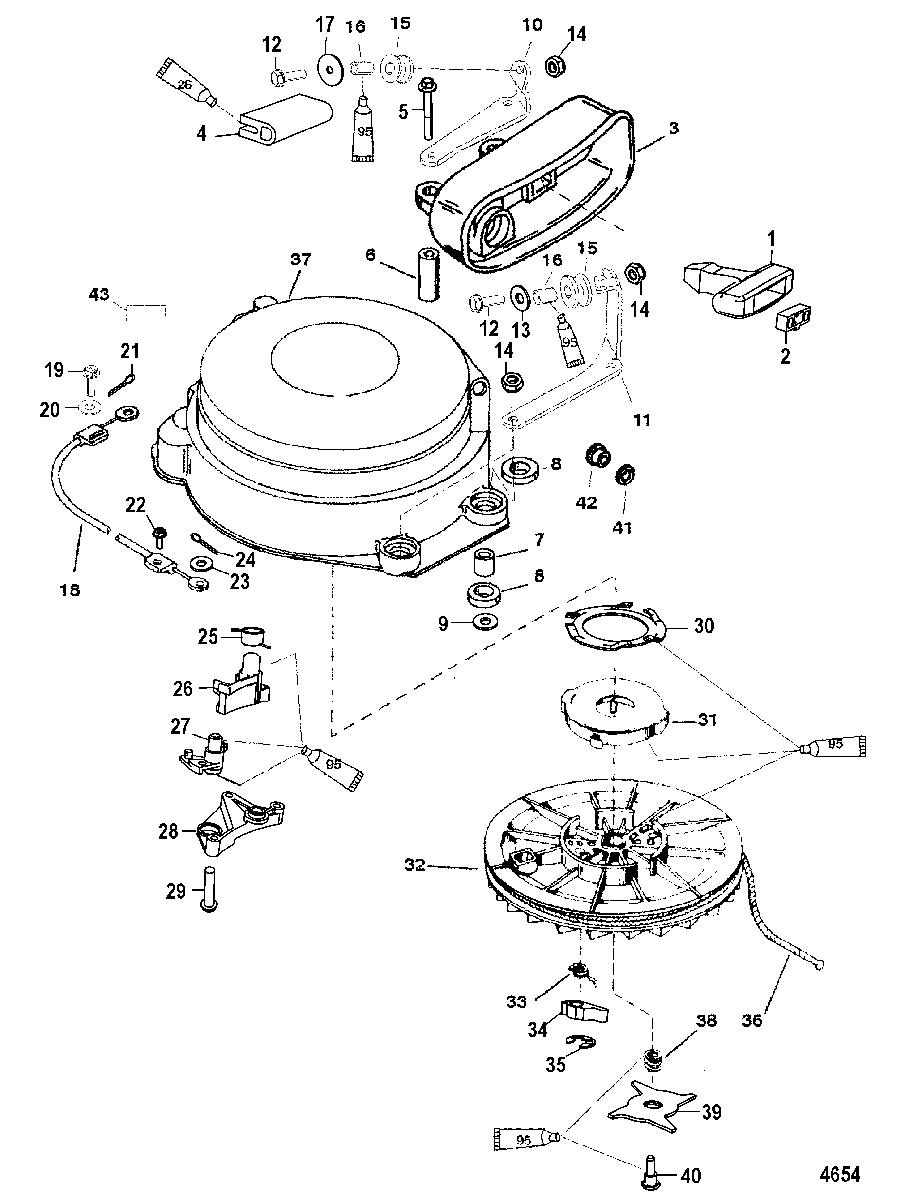

Starter Assembly(Manual) для Mercury - 90 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
185174A2 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
38220721 RESTREST
-
48M0043270 SEALSEAL
-
510-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
623-8217021 SPACERSPACER
-
723-816086 BUSHINGBUSHING
-
825-815795 GROMMETGROMMET
-
912-69057 WASHER, (.281 x .734 x .063)
(Quantity of 2 used in Front. Quantity of 4 used in Back)WASHER, (.281 x .734 x .063)
(Quantity of 2 used in Front. Quantity of 4 used in Back) -
10855596 BRACKETBRACKET
-
11855597 BRACKETBRACKET
-
1210-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
1312-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1411-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1511704A1 PULLEY KITPULLEY KIT
-
16NSS NOT SOLD SEPARATE, SpacerNOT SOLD SEPARATE, Spacer
-
1712-67983 WASHERWASHER
-
188567541 CABLE, InterlockCABLE, Interlock
-
1910-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
2012-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
2118-26811 COTTER PINCOTTER PIN
-
2210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2312-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2418-26811 COTTER PINCOTTER PIN
-
-816728T14 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
2524-826791 SPRINGSPRING
-
268166903 LEVERLEVER
-
27816712T01 CAMCAM
-
28816711 RETAINERRETAINER
-
2910-8182491 SCREW, (#10-16 x 1.00)SCREW, (#10-16 x 1.00)
-
3013-826229 LOCKWASHERLOCKWASHER
-
3124-86857T01 SPRINGSPRING
-
3250-825269T01 SHEAVE, StarterSHEAVE, Starter
-
3324-86851T02 SPRINGSPRING
-
34868501 CAMCAM
-
3553-86849T01 RING, RetainingRING, Retaining
-
3650-12066Q10 ROPEROPE
-
37816728T05 HOUSINGHOUSING
-
3824-868523 SPRINGSPRING
-
3986853T01 CAMCAM
-
4010-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
4142690 BUSHINGBUSHING
-
4253-818853 RING, RetainingRING, Retaining
-
43NSS NOT SOLD SEPARATE, Decal-Manual StartNOT SOLD SEPARATE, Decal-Manual Start
