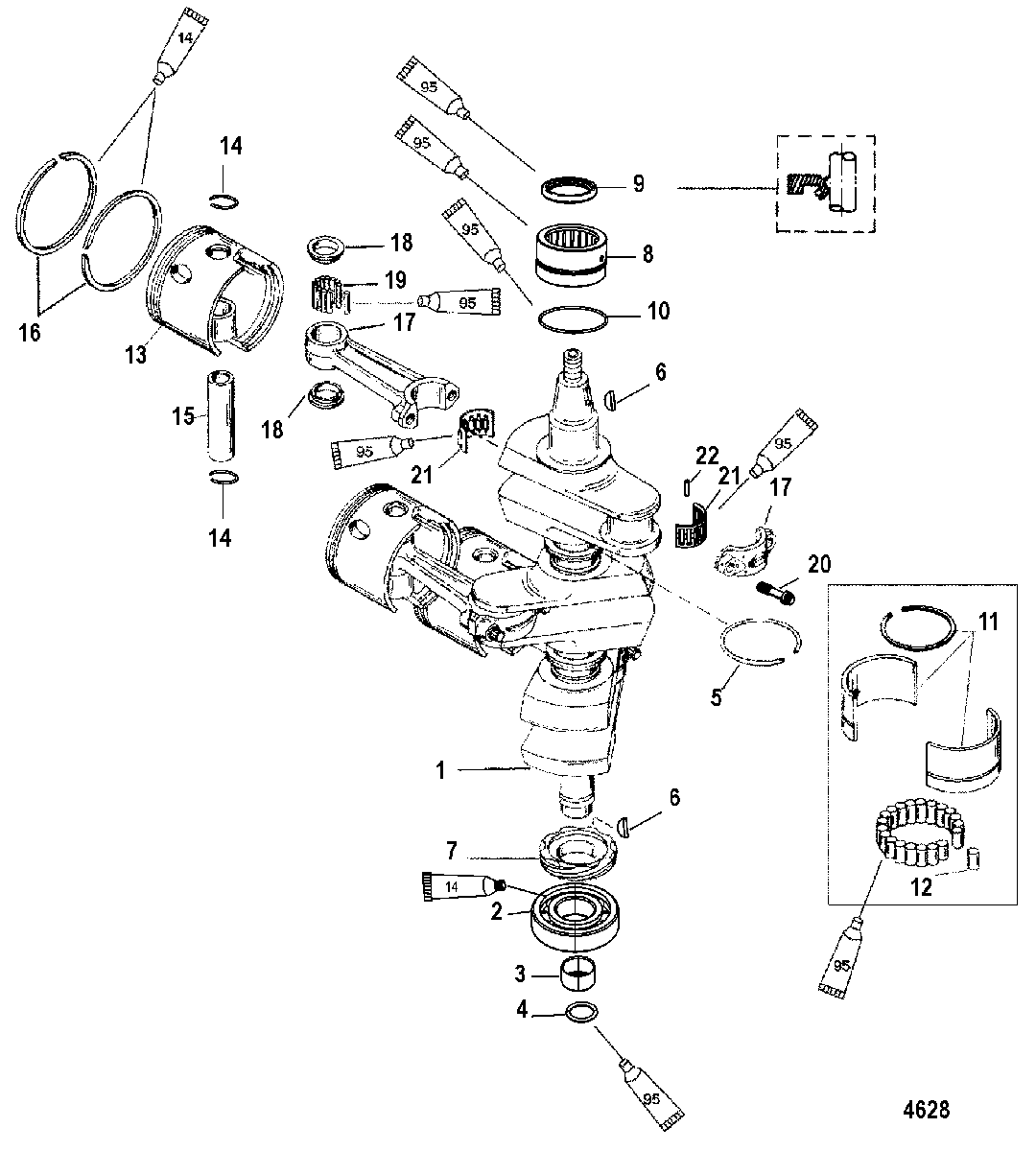

Crankshaft, Pistons and Connecting Rods для Mercury - 90 (3 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    493-827616T1 CRANKSHAFT
    CRANKSHAFT
  • 2
    30-43011T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 3
    786611 WEAR SLEEVE
    WEAR SLEEVE
  • 4
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 5
    39-818412A4 RING ASSEMBLY
    RING ASSEMBLY
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    43-43019A1 GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 8
    31-43013T3 BEARING ASSEMBLY, Roller, Upper
    BEARING ASSEMBLY, Roller, Upper
  • 9
    26-43993 SEAL, Oil
    SEAL, Oil
  • 10
    25-858225 O-RING
    (2.112 X .103)(Square)
    O-RING
    (2.112 X .103)(Square)
  • 10
    25-823683 O-RING, (1.989 x .070)
    (1.989 X .070)(Round)
    O-RING, (1.989 x .070)
    (1.989 X .070)(Round)
  • 11
    42943A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 12
    NSS NOT SOLD SEPARATE, Roller Bearing
    NOT SOLD SEPARATE, Roller Bearing
  • 13
    2704-826191T4 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 13
    2704-821896A3 PISTON ASSEMBLY
    (.015 Oversize)
    PISTON ASSEMBLY
    (.015 Oversize)
  • 13
    2704-821896A4 PISTON ASSEMBLY
    (.030 Oversize)
    PISTON ASSEMBLY
    (.030 Oversize)
  • 14
    53-857196 LOCK RING
    LOCK RING
  • 15
    NSS NOT SOLD SEPARATE, Piston Ring
    NOT SOLD SEPARATE, Piston Ring
  • 16
    39-822321A12 RING KIT, Piston - Standard
    (Standard)
    RING KIT, Piston - Standard
    (Standard)
  • 16
    39-822321A1 RING KIT, Piston - .015 Oversize
    (.015 Oversize)
    RING KIT, Piston - .015 Oversize
    (.015 Oversize)
  • 16
    39-822321A2 RING SET, Piston
    (.030 O.S.)
    RING SET, Piston
    (.030 O.S.)
  • 17
    646-818846T6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 18
    12-8M0012298 WASHER
    WASHER
  • 19
    29-818391001 BEARING, Needle
    BEARING, Needle
  • 20
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 21
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 22
    NSS NOT SOLD SEPARATE, Roller Bearing
    NOT SOLD SEPARATE, Roller Bearing
  • -
    27-43004A99 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    898208A02 POWERHEAD ASSEMBLY
    (Non Oil Injection)
    POWERHEAD ASSEMBLY
    (Non Oil Injection)
  • -
    898208A02 POWERHEAD ASSEMBLY
    (Non Oil Injection) SN# 1B227000 & Up
    POWERHEAD ASSEMBLY
    (Non Oil Injection) SN# 1B227000 & Up
  • -
    898208A02 POWERHEAD ASSEMBLY
    (Non Oil Injection) SN# 0P401000 & Up
    POWERHEAD ASSEMBLY
    (Non Oil Injection) SN# 0P401000 & Up
  • -
    809837T97 POWERHEAD ASSEMBLY
    (Oil Injection)
    POWERHEAD ASSEMBLY
    (Oil Injection)
