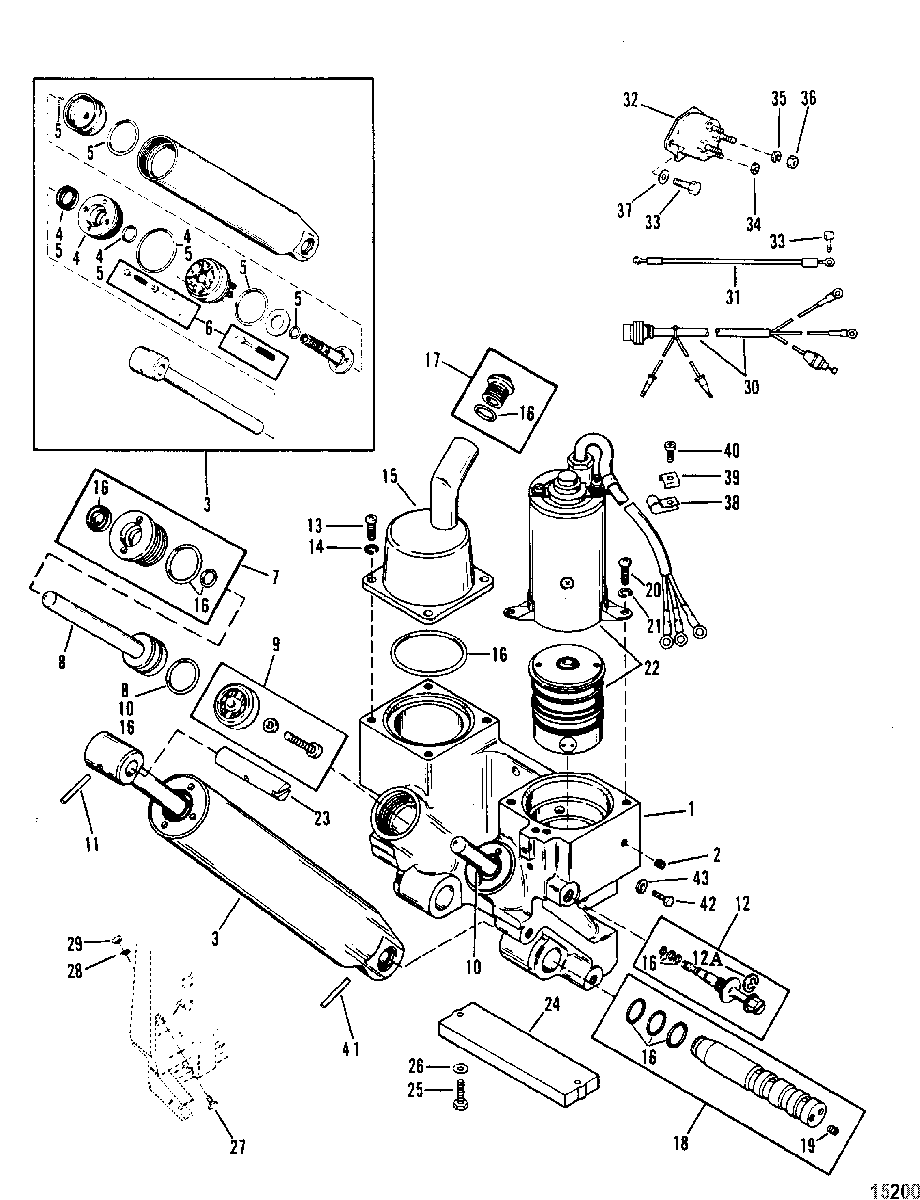

Power Trim Components для Mercury - 90 (3 CYL.) 0B240451 THRU 0C221999

‹-+›
  • №
    Артикул
    Название
  • 1
    99659A21 MANIFOLD ASSEMBLY, Black
    MANIFOLD ASSEMBLY, Black
  • 1
    99659A22 MANIFOLD ASSEMBLY, Gray
    MANIFOLD ASSEMBLY, Gray
  • 1
    99659A22 MANIFOLD ASSEMBLY, Oyster
    MANIFOLD ASSEMBLY, Oyster
  • 2
    22-56800 PIPE PLUG, Manifold
    PIPE PLUG, Manifold
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY, Black
    TRIM CYLINDER ASSEMBLY, Black
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY, Gray
    TRIM CYLINDER ASSEMBLY, Gray
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY, Oyster
    TRIM CYLINDER ASSEMBLY, Oyster
  • 4
    41492A1 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 5
    25-41478A1 REPAIR KIT
    REPAIR KIT
  • 6
    41482A2 CHECK VALVE KIT
    CHECK VALVE KIT
  • 7
    1100-8M0021648 GUIDE ASSEMBLY, Trim Rod
    GUIDE ASSEMBLY, Trim Rod
  • 8
    878413A1 PISTON/ROD ASSEMBLY, Power Trim, Port
    PISTON/ROD ASSEMBLY, Power Trim, Port
  • 9
    35-12184A1 TRIM FILTER ASSEMBLY
    TRIM FILTER ASSEMBLY
  • 10
    878414T01 PISTON/ROD ASSEMBLY, Power Trim, Starboard
    PISTON/ROD ASSEMBLY, Power Trim, Starboard
  • 11
    17-821539 PIN, Groove, Trim Cylinder, Upper
    PIN, Groove, Trim Cylinder, Upper
  • 12
    893929A01 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 12A
    53-815949001 E RING
    E RING
  • 13
    10-4000327 SCREW, (M6 x 14), Cover
    SCREW, (M6 x 14), Cover
  • 14
    12-4002315 WASHER, Cover Screw
    WASHER, Cover Screw
  • 15
    99642 COVER, Manifold
    COVER, Manifold
  • 16
    25-48462A4 O-RING KIT
    O-RING KIT
  • 17
    19-99609A1 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 18
    99641A02 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 19
    22-56800 PIPE PLUG, Shaft
    PIPE PLUG, Shaft
  • 20
    10-4008820 SCREW, (M6 x 20), Pump And Motor
    SCREW, (M6 x 20), Pump And Motor
  • 21
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 22
    826729A10 PUMP AND MOTOR
    PUMP AND MOTOR
  • 23
    99625002 SHAFT, Upper
    SHAFT, Upper
  • 24
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 25
    10-4000332 SCREW, (M6 x 35), Anode
    SCREW, (M6 x 35), Anode
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
    WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
  • 27
    8M0045383 STRIKER PLATE, Trim Shaft
    STRIKER PLATE, Trim Shaft
  • 28
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 29
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 30
    84-17201A2 CABLE ASSEMBLY, (17.00 Inches), Power Trim
    CABLE ASSEMBLY, (17.00 Inches), Power Trim
  • 31
    84-87379A14 WIRE ASSEMBLY, (2.750 Inches), Red
    WIRE ASSEMBLY, (2.750 Inches), Red
  • 31
    84-88807A13 CABLE ASSEMBLY (3.50 Inch) Black
    CABLE ASSEMBLY (3.50 Inch) Black
  • 32
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 33
    10-40007106 SCREW, (M5 x 13), Starter Solenoid
    SCREW, (M5 x 13), Starter Solenoid
  • 34
    11-26419 NUT, (#8-32) Brass, Solenoid Terminal
    NUT, (#8-32) Brass, Solenoid Terminal
  • 35
    13-26992 LOCKWASHER, (.250) Stainless Steel, Solenoid Terminal
    LOCKWASHER, (.250) Stainless Steel, Solenoid Terminal
  • 36
    11-64015 NUT, (.250-20), Solenoid Terminal
    NUT, (.250-20), Solenoid Terminal
  • 37
    12-4002314 WASHER, Starter Solenoid Screw
    WASHER, Starter Solenoid Screw
  • 38
    54-22875 CLIP, Pump Wire
    CLIP, Pump Wire
  • 39
    8M0084613 C WASHER, Clip Screw
    C WASHER, Clip Screw
  • 40
    10-69079 SCREW, (#10-16 x .440), Clip To Transom Bracket
    SCREW, (#10-16 x .440), Clip To Transom Bracket
  • 41
    17-878267 PIN, Groove, Trim Cylinder, Lower
    PIN, Groove, Trim Cylinder, Lower
  • 42
    10-4000377 SCREW, (M10 x 30), Manifold
    SCREW, (M10 x 30), Manifold
  • 43
    13-400258 LOCKWASHER, (M10) Stainless Steel, Manifold Screw
    LOCKWASHER, (M10) Stainless Steel, Manifold Screw
