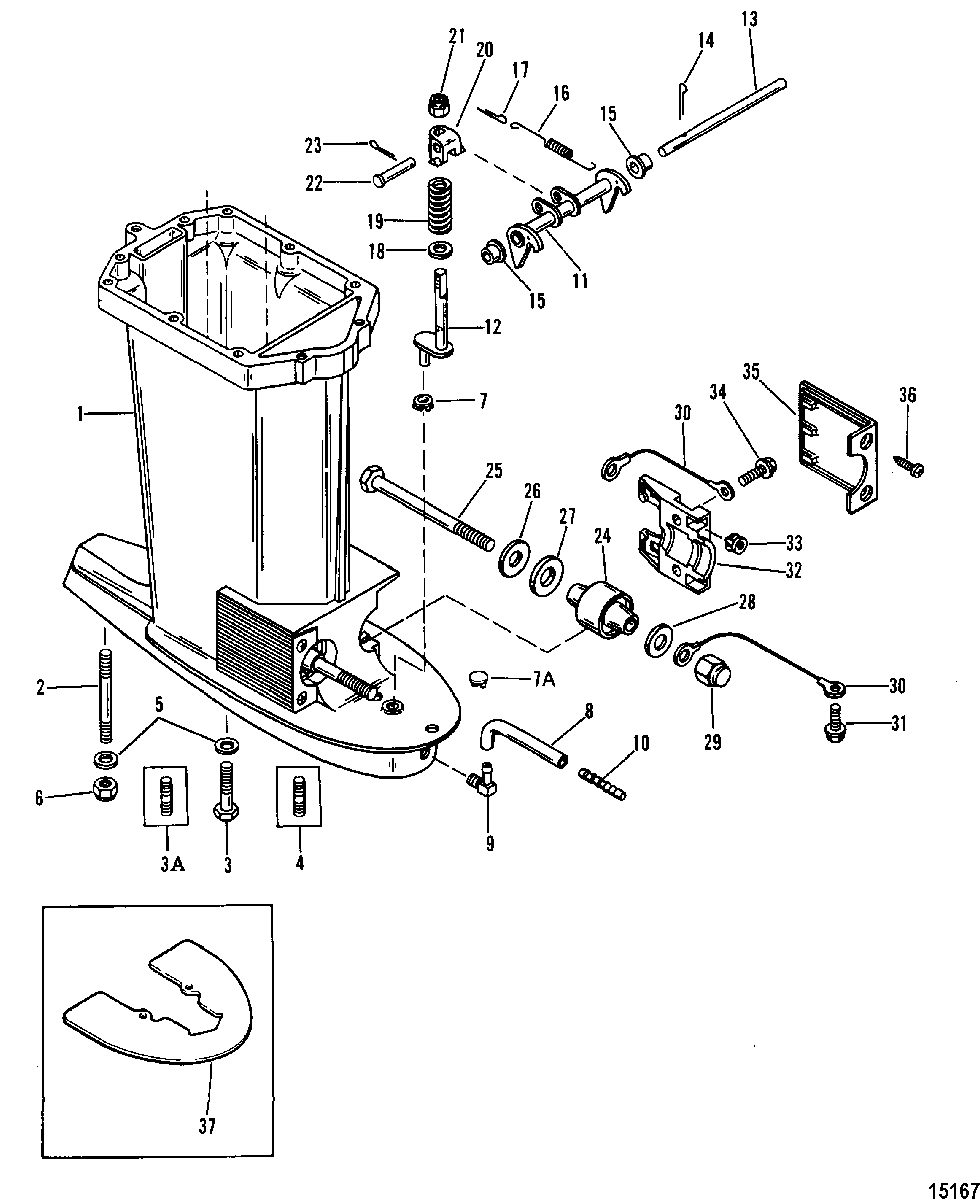

Driveshaft Housing для Mercury - 90 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    898289A49 HOUSING ASSEMBLY, Driveshaft, Black
    HOUSING ASSEMBLY, Driveshaft, Black
  • 1
    898289A49 HOUSING ASSEMBLY, Driveshaft, Gray
    HOUSING ASSEMBLY, Driveshaft, Gray
  • 1
    898289A49 HOUSING ASSEMBLY, Driveshaft, Oyster
    HOUSING ASSEMBLY, Driveshaft, Oyster
  • 2
    16-903501 STUD, (M10 x 100), Drive Shaft Housing, Long
    STUD, (M10 x 100), Drive Shaft Housing, Long
  • 2
    16-903502 STUD, (M10 x 227), Drive Shaft Housing, X-Long
    STUD, (M10 x 227), Drive Shaft Housing, X-Long
  • 3
    10-4000380 SCREW, (M10 x 45), Gear Housing, Long, Black, Gray
    SCREW, (M10 x 45), Gear Housing, Long, Black, Gray
  • 3A
    16-9035012 STUD, Gear Housing, Oyster
    STUD, Gear Housing, Oyster
  • 4
    16-903503 STUD, (M10 x 190), Gear Housing, X-Long
    STUD, (M10 x 190), Gear Housing, X-Long
  • 5
    12-45176 WASHER, Gear Housing Stud, Screw
    (Quantity Of Three On Oyster)
    WASHER, Gear Housing Stud, Screw
    (Quantity Of Three On Oyster)
  • 6
    11-40140 NUT, (M10), Gear Housing Stud
    (X-Long, Quantity Of Five)
    NUT, (M10), Gear Housing Stud
    (X-Long, Quantity Of Five)
  • 7
    429222 GUIDE, Push Rod, Non Power Trim
    GUIDE, Push Rod, Non Power Trim
  • 7A
    429221 PLUG, Power Trim, Black, Gray
    PLUG, Power Trim, Black, Gray
  • 7A
    19-158641 PLUG, Power Trim, Oyster
    PLUG, Power Trim, Oyster
  • 8
    22-85822A4 PICKUP ASSEMBLY, Speedometer
    PICKUP ASSEMBLY, Speedometer
  • 9
    22-433351 CONNECTOR, 90 Degree (.125-27) Nylon
    CONNECTOR, 90 Degree (.125-27) Nylon
  • 10
    22-85822T CONNECTOR, Straight
    CONNECTOR, Straight
  • 11
    14664A2 HOOK ASSEMBLY, Reverse, Non Power Trim
    HOOK ASSEMBLY, Reverse, Non Power Trim
  • 12
    16686 PUSH ROD, Non Power Trim
    PUSH ROD, Non Power Trim
  • 13
    99606 SHAFT, Reverse Lock, Non Power Trim
    SHAFT, Reverse Lock, Non Power Trim
  • 14
    18-45882 COTTER PIN, Shaft, Non Power Trim
    COTTER PIN, Shaft, Non Power Trim
  • 15
    23-69132 BUSHING, Reverse Lock Shaft
    (Non Power Trim)
    BUSHING, Reverse Lock Shaft
    (Non Power Trim)
  • 16
    24-996261 SPRING, Reverse Lock, Non Power Trim
    SPRING, Reverse Lock, Non Power Trim
  • 17
    18-47959 COTTER PIN, Spring, Non Power Trim
    COTTER PIN, Spring, Non Power Trim
  • 18
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Push Rod, Non Power Trim
    WASHER, (.323 x .563 x .063) Stainless Steel, Push Rod, Non Power Trim
  • 19
    24-16733 SPRING (Push Rod Nut, Non Power Trim)
    SPRING (Push Rod Nut, Non Power Trim)
  • 20
    996361 YOKE, Push Rod, Non Power Trim
    YOKE, Push Rod, Non Power Trim
  • 21
    11-82670911 NUT, (.312-24) Stainless Steel, Jam, Push Rod, Non Power Trim
    NUT, (.312-24) Stainless Steel, Jam, Push Rod, Non Power Trim
  • 22
    17-99663 PIN, Clevis, Reverse Lock, Non Power Trim
    PIN, Clevis, Reverse Lock, Non Power Trim
  • 23
    18-25191 COTTER PIN, Clevis Pin, Non Power Trim
    COTTER PIN, Clevis Pin, Non Power Trim
  • 24
    42930A1 MOUNT, Lower, Long
    MOUNT, Lower, Long
  • 24
    44343T1 MOUNT, Lower, X-Long
    MOUNT, Lower, X-Long
  • 25
    10-898835001 BOLT, (M12 x 154), Lower Mount
    BOLT, (M12 x 154), Lower Mount
  • 26
    12-28051 WASHER, Lower Mount Bolt
    WASHER, Lower Mount Bolt
  • 27
    12-28053 WASHER, Lower Mount Bolt
    WASHER, Lower Mount Bolt
  • 28
    12-30119 WASHER, (.875 Inch Outside Diameter), Lower Mount Bolt
    WASHER, (.875 Inch Outside Diameter), Lower Mount Bolt
  • 29
    11-43528 NUT, (M12), Lower Mount Bolt
    NUT, (M12), Lower Mount Bolt
  • 30
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 31
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, Ground Wire
    SCREW, (.250-20 x .500) Stainless Steel, Ground Wire
  • 32
    8M0036730 CLAMP, Lower Mount
    CLAMP, Lower Mount
  • 33
    11-35521 NUT, Nylon, Cover Screw
    NUT, Nylon, Cover Screw
  • 34
    10-40011149 SCREW, Clamp
    SCREW, Clamp
  • 35
    100-8M4500752 COVER, Lower Mount, Black
    COVER, Lower Mount, Black
  • 35
    100-8M4500752 COVER, Lower Mount, Gray
    COVER, Lower Mount, Gray
  • 35
    100-8M4500752 COVER, Lower Mount, Oyster
    COVER, Lower Mount, Oyster
  • 36
    10-88417 SCREW, (#12-24 x .620), Cover
    SCREW, (#12-24 x .620), Cover
  • 37
    18579T6 SPLASH PLATE, Oyster
    SPLASH PLATE, Oyster
  • --
    12092A3 SPACER KIT, Drive Shaft Housing X-Long Black
    SPACER KIT, Drive Shaft Housing X-Long Black
  • --
    12092A4 SPACER KIT, Drive Shaft Housing X-Long (Gray)
    SPACER KIT, Drive Shaft Housing X-Long (Gray)
