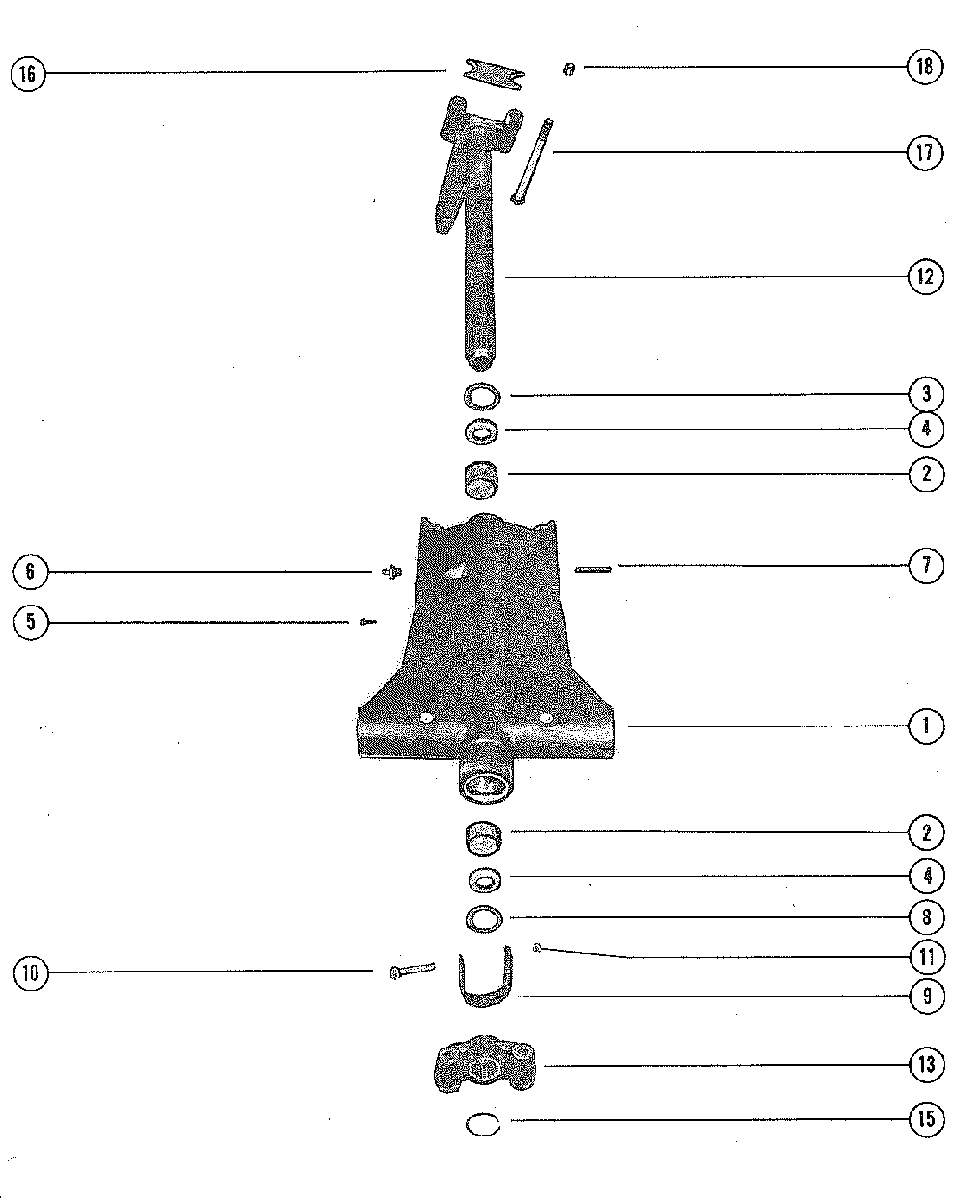

SWIVEL BRACKET ASSEMBLY для Mercury - 800 (4 CYL.), 80 (4 CYL.) 7110998 THRU 7146212

  • №
    Артикул
    Название
  • 1
    1490-7256A2 SWIVEL BRACKET ASS'Y(SHORT SHAFT)
    SWIVEL BRACKET ASS'Y(SHORT SHAFT)
  • 1
    1482-6386A4 SWIVEL BRACKET ASS'Y (LONG SHAFT)
    SWIVEL BRACKET ASS'Y (LONG SHAFT)
  • 2
    23-69341 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 3
    12-69342 WASHER, SWIVEL PIN - UPPER
    WASHER, SWIVEL PIN - UPPER
  • 4
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 5
    10-47828 SCREW, DRIVE - SWIEL BRACKET
    SCREW, DRIVE - SWIEL BRACKET
  • 6
    22-74036 FITTING, GREASE
    FITTING, GREASE
  • 7
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 8
    12-37429 WASHER, SWIVEL PIN - LOWER
    WASHER, SWIVEL PIN - LOWER
  • 9
    28205T STRAP STOP
    DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP
    DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 10
    10-56743 SCREW
    STRAP STOP TO HOUSING (3 1/8")-SHORT SHAFT
    SCREW
    STRAP STOP TO HOUSING (3 1/8")-SHORT SHAFT
  • 10
    10-28200 SCREW
    STRAP STOP TO HOUSING (3 7/8")-LONG SHAFT
    SCREW
    STRAP STOP TO HOUSING (3 7/8")-LONG SHAFT
  • 11
    11-25269 NUT, STRAP STOP FASTENING SCREW
    NUT, STRAP STOP FASTENING SCREW
  • 12
    17-73594A2 SWIVEL PIN ASS'Y (SHORT SHAFT)
    SWIVEL PIN ASS'Y (SHORT SHAFT)
  • 12
    17-73593A2 SWIVEL PIN ASS'Y (LONG SHAFT)
    SWIVEL PIN ASS'Y (LONG SHAFT)
  • 13
    73984T YOKE, BOTTOM
    YOKE, BOTTOM
  • 15
    53-73591 SNAP RING, YOKE ATTACHING
    SNAP RING, YOKE ATTACHING
  • 16
    28203 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 17
    10-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
    BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
  • 18
    11-34933 NUT, STEERING ARM BOLT FASTENING
    NUT, STEERING ARM BOLT FASTENING
