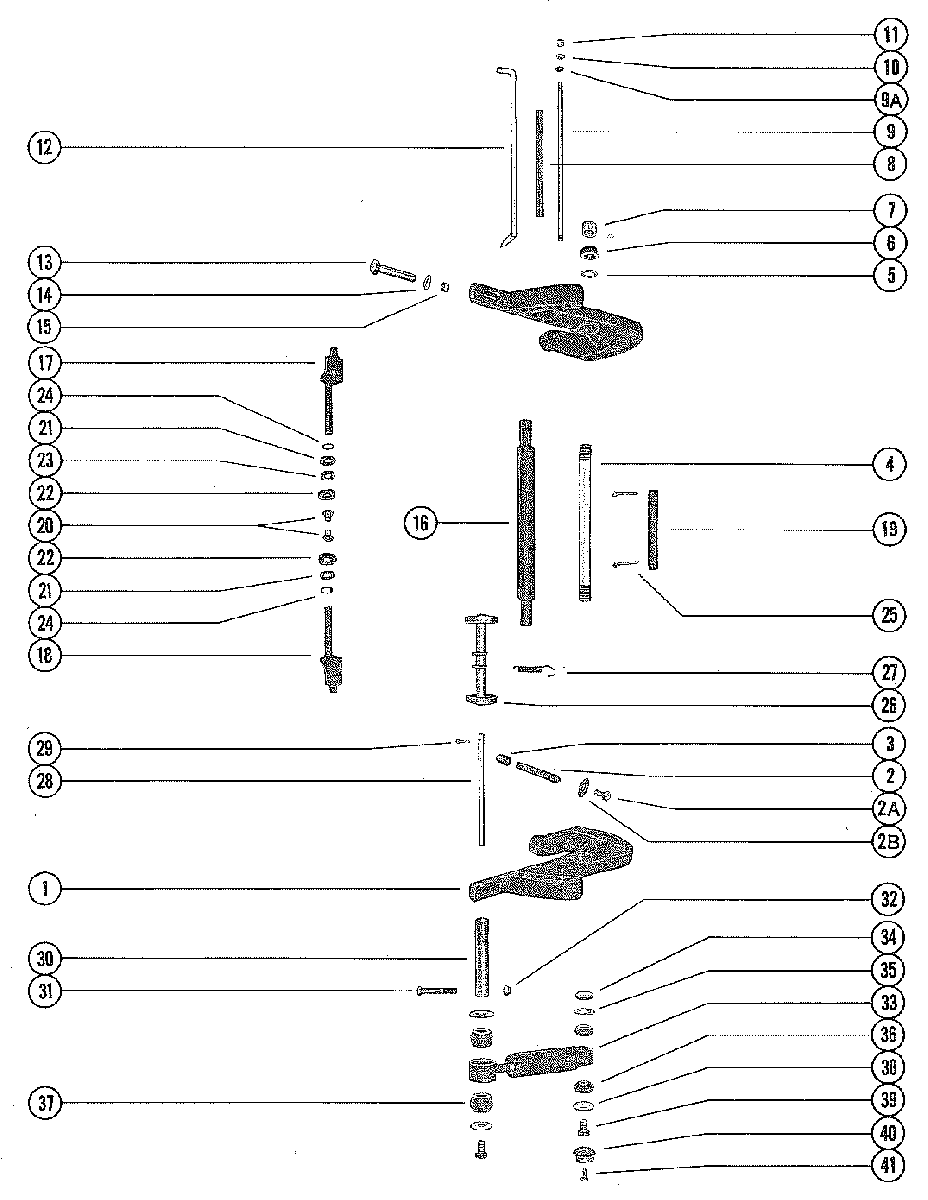

CLAMP BRACKET AND REVERSE LOCK для Mercury - 800 (4 CYL.), 80 (4 CYL.) 7110998 THRU 7146212

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 2A
    10-78495 SCREW, THUMB SCREW
    SCREW, THUMB SCREW
  • 2B
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 3
    75043 COVER, THUMB SCREW
    COVER, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9A
    12-36001 WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
  • 14
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 13
    10-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")
    BOLT, CLAMP BRACKET TO TRANSOM (3")
  • 14
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 15
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 16
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 19
    47802 TUBE, TILT LOCK (SHORT SHAFT)
    TUBE, TILT LOCK (SHORT SHAFT)
  • 20
    23-47803 BUSHING, TILT LOCK TUBE (SHORT SHAFT)
    BUSHING, TILT LOCK TUBE (SHORT SHAFT)
  • 21
    13-69150 WASHER, WAVE-TILT LOCK TUBE (SHORT SHAFT)
    WASHER, WAVE-TILT LOCK TUBE (SHORT SHAFT)
  • 17
    76386 TILT LOCK ASSEMBLY, STARBOARD
    TILT LOCK ASSEMBLY, STARBOARD
  • 18
    76385T TILT LOCK ASSEMBLY, PORT
    TILT LOCK ASSEMBLY, PORT
  • 19
    79659 TUBE, TILT LOCK (LONG SHAFT)
    TUBE, TILT LOCK (LONG SHAFT)
  • 21
    13-69150 WASHER
    WAVE-TILT LOCK (STARBOAR SIDE ONLY) -LONG SHAFT
    WASHER
    WAVE-TILT LOCK (STARBOAR SIDE ONLY) -LONG SHAFT
  • 22
    26-22734 OIL SEAL
    SWIVEL BRACKET (TILT LOCK) -LONG SHAFT
    OIL SEAL
    SWIVEL BRACKET (TILT LOCK) -LONG SHAFT
  • 23
    12-76388 WASHER
    TILT LOCK (STARBOARD SIDE ONLY) -LONG SHAFT
    WASHER
    TILT LOCK (STARBOARD SIDE ONLY) -LONG SHAFT
  • 24
    25-627021 "O" RING, TILT LOCK (LONG SHAFT)
    "O" RING, TILT LOCK (LONG SHAFT)
  • 25
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
  • 26
    87431 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 27
    24-29821 SPRING, REVERSE LOCK (SHORT SHAFT)
    SPRING, REVERSE LOCK (SHORT SHAFT)
  • 27
    24-78203A2 SPRING ASSEMBLY, REVERSE LOCK (LONG SHAFT)
    SPRING ASSEMBLY, REVERSE LOCK (LONG SHAFT)
  • 28
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 29
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 30
    55-696531 PIN, LOCK SHOCK MOUNTING (SHORT SHAFT)
    PIN, LOCK SHOCK MOUNTING (SHORT SHAFT)
  • 30
    55-28414 PIN, LOWER SHOCK MOUNTING (LONG SHAFT)
    PIN, LOWER SHOCK MOUNTING (LONG SHAFT)
  • 31
    10-21937 SCREW, LOWER SHOCK PIN (2") (LONG SHAFT)
    SCREW, LOWER SHOCK PIN (2") (LONG SHAFT)
  • 32
    11-20184 NUT, LOWER SHOCK PIN SCREW (LONG SHAFT)
    NUT, LOWER SHOCK PIN SCREW (LONG SHAFT)
  • 33
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
  • 34
    23-73203 SPACER
    UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER
    UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 35
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 36
    23-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
  • 37
    23-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
  • 38
    12-69374 WASHER
    UPPER/LOWER SHOCK MOUNTING PIN (LOWER)
    WASHER
    UPPER/LOWER SHOCK MOUNTING PIN (LOWER)
  • 39
    10-69375 SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN
    SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN
  • 40
    23-69132 BUSHING PIVOT SHAFT
    BUSHING PIVOT SHAFT
  • --
    27-73645A87 GASKET SET
    GASKET SET
