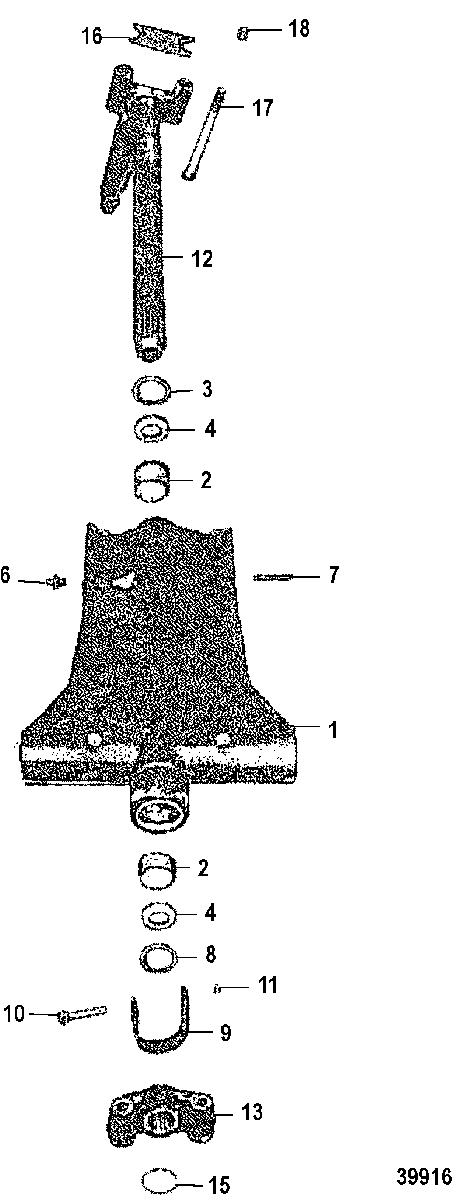

SWIVEL BRACKET ASSEMBLY для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 9256131 THRU 9393855

  • №
    Артикул
    Название
  • 1
    1490-7256A2 SWIVEL BRACKET ASSEMBLY
    (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY
    (SHORT SHAFT)
  • 1
    1482-7670A5 SWIVEL BRACKET ASSEMBLY
    (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY
    (LONG SHAFT)
  • 2
    23-69341 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 3
    12-69342 WASHER, SWIVEL PIN - UPPER
    WASHER, SWIVEL PIN - UPPER
  • 4
    26-37448 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING (SHORT SHAFT)
    PIN, REVERSE LOCK SPRING ATTACHING (SHORT SHAFT)
  • 8
    13-88507 WAVE WASHER, SWIVEL PIN (LOWER)
    WAVE WASHER, SWIVEL PIN (LOWER)
  • 9
    28205T STRAP, Stop, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP, Stop, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 10
    10-56743 SCREW, (.375-24 x 3.125), STRAP STOP TO HOUSING
    SHORT SHAFT
    SCREW, (.375-24 x 3.125), STRAP STOP TO HOUSING
    SHORT SHAFT
  • 10
    10-28200 SCREW, (.375-24 x 2.875), STRAP STOP TO HOUSING
    LONG SHAFT
    SCREW, (.375-24 x 2.875), STRAP STOP TO HOUSING
    LONG SHAFT
  • 11
    11-25269 NUT, (.375-24), STRAP STOP FASTENING SCREW
    NUT, (.375-24), STRAP STOP FASTENING SCREW
  • 12
    17-73594A2 SWIVEL PIN ASSEMBLY, Steering Arm
    (SHORT SHAFT)
    SWIVEL PIN ASSEMBLY, Steering Arm
    (SHORT SHAFT)
  • 12
    17-73593A2 SWIVEL PIN ASSEMBLY, Steering Arm
    (LONG SHAFT)
    SWIVEL PIN ASSEMBLY, Steering Arm
    (LONG SHAFT)
  • 13
    73984T YOKE, BOTTOM
    YOKE, BOTTOM
  • 15
    53-73591 RING, Retaining, YOKE ATTACHING
    RING, Retaining, YOKE ATTACHING
  • 16
    28203 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 17
    10-49554 BOLT, (.437-20 x 5.875), STEERING ARM TO UPPER MOUNT
    BOLT, (.437-20 x 5.875), STEERING ARM TO UPPER MOUNT
  • 18
    11-34933 NUT, (.437-20) Stainless Steel, STEERING ARM BOLT FASTENING
    NUT, (.437-20) Stainless Steel, STEERING ARM BOLT FASTENING
