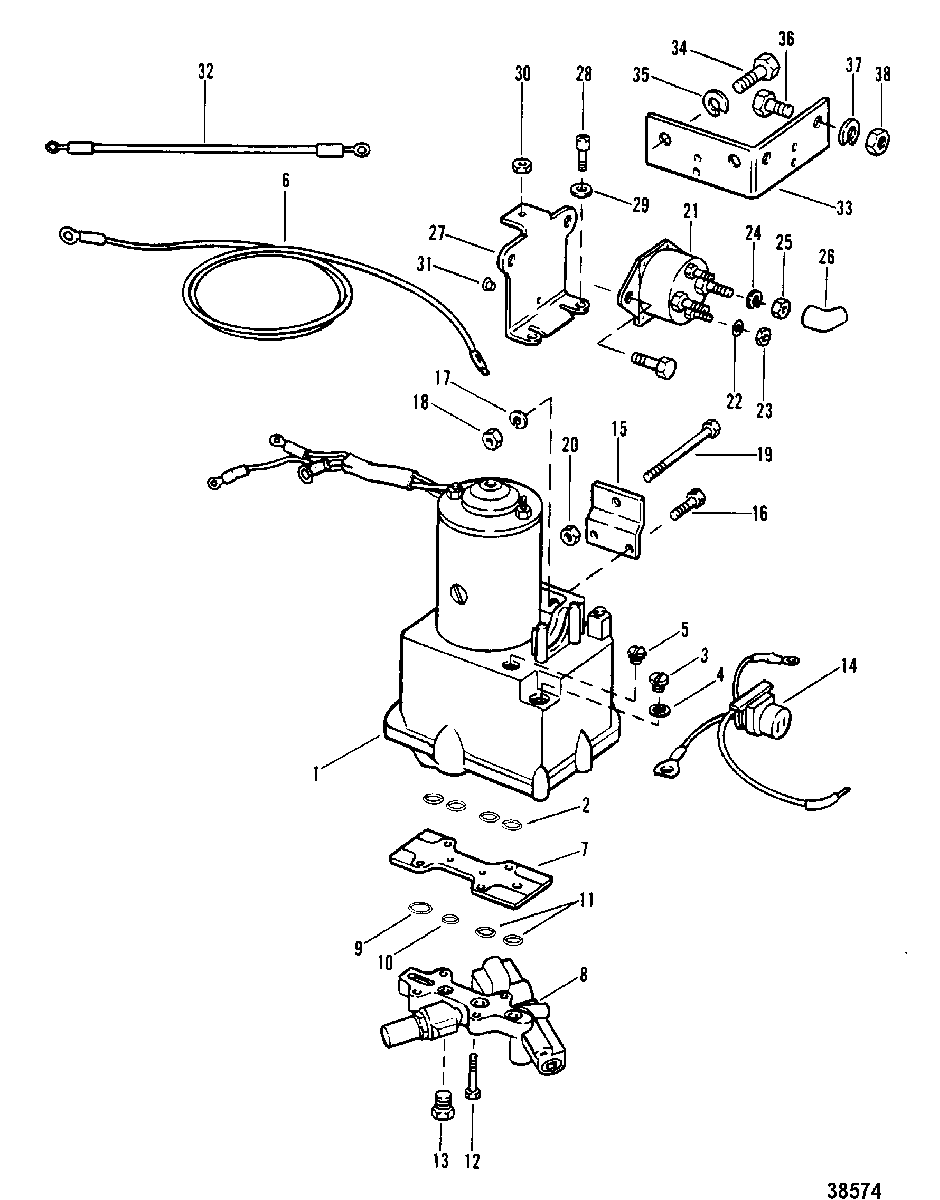

POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE) для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 9256131 THRU 9393855
-
№АртикулНазвание
-
192975A32 PUMP ASSEMBLY, Hydraulic (METAL RESERVOIR)PUMP ASSEMBLY, Hydraulic (METAL RESERVOIR)
-
192975A32 PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)
-
225-48171 O-RING, (.364. x .070), MANIFOLD PLATEO-RING, (.364. x .070), MANIFOLD PLATE
-
310-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMPSCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMP
-
412-191833 WASHERWASHER
-
510-62269 SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMPSCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
-
632979 LEAD, Battery (POSITIVE)LEAD, Battery (POSITIVE)
-
632988 LEAD, Battery (NEGATIVE)LEAD, Battery (NEGATIVE)
-
745336 PLATE, MANIFOLDPLATE, MANIFOLD
-
845197A2 VALVE ASSEMBLY, ControlVALVE ASSEMBLY, Control
-
--25-48171 O-RING, (.364. x .070) (SEE REF. #2)O-RING, (.364. x .070) (SEE REF. #2)
-
925-45254 O-RING, CONTROL VALVE (3/4" O.D.)O-RING, CONTROL VALVE (3/4" O.D.)
-
1025-48171 O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)
-
1125-45253 O-RING, CONTROL VALVE (5/8" O.D.)O-RING, CONTROL VALVE (5/8" O.D.)
-
1210-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
1322-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1484-74023A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1545377T BRACKET, MOUNTINGBRACKET, MOUNTING
-
1610-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
1713-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1811-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
1910-68298 BOLT, (.375-16 x 3.250), HYDRUALIC PUMP TO BOATBOLT, (.375-16 x 3.250), HYDRUALIC PUMP TO BOAT
-
2011-82671112 NUTNUT
-
2189-853654A1 SOLENOID, StarterSOLENOID, Starter
-
2213-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
-
2311-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINALNUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
-
2413-26993 LOCKWASHER, (.312), SOLENOID TERMINALLOCKWASHER, (.312), SOLENOID TERMINAL
-
2511-68292 NUT, (.312-18), SOLENOID TERMINALNUT, (.312-18), SOLENOID TERMINAL
-
2646265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
2774407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
2810-21140 SCREW, (.250-28 x .50)SCREW, (.250-28 x .50)
-
2913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3011-24656 NUTNUT
-
31269011 BUMPER, RUBBER - SOLENOID BRACKETBUMPER, RUBBER - SOLENOID BRACKET
-
3284-79139A2 WIRE ASSEMBLY, Jumper (POSITIVE)WIRE ASSEMBLY, Jumper (POSITIVE)
-
3255992 WIRE, Jumper (NEGATIVE)WIRE, Jumper (NEGATIVE)
-
3374406 BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3410-69028 SCREW, (.250-28 x .750) Stainless SteelSCREW, (.250-28 x .750) Stainless Steel
-
3513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3610-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
3713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3811-21825 NUT, (.250-28)NUT, (.250-28)
