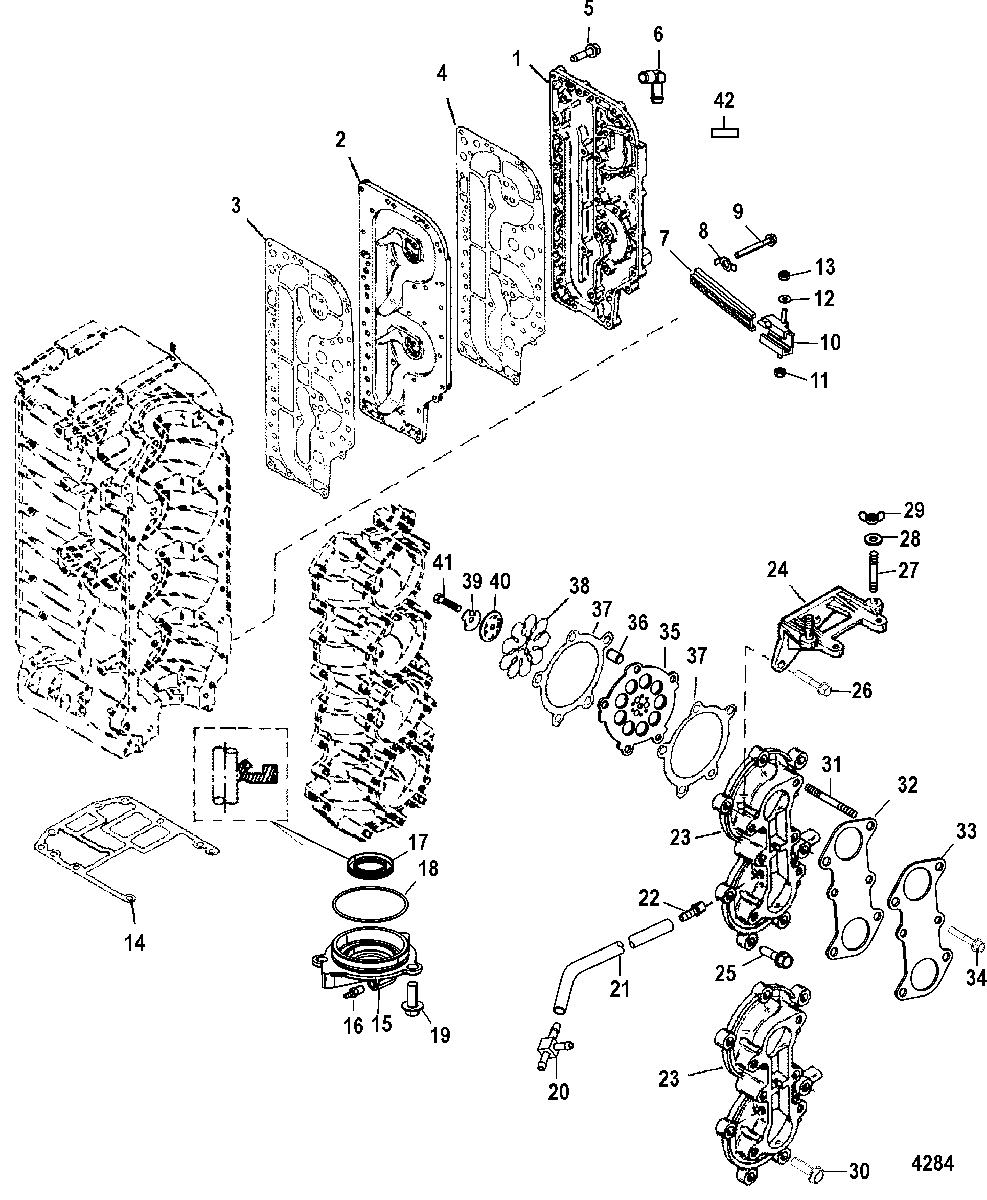

Induction Manifold and Reed Block для Mercury - 80 JET 1B000001 & Up
-
№АртикулНазвание
-
144325A1 COVER/PLATE KIT, ExhaustCOVER/PLATE KIT, Exhaust
-
2NSS NOT SOLD SEPARATE, Exhaust PlateNOT SOLD SEPARATE, Exhaust Plate
-
327-812775007 GASKET, Baffle Plate to Cylinder BlockGASKET, Baffle Plate to Cylinder Block
-
427-812775006 GASKET, Exhaust Baffle to Exhaust CoverGASKET, Exhaust Baffle to Exhaust Cover
-
510-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
622-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
742881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
814-42981 TAB WASHERTAB WASHER
-
910-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
10988851 SLIDESLIDE
-
1111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1212-35459 WASHERWASHER
-
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1427-430075 GASKETGASKET
-
151169-858552T2 CAP ASSEMBLY, Lower EndCAP ASSEMBLY, Lower End
-
1621-426585 CHECK VALVECHECK VALVE
-
1726-419533 SEAL, OilSEAL, Oil
-
1825-89224 O-RINGO-RING
-
1910-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
2022-13033 TEE FITTINGTEE FITTING
-
2132-1430165 TUBING, (38.00 Inches Bulk) (Cut to 5.50 Inch Length)TUBING, (38.00 Inches Bulk) (Cut to 5.50 Inch Length)
-
2222-130351 FITTING (Straight)FITTING (Straight)
-
2313545A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
24827514 BRACKETBRACKET
-
2510-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2610-81742740 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
2716-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
2812-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
2911-816872 WING NUTWING NUT
-
3010-40001167 SCREW, (M8 x 110) (#4 Cylinder)SCREW, (M8 x 110) (#4 Cylinder)
-
3116-824470 STUD, (M8 x 1.25) (#1, 2, 3 Cylinder)STUD, (M8 x 1.25) (#1, 2, 3 Cylinder)
-
3227-134612 GASKETGASKET
-
3313460 COVERCOVER
-
3410-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
3542963A11 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
36NSS NOT SOLD SEPARATE, Dowel PinNOT SOLD SEPARATE, Dowel Pin
-
3727-139376 GASKETGASKET
-
3834-43018A1 REED SETREED SET
-
3914-429821 TAB WASHERTAB WASHER
-
4042924 RETAINERRETAINER
-
4110-88421471 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4237-804667A06 DECAL, EPA Label Information (2006)DECAL, EPA Label Information (2006)
-
4237-804667A05 DECAL, EPA Label Information (2005)DECAL, EPA Label Information (2005)
-
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
