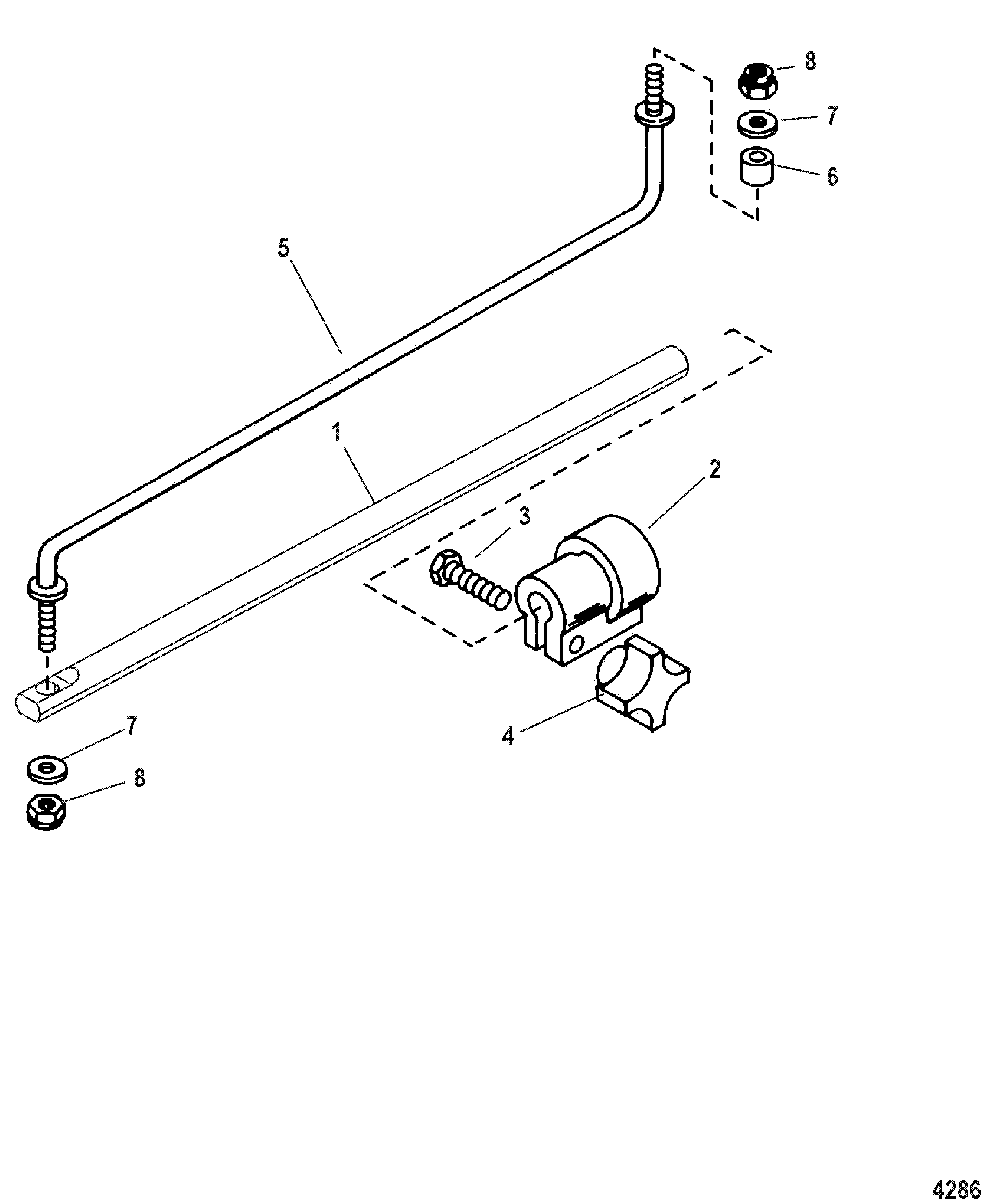

Co-Pilot для Mercury - 80 JET 1B000001 & Up

  • №
    Артикул
    Название
  • -
    56-52148A7 CO-PILOT ASSEMBLY
    CO-PILOT ASSEMBLY
  • 1
    521481 PILOT ROD
    PILOT ROD
  • 2
    11-8M0103848 NUT ASSEMBLY
    NUT ASSEMBLY
  • 3
    10-56500 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 4
    12-77674 WASHER
    WASHER
  • 5
    821621 KNOB, Prong
    KNOB, Prong
  • 6
    873491 ROD
    ROD
  • 7
    23-521512 BUSHING
    BUSHING
  • 8
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 9
    11-826709111 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
