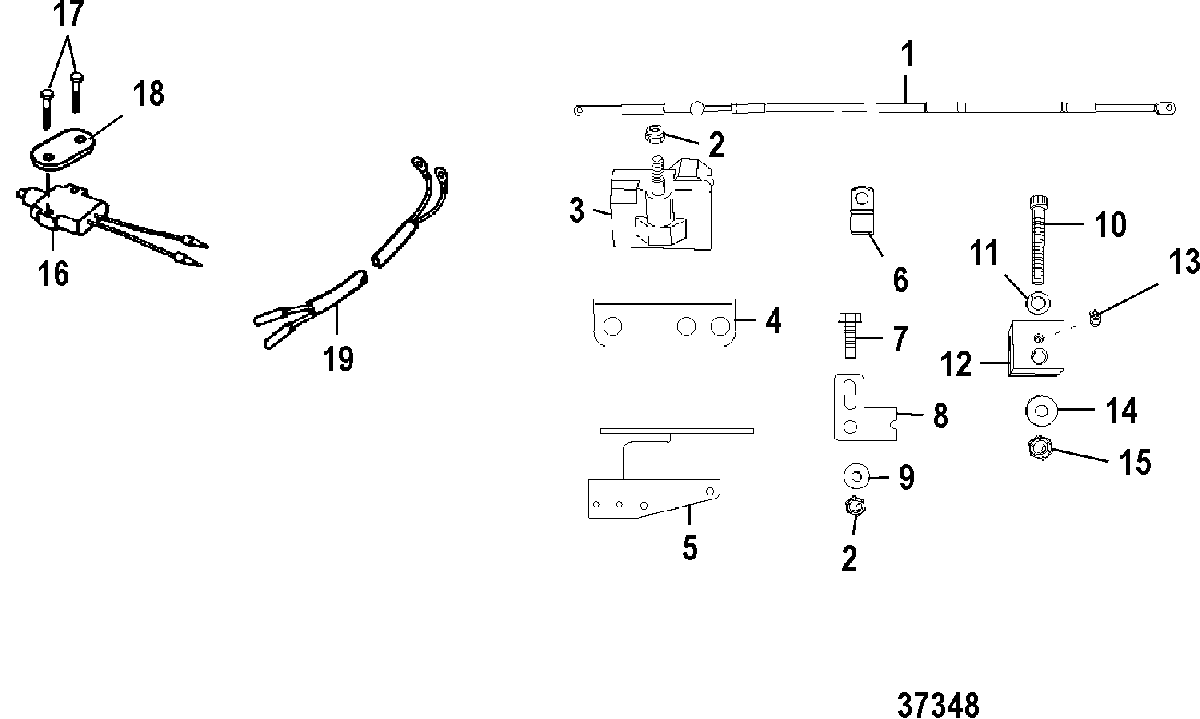

TILLER HANDLE ADAPTOR KIT(JET 80) для Mercury - 80 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
-850000A3 TILLER HANDLE ADAPTOR KITTILLER HANDLE ADAPTOR KIT
-
1832001A6 CABLE ASSEMBLY, ShiftCABLE ASSEMBLY, Shift
-
211-401386 NUT, (M6)NUT, (M6)
-
3988851 SLIDESLIDE
-
4828095 BRACKETBRACKET
-
5824930T3 BRACKETBRACKET
-
654-64646 CLIPCLIP
-
710-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
8828096 BLOCK, Shift Cable-RetainingBLOCK, Shift Cable-Retaining
-
912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1010-71958 SCREW, (.250-28 x 1.75)SCREW, (.250-28 x 1.75)
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
12828094 BLOCK, Shift Cable-RetainingBLOCK, Shift Cable-Retaining
-
1310-72734 SET SCREW, (#10-32 x .310)SET SCREW, (#10-32 x .310)
-
1412-35459 WASHERWASHER
-
1511-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1687-8M0052927 SWITCHSWITCH
-
1710-88075020 SCREW, (M3.5 x 20) Stainless SteelSCREW, (M3.5 x 20) Stainless Steel
-
18824923 PLATEPLATE
-
1984-824934A1 CABLE ASSEMBLYCABLE ASSEMBLY
