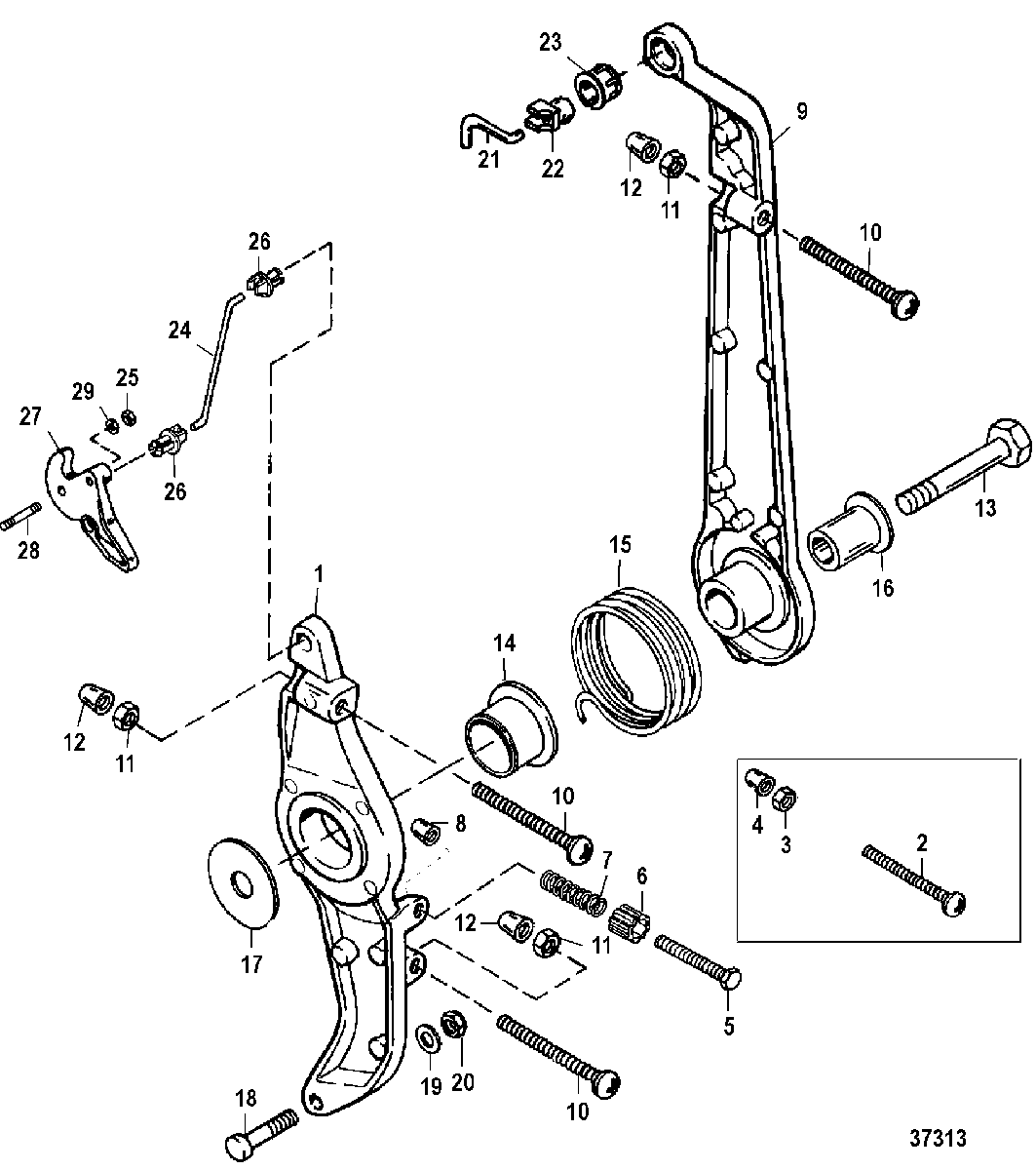

THROTTLE LEVER AND LINKAGE для Mercury - 80 JET 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    884309T LEVER, Throttle
    LEVER, Throttle
  • 2
    10-817582 SCREW, Adjusting (M5 x 35)
    DESIGN I
    SCREW, Adjusting (M5 x 35)
    DESIGN I
  • 3
    11-400211 NUT, (M5) Stainless Steel
    DESIGN I
    NUT, (M5) Stainless Steel
    DESIGN I
  • 4
    48039 CAP
    DESIGN I
    CAP
    DESIGN I
  • 5
    10-827009 SCREW, (M5 x 40)
    DESIGN II
    SCREW, (M5 x 40)
    DESIGN II
  • 6
    826264 CAP
    DESIGN II
    CAP
    DESIGN II
  • 7
    24-826382 SPRING
    DESIGN II
    SPRING
    DESIGN II
  • 8
    48039 CAP
    DESIGN II
    CAP
    DESIGN II
  • 9
    884307T LEVER, Spark Advance
    LEVER, Spark Advance
  • 10
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 11
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 12
    42942 CAP
    CAP
  • 13
    10-4007180 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 14
    23-55171 BUSHING
    BUSHING
  • 15
    24-73375 SPRING
    SPRING
  • 16
    23-812930A1 BUSHING
    BUSHING
  • 17
    12-42980 WASHER
    WASHER
  • 18
    42927 INSERT
    INSERT
  • 19
    12-35459 WASHER
    WASHER
  • 20
    11-401386 NUT, (M6)
    NUT, (M6)
  • 21
    878170 SPARK ADVANCE ROD
    SPARK ADVANCE ROD
  • 22
    93421 SWIVEL BALL
    SWIVEL BALL
  • 23
    93254 SWIVEL BASE
    SWIVEL BASE
  • 24
    878173 LINK
    LINK
  • 25
    11-401386 NUT, (M6)
    NUT, (M6)
  • 26
    23-932481 BUSHING
    BUSHING
  • 27
    14518A2 CAM, Throttle
    (USE WITH M40 STUD)
    CAM, Throttle
    (USE WITH M40 STUD)
  • 27
    14518A2 CAM ASSEMBLY, Throttle
    (USE WITH M44 STUD)
    CAM ASSEMBLY, Throttle
    (USE WITH M44 STUD)
  • 28
    16-8161949 STUD
    (M6 X 40)
    STUD
    (M6 X 40)
  • 28
    16-8161949 STUD
    (M6 X 44) (INCLUDED WITH CAM)
    STUD
    (M6 X 44) (INCLUDED WITH CAM)
  • 29
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
