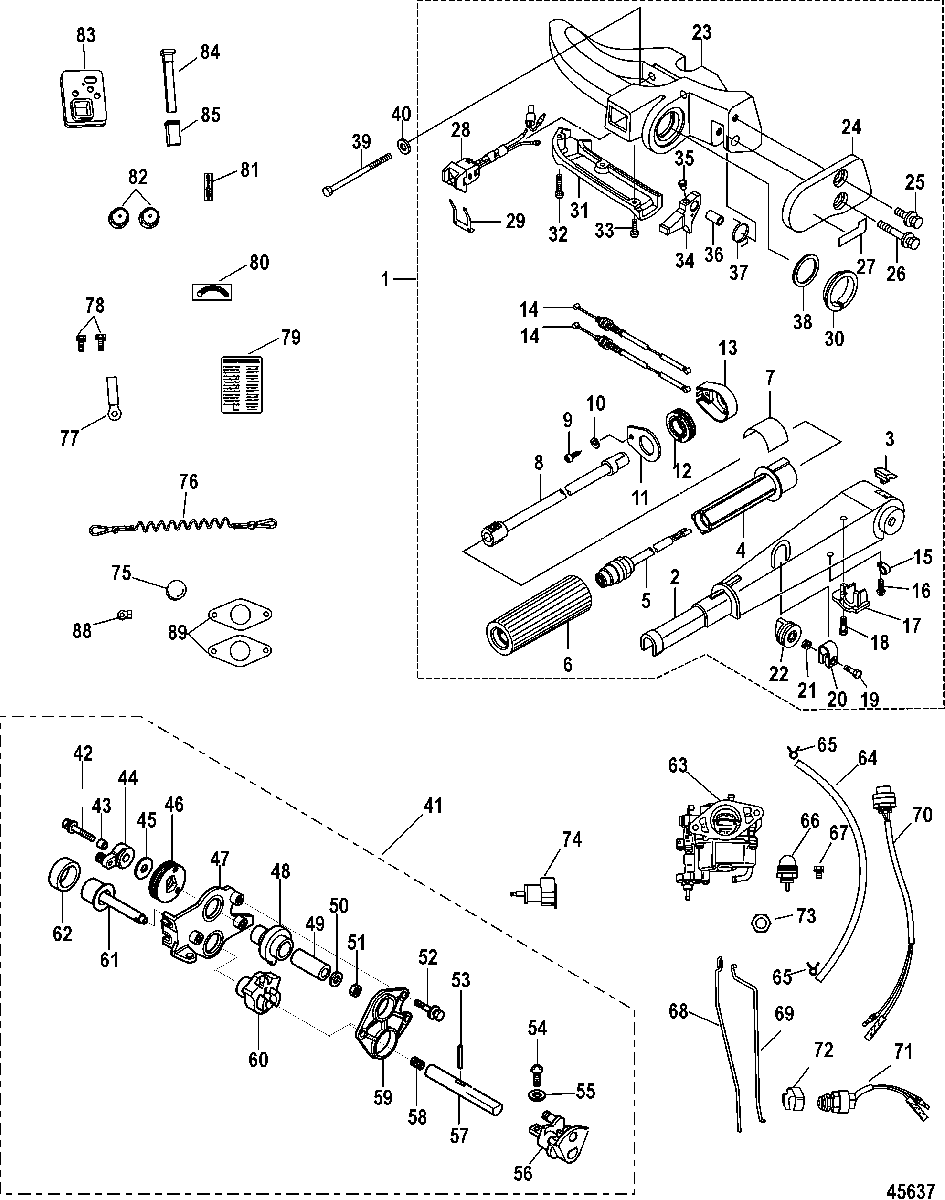

Tiller Handle Conversion Kit, Electric - 8M0051066 для Mercury - 8 (4-STROKE)(209cc) 0P325500 & Up

№

Артикул

Название
-

8M0103840 CONVERSION KIT, Tiller Handle

CONVERSION KIT, Tiller Handle
1

NSS NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY

NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY
2

8M0051374 TILLER HANDLE

TILLER HANDLE
3

8M0051375 PLUG, Cap

PLUG, Cap
4

8M0051377 GRIP

GRIP
5

8M0051405 SWITCH ASSEMBLY, Stop

SWITCH ASSEMBLY, Stop
6

8M0051376 GRIP, Rubber

GRIP, Rubber
7

37-896853008 DECAL, Tiller Handle Shift-Rabbit

DECAL, Tiller Handle Shift-Rabbit
8

8M0051379 SHAFT, Throttle

SHAFT, Throttle
9

10-878608 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)
10

12-8M0108373 WASHER, Stainless Steel

WASHER, Stainless Steel
11

8M0051388 COVER

COVER
12

8M0051386 PULLEY

PULLEY
13

8M0051387 HOUSING

HOUSING
14

8M0051390 CABLE, Throttle

CABLE, Throttle
15

54-22740 CLIP

CLIP
16

10-8M0051381 SCREW

SCREW
17

8M0051380 BRACKET, Aluminum

BRACKET, Aluminum
18

10-8M0051381 SCREW

SCREW
19

10-4000330 BOLT

BOLT
20

8M0051382 CLAMP, Friction - Throttle

CLAMP, Friction - Throttle
21

24-8M0051384 SPRING, Stainless Steel

SPRING, Stainless Steel
22

8M0051383 NUT

NUT
23

8M0051392 HANDLE, Carrying

HANDLE, Carrying
24

8M0051400 COVER

COVER
25

10-823042 BOLT, Stainless Steel

BOLT, Stainless Steel
26

10-8M0051402 BOLT, Stainless Steel

BOLT, Stainless Steel
27

37-892904006 DECAL, Tiller Lock Release

DECAL, Tiller Lock Release
28

87-892395A01 SWITCH ASSEMBLY, Stop

SWITCH ASSEMBLY, Stop
29

8M0032846 RETAINER, Brass

RETAINER, Brass
30

23-8M0051403 BUSHING, Plastic

BUSHING, Plastic
31

8M0051393 COVER

COVER
32

10-4000330 BOLT

BOLT
33

10-8M0051394 SCREW, Stainless Steel (M4 x 16)

SCREW, Stainless Steel (M4 x 16)
34

8M0051396 LEVER, Tiller Lock - Stainless Steel

LEVER, Tiller Lock - Stainless Steel
35

8M0051383 NUT

NUT
36

8M0051397 COLLAR, Stainless Steel

COLLAR, Stainless Steel
37

24-8M0051398 SPRING, Stainless Steel

SPRING, Stainless Steel
38

12-8M0051404 WASHER, Rubber

WASHER, Rubber
39

10-8M0058362 BOLT, Steel

BOLT, Steel
40

12-879194340 WASHER, Stainless Steel

WASHER, Stainless Steel
41

NSS NOT SOLD SEPARATE, GEAR ASEMBLY, Throttle Only

NOT SOLD SEPARATE, GEAR ASEMBLY, Throttle Only
42

10-8M0102279 BOLT, Stainless Steel

BOLT, Stainless Steel
43

23-895126 COLLAR, (6 mm)

COLLAR, (6 mm)
44

803572001 OPENER, Throttle

OPENER, Throttle
45

12-953921 WASHER

WASHER
46

895101401 DRUM, Throttle

DRUM, Throttle
47

895158 GEAR PLATE

GEAR PLATE
48

895101400 GEAR, Drive

GEAR, Drive
49

23-895162001 COLLAR, Steel

COLLAR, Steel
50

12-16826 WASHER, Stainless Steel

WASHER, Stainless Steel
51

11-400212 NUT

NUT
52

10-823042 BOLT, Stainless Steel

BOLT, Stainless Steel
53

17-16085003 PIN

PIN
54

10-855544014 SCREW

SCREW
55

12-16335 WASHER

WASHER
56

803768002 SHIFT DETENT

SHIFT DETENT
57

892771 SHAFT

SHAFT
58

24-813028003 SPRING

SPRING
59

895159 GEAR PLATE

GEAR PLATE
60

895161 GEAR, Driven

GEAR, Driven
61

892772 KNOB

KNOB
62

26-16219002 SEAL

SEAL
63

3303-8M0104462 CARBURETOR

CARBURETOR
64

32-879194473 HOSE, Rubber (300 mm)

HOSE, Rubber (300 mm)
65

54-95224 CLIP

CLIP
66

895124 PUMP ASSEMBLY, Priming

PUMP ASSEMBLY, Priming
67

10-8230427 BOLT

BOLT
68

803574002 ROD, Throttle

ROD, Throttle
69

855561007 ROD, Choke Link

ROD, Choke Link
70

87-853820A02 SWITCH ASSEMBLY, Start

SWITCH ASSEMBLY, Start
71

87-8M0127937 SWITCH, Neutral

SWITCH, Neutral
72

803841 ACTUATOR

ACTUATOR
73

11-895177 NUT

NUT
74

802971001 SHIFT DETENT

SHIFT DETENT
75

25-162284 GROMMET

GROMMET
76

8M0092850 LANYARD ASSEMBLY

LANYARD ASSEMBLY
77

54-8M0130961 CLAMP

CLAMP
78

10-8248324 SCREW, (M6 x 16)

SCREW, (M6 x 16)
79

NSS NOT SOLD SEPARATE

NOT SOLD SEPARATE
80

37-859278003 DECAL, Throttle Only

DECAL, Throttle Only
81

37-859278004 DECAL, Start

DECAL, Start
82

11-85372214 CAP NUT

CAP NUT
83

25-895175 GROMMET

GROMMET
84

855565002 KNOB, Choke

KNOB, Choke
85

23-851858005 BUSHING

BUSHING
