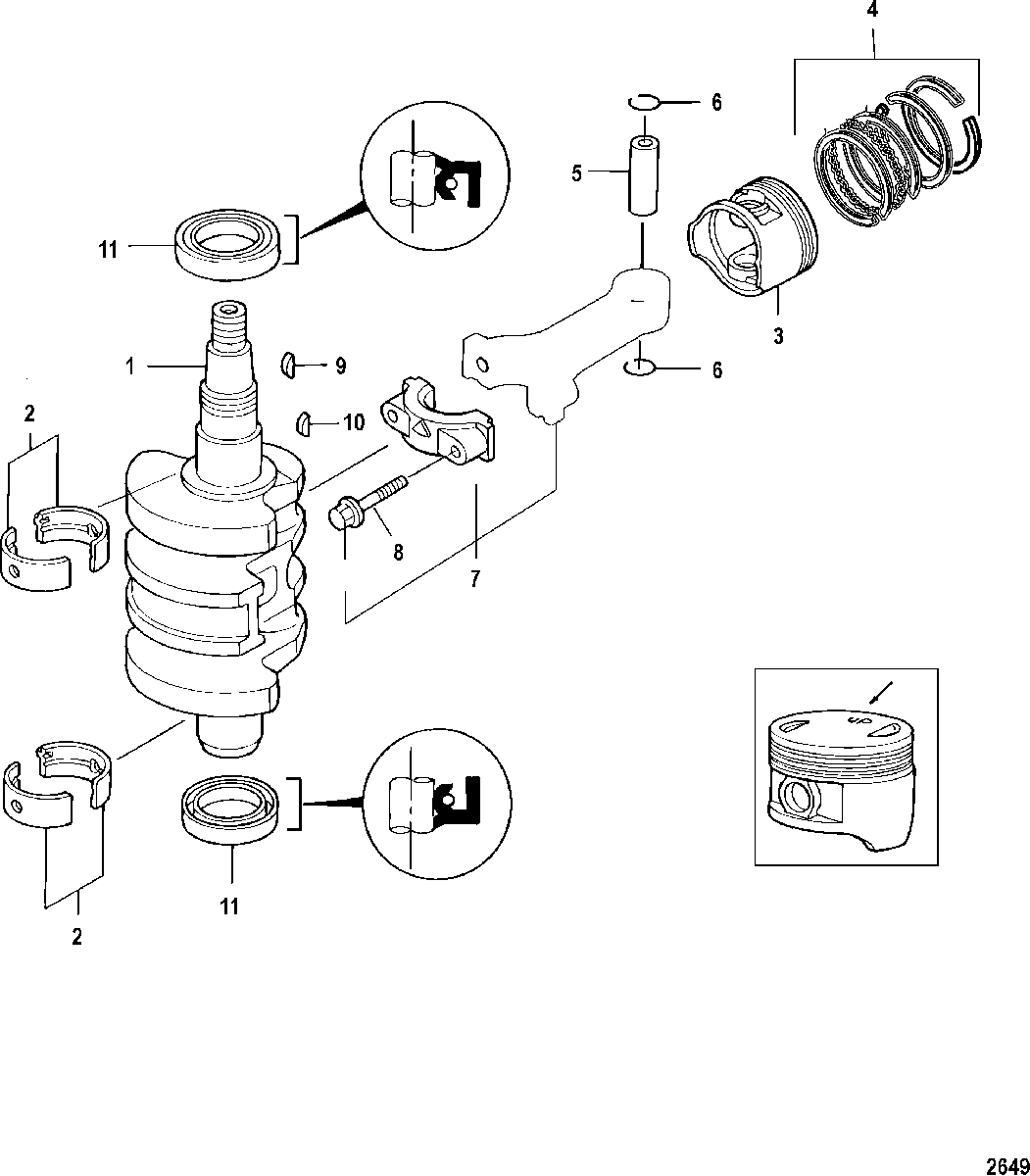

Crankshaft, Pistons and Connecting Rods, 0R310614 and Below для Mercury - 8 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    400-834957T01 CRANKSHAFT
    CRANKSHAFT
  • 2
    31-8M0054680 BEARING, Black
    BEARING, Black
  • 2
    31-8M0054681 BEARING, Brown
    BEARING, Brown
  • 3
    700-834963A02 PISTON ASSEMBLY
    Standard
    PISTON ASSEMBLY
    Standard
  • 3
    700-834963A04 PISTON ASSEMBLY
    .5mm Oversize
    PISTON ASSEMBLY
    .5mm Oversize
  • 3
    700-834963A02 PISTON ASSEMBLY
    Standard-Bare Piston
    PISTON ASSEMBLY
    Standard-Bare Piston
  • 3
    700-834963T04 PISTON ASSEMBLY
    .5mm Oversize-Bare Piston
    PISTON ASSEMBLY
    .5mm Oversize-Bare Piston
  • 4
    39-803678T05 RING SET, Piston
    (Standard) Services engine
    RING SET, Piston
    (Standard) Services engine
  • 4
    39-803678T05 RING SET, Piston
    (Standard) Services one piston
    RING SET, Piston
    (Standard) Services one piston
  • 4
    39-803678T06 RING SET, Piston
    (.5mm Oversize) Services engine
    RING SET, Piston
    (.5mm Oversize) Services engine
  • 5
    41-825713002 PIN, Piston
    PIN, Piston
  • 6
    53-16057 CLIP, Piston Pin
    CLIP, Piston Pin
  • 7
    600-8M0125694 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 8
    10-8035092 BOLT
    BOLT
  • 9
    28-825666001 KEY
    KEY
  • 10
    28-825666001 KEY, Drive Pulley
    KEY, Drive Pulley
  • 11
    26-855681001 SEAL, Oil
    SEAL, Oil
  • -
    27-835427A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
    POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139509 & Up
    POWERHEAD ASSEMBLY
    SN# 0R139509 & Up
